Product Core Brief

• Model: 176449-08
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500/72M Machinery Protection System
• Core Function: 4-channel monitor specifically designed to track piston rod position and drop in reciprocating compressors.
• Product Type: Piston Rod Position Monitor
• Key Specs: 4 Channels | Proximity Sensor Input | ±0.33% Accuracy
• Condition: New Surplus / OEM Original

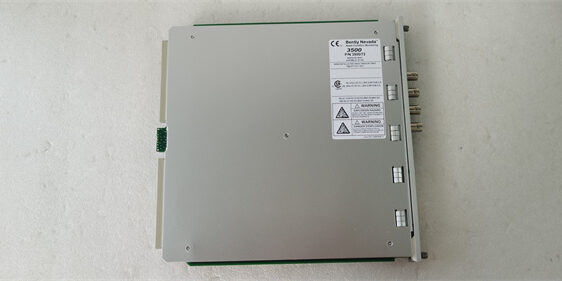

BENTLY 176449-08

Key Technical Specifications

• Module Type: Piston Rod Position Monitor
• Channel Count: 4 Independently Configurable Channels
• Sensor Compatibility: 1 to 4 Proximity Sensors per module
• Measurement Accuracy: Typical ±0.33%, Maximum ±1% (excluding filters)
• Sensor Power Supply: -24VDC (Stable output for connected sensors)
• Output Impedance: 510Ω (For signal transmission to recorders/displays)
• Operating Temperature: -30°C to +65°C (Standard); 0°C to +65°C (Isolation module)
• Storage Temperature: -40°C to +85°C
• Humidity Tolerance: Up to 95% (Non-condensing)
• Configuration: 3500 Rack Configuration Software

Product Introduction

Engineered specifically for reciprocating compressors, this Bently Nevada 176449-08 (3500/72M) serves as the critical safeguard against catastrophic piston rod failures. It continuously monitors rod position to detect dangerous conditions such as excessive displacement, deviation, or “rod drop” before they cause severe mechanical damage.

By accepting signals from up to four proximity sensors simultaneously, this module provides comprehensive tracking of multiple measurement points, ensuring there are no blind spots in your compressor’s protection scheme. It conditions weak sensor signals, compares them against user-programmable alarm setpoints, and seamlessly shares data with other 3500 modules via the backplane for complete machine health analysis.

QA & Testing SOP

Rod position monitors are the primary defense against compressor crosshead failures. We verify sensor power, signal conditioning, and logic.

1. Anti-Counterfeit & Visual Audit: We inspect the Bently Nevada silkscreen, verify the 176449-08 part number, and check the front panel proximity sensor connectors for bent pins or physical damage.
2. Backplane Enumeration Test: We install the module in an OEM 3500 test rack to verify it correctly enumerates and accepts configuration parameters via the 3500 Configuration Software.
3. Sensor Power & Signal Injection: We verify the module outputs a stable -24VDC to the sensor inputs, then inject simulated proximity signals to confirm the module accurately measures position and triggers alarms at the programmed setpoints.
4. Output Impedance Validation: We verify the 510Ω output impedance to ensure processed signals can be stably transmitted to secondary recorders or DCS inputs without significant attenuation.
5. ESD Safe Packaging: Precision analog front-ends are highly ESD sensitive. We pack in anti-static shielding bags with desiccant to prevent latent damage.

BENTLY 176449-08

Installation Pitfalls & Guide

❗ Sensor Gap Calibration: Proximity sensors for rod position must be gapped precisely according to the OEM compressor manual. An incorrect gap will result in false rod-drop alarms or, worse, a failure to detect an actual drop. Always verify the gap voltage before commissioning.

❗ Wiring for High Vibration: Reciprocating compressors generate extreme mechanical vibration. Ensure all proximity sensor cables are routed away from hot exhaust manifolds and secured with proper strain relief to prevent wire fatigue and intermittent signals.

❗ Alarm Setpoint Programming: Rod position alarms must be set based on the specific crosshead geometry of the compressor. Misconfigured setpoints can lead to nuisance trips during normal thermal expansion. Always use the 3500 Configuration Software to validate setpoints against the machine’s mechanical limits.

Replacement SOP:

1. Pre-Install: Document the current channel configuration, sensor gap voltages, and alarm setpoints; place the compressor in bypass/maintenance mode.
2. Removal: Power down the 3500 rack; disconnect proximity sensor and output wiring (label everything); remove mounting screws and extract the module.
3. Install: Slide the 176449-08 into the designated slot, ensure firm backplane seating, and secure mounting screws.
4. Power-On Test: Power up the rack, download the configuration, verify sensor gap voltages, and confirm DCS readings match expected values before removing bypass.

Technical FAQ

What is the difference between 176449-08 and 176449-09?
176449-08 is the 3500/72M Piston Rod Position Monitor, specifically designed for reciprocating compressors. 176449-09 is typically the 3500/70M variant, which serves a different monitoring function (often related to different compressor parameters or general purpose monitoring). Always match the exact part number for reciprocating compressor protection.

Can I use standard eddy current probes with this module?
Yes, this module is designed to work with standard Bently Nevada proximity probes and extension cables. However, ensure the probe sensitivity (e.g., 200 mV/mil or 7.87 mV/mm) matches the configuration settings in the 3500 software.

Does this module support hot-swapping?
While the 3500 system supports online maintenance, replacing a rod position monitor while the compressor is running will cause a temporary loss of protection for those channels. For critical reciprocating compressors, we recommend scheduling a brief maintenance window to safely bypass the protection before replacement.

Why is this sold as new surplus?
This unit was pulled from sealed OEM overstock or an unfulfilled project before installation. We test it on our OEM 3500 test racks to verify functionality, but we aren’t replacing internal components. You are getting unused factory silicon with original manufacturing tolerances at a fraction of the active OEM list price.
