Product Core Brief

• Model: CC-TUIO31
• Brand: Honeywell
• Series: Experion PKS / C-Series
• Core Function: Serves as the universal I/O backplane and field termination assembly for C-Series modules.
• Product Type: Universal I/O Backplane (IOTA)
• Key Specs: Universal I/O Base | 51454220-176 | C200/C300 Compatible
• Condition: New Original (New Surplus)

Product Introduction

The is a universal I/O backplane module designed for the Experion PKS C200 and C300 controllers. It acts as the IOTA (I/O Termination Assembly), providing the physical interface, signal conditioning, and field wiring termination for various C-Series I/O modules.

Unlike legacy backplanes, this unit integrates field power distribution and signal routing directly into the base. The supports hot-swappable I/O modules and features a unique tilted design to promote effective heat management in high-density control cabinets.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number against Honeywell’s traceability records. A visual inspection checks for bent pins on the C-Bus connector and ensures the DIN rail clip isn’t cracked.
2. Live Functional Test: We mount the unit in a live C300 test rack. We verify the backplane handshake and ensure the controller recognizes the without configuration errors.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field wiring terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is also verified.
4. Firmware Verification: We read the module’s internal firmware revision via the service port. We photograph the DIP switch settings to ensure they match factory defaults before shipping.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

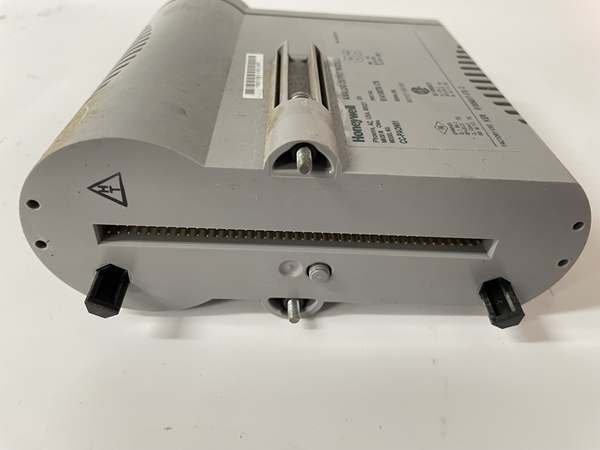

CC-TAON01

Replacement Pitfall Guide

Field replacements on safety systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new module might have a newer firmware revision than your existing CPU. The Experion controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. DIP Switch / Jumper Misconfiguration: The uses hardware addressing. If you pull the old card and forget to transfer the binary address switches to the new one, the CPU will report a missing module.
3. Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. Ensure all power connections are tight; a loose connection can cause intermittent brownouts that mimic module failure.
4. Power Supply Mismatch: Verify your external 24 VDC field power supply has at least 20% headroom over the total calculated load. This module draws current for its own internal monitoring circuits.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell CC- Rev A → CC- Rev B : Direct Replacement — Verify firmware compatibility with CPU.
• Honeywell CC-TUIO01 → CC- : Needs Adaptation — Different backplane architecture; requires logic re-validation.

Benchmarks

• Backplane Handshake: < 100 ms (from power-up to controller recognition)
• Signal Integrity: < 1% Total Harmonic Distortion (verified at full load)

Need the wiring diagram for the field termination? I can pull up the schematic for the shield grounding and commoning points.
