Product Core Brief
- Model: 51199929-100
- Brand: HONEYWELL
- Series: Experion C-Series / SPS5710
- Core Function: Supplies regulated 24 VDC power with FTE switch redundancy to C-Series control modules.
- Product Type: Redundant System Power Supply Module
- Key Specs: 24 VDC | Redundant | 8+1 Port FTE
- Condition: ⚠️ EOL — limited stock remaining
Product Introduction

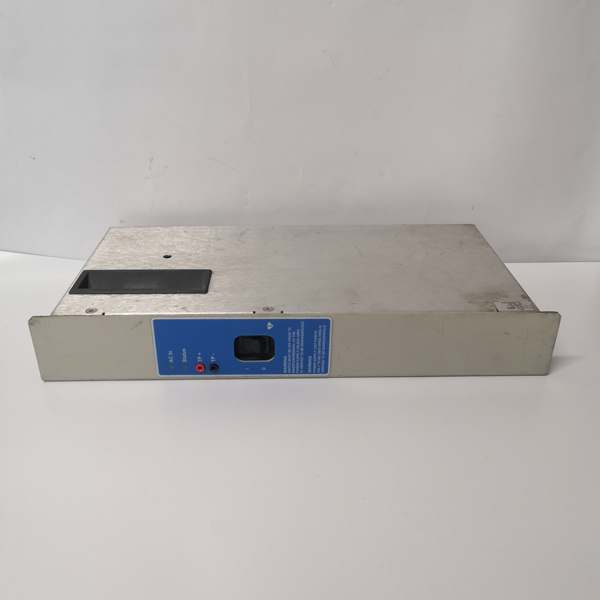

HONEYWELL 51199929-100 acts as a redundant power supply for C-Series DCS environments. It delivers stable 24 VDC while integrating an 8+1 port FTE switch for high-availability networks.
This module supports hot-swap operations and suppresses broadcast storms to protect controller performance. It features self-diagnostics with front-panel fault indication. Verify with OEM datasheet for exact current limits, as field configurations vary.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Voltage | 24 VDC |
| Switch Ports | 8+1 Port (FTE Switch) |
| Redundancy | Supported |
| Diagnostics | Power-On Self-Test, Fault LED |
| Fiber Optic Option | Single Mode (15 km), Multi Mode (2 km) |
| Network Priority | Uplink Control Supported |
| Series Compatibility | Experion C-Series |
| Application | DCS, SIS, ESD Systems |
| Mounting | Control Room Rack |
| Storm Suppression | Broadcast Storm Inhibition |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.

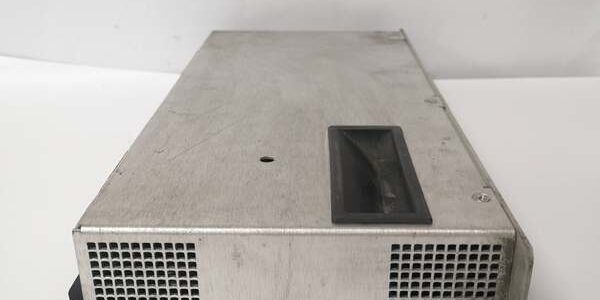

Honeywell 51199929-100
Compatibility Matrix & Benchmarks
- HONEYWELL 51199929-100 → HONEYWELL 51199929-100 : Direct — Identical replacement
- HONEYWELL 51199929-100 → HONEYWELL 51199929-100 REV.A : Direct — Revision A is typically a direct drop-in
- HONEYWELL 51199929-100 → HONEYWELL 51198651-100 : Needs Adaptation — Verify output voltage and FTE port count
- HONEYWELL 51199929-100 → HONEYWELL CC-PWRR01 : Needs Adaptation — Cross-reference C-Series power redundancy specs
- Power Failover: < 1 ms (Redundant supply switchover)
- Diagnostic Response: < 100 ms (Self-test fault detection)
