Product Core Brief
- Model: 05704-A-0144
- Brand: Honeywell
- Series: Experion PKS / ControlEdge
- Core Function: Monitors four independent catalytic bead sensors for combustible gas detection.
- Product Type: 4-Channel Catalytic Input Card
- Key Specs: 4x Catalytic Inputs | SIL 2 (IEC 61508) | HART 7 Diagnostics
- Condition: New Original (New Surplus)
Product Introduction

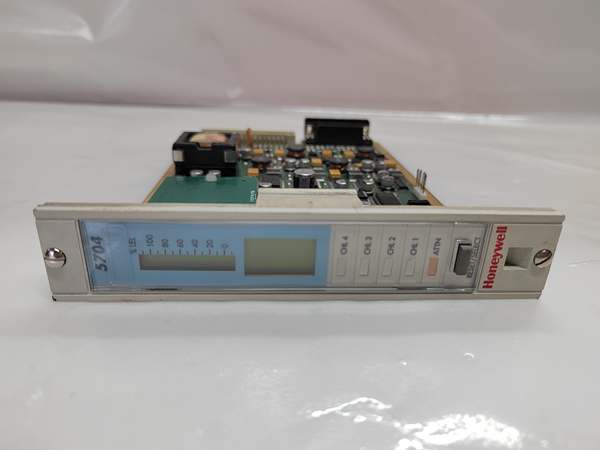

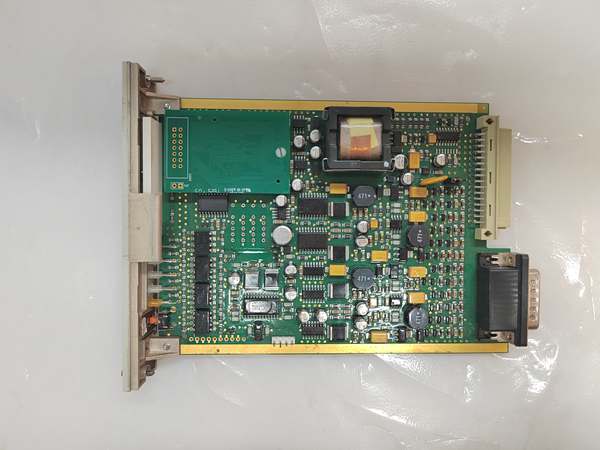

The Honeywell 05704-A-0144 is a four-channel catalytic input control card designed for the Experion DCS platform. It provides isolated monitoring for methane, propane, or hydrogen sensors without cross-talk interference in hazardous environments.
This module features built-in intrinsic safety barriers and HART 7 protocol support for live diagnostics. Unlike legacy cards requiring manual zeroing, the Honeywell 05704-A-0144 includes auto-zero calibration that saves significant maintenance time during shift changes or steam cleaning operations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 4 Independent Catalytic Inputs |
| Output Signal | 4-20 mA with Fault Signaling |
| Communication | HART 7 over 4-20 mA Loops |
| Safety Integrity Level | SIL 2 (IEC 61508) |
| Power Requirement | 24 VDC ±10% (1.2 A Max) |
| Operating Temp | -20 °C to +60 °C |
| Dimensions | 120 x 85 x 35 mm |
| Weight | 280 g |
| Certifications | ATEX Zone 1, UL 60079-0/11, RoHS |
| Calibration | Auto-Zero Supported |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against Honeywell’s traceability records. A visual inspection checks for corrosion on the DIN rail contacts and ensures the HART connector pins are straight.
- Live Functional Test: We mount the unit in a live Experion test rack. We inject a simulated catalytic bead signal and verify the 4-20 mA output scaling using a Fluke 754 process calibrator.
- Electrical Parameter Test: We perform a 500 V Megger test between the field input terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity to the DIN rail is verified.
- Firmware Verification: We read the module’s internal firmware revision via the HART interface. We photograph the DIP switch settings to ensure they match factory defaults before shipping.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on gas detection systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new Honeywell 05704-A-0144 might have a newer HART stack revision than your existing FCM. The Experion controller may flag a device type mismatch. Always check your system’s allowed firmware matrix before installing.
- DIP Switch / Jumper Misconfiguration: This module uses hardware addressing for channel grouping. If you pull the old card and forget to transfer the binary address switches, the DCS will report missing I/O points.
- Terminal / Cable Incompatibility: Inspect the shielded twisted-pair cabling before connecting. Catalytic bead sensors are low-level signals; a broken shield or ground loop will cause erratic readings that mimic gas alarms.
- Power Supply Mismatch: Verify your 24 VDC field power supply has at least 20% headroom. Four active catalytic sensors plus the card’s internal HART modem can draw significant current during calibration.
- ESD Damage: The HART communication chip is sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen cards fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- Honeywell 05704-A-0144 Rev A → 05704-A-0144 Rev B : Direct Replacement — Verify HART firmware compatibility with FCM.
- Honeywell 05701-A-0302 → 05704-A-0144 : Needs Adaptation — Single channel vs. Quad channel; requires wiring and logic re-validation.
Benchmarks
- Auto-Zero Time: < 20 s (per sensor, typical)
- False Alarm Reduction: ~70% (vs. legacy cards, field reported)
Need the HART device descriptor file for the Honeywell 05704-A-0144? I can pull up the DD file so your AMS or ControlEdge console recognizes the diagnostics immediately.
