Product Core Brief
- Model: FC-PSU-UNI2450U V1.0
- Brand: HONEYWELL
- Series: FSC / Experion Safety
- Core Function: Converts AC mains to regulated 24 V DC for safety system backplanes.
- Product Type: System Power Supply Module
- Key Specs: 50 A Output | 24 V DC | UL508 Listed
- Condition: ⚠️ EOL — limited stock remaining
Product Introduction
HONEYWELL FC- V1.0 delivers regulated 24 V DC power for FSC safety controllers. It accepts 115/230 VAC input and provides up to 50 A continuous output current.
This unit features built-in diagnostics for over-temperature and fan speed monitoring. Redundant operation requires two units with output voltage matching within 0.025 V. Verify with OEM datasheet for exact derating curves at elevated ambient temperatures.

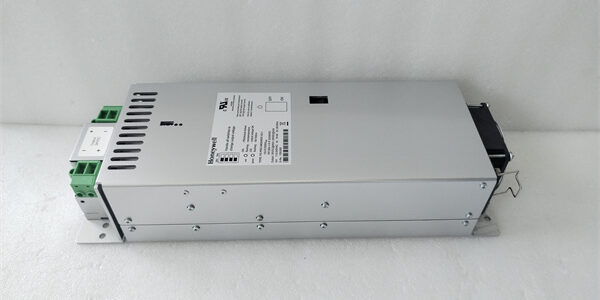

Honeywell FC-PSU-UNI2450U
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 115 / 230 VAC |
| Output Voltage | 24 V DC |
| Output Current | 50 A Continuous |
| Safety Standard | UL508 |
| Diagnostics | Temp & Fan Monitoring |
| Redundancy | Parallel Operation |
| Cooling | Integrated Fan |
| Series Compatibility | FSC / Experion Safety |
| Mounting | 19-Inch Rack |
| Efficiency | High (>90% Typical) |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- HONEYWELL FC- V1.0 → HONEYWELL FC- V1.0 : Direct — Identical replacement
- HONEYWELL FC- V1.0 → HONEYWELL FA- : Needs Adaptation — Verify output current and form factor
- HONEYWELL FC- V1.0 → HONEYWELL FC-PSU-UNI4825U : Incompatible — 48 V output vs 24 V output
- HONEYWELL FC- V1.0 → HONEYWELL FC-PSU-UNI6020U : Incompatible — Different voltage and current rating
- Power Conversion Efficiency: > 90% (Full 50 A Load)
- Diagnostic Response: < 100 ms (Over-temp or fan fault)
