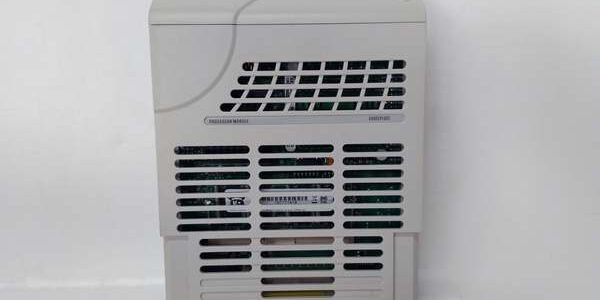

Product Core Brief
- Model: 5X00241G02
- Brand: WESTINGHOUSE (Emerson Ovation DCS platform)
- Series: Ovation main chassis HART-capable analog output module family
- Core Function: Convert digital DCS setpoints to isolated 4–20 mA analog signals for smart field positioners, with transparent HART pass-through for remote instrument calibration and diagnostics.
- Product Type: Single-slot hot-swappable main controller chassis analog output personality card
- Key Specs: 8 independent AO channels | Native HART pass-through | 1500 V channel-to-backplane isolation | Backward compatible drop-in replacement for 5X00241G01 ⚠️ EOL — limited surplus stock remaining
Product Introduction
The WESTINGHOUSE 5X00241G02 mounts inside standard Ovation main controller chassis to drive modulating smart valve and actuator field instruments over 4–20 mA loops. It does not require separate HART multiplexers to access instrument diagnostic data, cutting auxiliary cabinet hardware count.This unit upgrades the legacy 5X00241G01 by boosting isolation voltage from 1000 V to 1500 V for high-EMI turbine cabinet environments. OEM field data lists a 54,000 hour MTBF under steady 50 °C continuous cabinet runtime, matching top-tier Ovation analog I/O reliability metrics.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Chassis | Ovation OCR400, OCR1100 main controller racks; standard full-size I/O slot form factor |
| Output Channel Count | 8 fully independent 4–20 mA analog control channels |
| HART Functionality | Transparent HART pass-through for smart instrument calibration, no external multiplexer required |
| Maximum Loop Load Resistance | 750 Ω per channel for stable 4–20 mA current regulation |
| Full Module Update Latency | 10 ms simultaneous refresh across all 8 output channels |
| Galvanic Isolation Rating | 1500 Vrms per channel field circuit to DCS backplane logic |
| Hot Swap Compliance | Ovation certified hot-swap; core controller logic remains active during card exchange |
| Onboard Diagnostics | Per-channel open loop break detection, short-circuit overload, over/under range fault flagging |
| Module Operating Supply | 5 V DC chassis backplane logic supply; 400 mA typical steady-state draw |
| Status Indicators | Global Power OK, Chassis Comms Fault LED; individual channel status/fault LEDs on front face |
| Mechanical Dimensions | 185 mm L × 30 mm W × 110 mm D |
| Net Unit Weight | 230 g |
| Continuous Operating Ambient Temp | 0 °C to +60 °C full rated output accuracy; linear performance derate above 60 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Analog output transient surge clamping, backplane reverse polarity lockout, channel short-circuit auto-current limit |
| Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation control standard qualified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against Emerson Ovation OEM trace databases; inspect front LED segments for dead pixels, gold rack edge connectors for oxidation, PCB HART transceiver solder joints for microcracks. Photograph the edge connector pinout for main control cabinet wiring reference.
- Live Functional Test: Seat the unit into an OCR400 controller test chassis paired with adjustable resistive loop load banks and HART communicator simulators; run a continuous 24-hour cyclic 4–20 mA ramp test across all eight channels. Log loop current stability with a Fluke 115 digital multimeter for the full test duration.
- Electrical Parameter Test: Perform a 1500 V Megger insulation resistance test between each analog output field circuit and module ground; pass threshold set at >10 MΩ. Verify current regulation holds within ±0.05 mA across full 0–750 Ω loop resistance range.
- Firmware Verification: Read and record factory AO module firmware revision via Ovation controller engineering software; document default HART enable/disable register settings for customer site reference.
- Final QC & Packaging: Wipe gold edge connectors to remove surface oxidation; seal the unit inside an anti-static foam bag, affix a dated QC Pass label listing all completed test metrics before rigid shock-resistant carton packing.
Replacement Pitfall Guide
❗ Revision Firmware Mismatch Risk: Older Ovation controller firmware pre-v4.2 lack register mapping for this card’s enhanced HART diagnostic bits. Installing the unit generates unrecognized smart instrument fault alarm bits that trip plant interlocks. Always cross-check controller firmware release notes before swap-out.❗ Analog Cable Shield Ground Misconfiguration Risk: Unshielded 4–20 mA field wiring run parallel to high-current generator excitation cabling injects EMI noise that causes valve hunting and corrupts HART digital telemetry. Use factory shielded twisted-pair analog assemblies, terminate shield ground at only the main cabinet terminal block end.❗ Chassis Slot Partial Insertion Risk: Uneven seating creates high-resistance edge contact points that distort analog output values and trigger random loop break fault alarms during critical turbine load transients. Push the card fully into the slot and engage both blue front latches to lock flush against the backplane.❗ Main Chassis Power Headroom Miscalculation Risk: A fully populated OCR400 chassis with two redundant of these modules draws 1.6 A total from the cabinet VM310 24 V auxiliary supply. Calculate total load with a mandatory 20% power margin to avoid voltage sag during peak actuator modulation cycles.❗ Uncontrolled ESD Damage Risk: Dry central control room air generates static charge buildup. Touch a grounded anti-static mat for three full seconds before handling the gold edge connector; ungrounded contact destroys the low-tolerance HART signal conditioning ASIC.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 5X00241G01 legacy non-HART analog output module → 5X00241G02 : Direct — backward drop-in replacement, no chassis wiring or rack modifications required
- Ovation OCR400 / OCR1100 main controller chassis → 5X00241G02 : Direct — factory edge pinout natively matches chassis 5 V logic supply and proprietary controller bus routing
- VM310 24 V cabinet auxiliary power supply → 5X00241G02 : Direct — regulated 24 V output falls within the chassis’ operating window to power field loop excitation logic
- 5X00226G02 IOIC remote communication module → 5X00241G02 : Direct — IOIC forwards main chassis analog setpoint data to distributed remote I/O subracks over redundant Ethernet backbone
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 5X00241G02 : Needs Adaptation — wire chassis analog deviation fault dry contacts to PLC digital inputs, map individual valve setpoint registers via Ovation Modbus TCP polling
