Product Core Brief

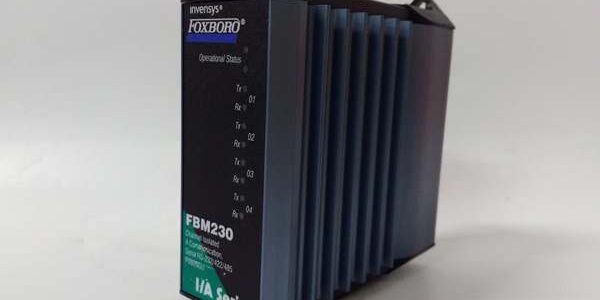

- Model: FBM230 P0926GU
- Brand: FOXBORO (Schneider Electric EcoStruxure Foxboro)
- Series: I/A Series & Foxboro Evo FDSI (Field Device System Integrator) FBM family
- Core Function: Act as serial Modbus master gateway translating third-party serial device data into native DCI control blocks for FCP controllers
- Product Type: DIN-rail rack-mount hot-swappable multi-serial communication FBM module
- Key Specs: Four independent serial ports | Modbus RTU/ASCII | 64 max RS-485 slaves | ⚠️ EOL — limited stock remaining, Condition: New Surplus Original
Product Introduction
FOXBORO is a four-port serial FDSI gateway built exclusively for I/A Series DCS to connect serial-based flow computers, analyzers, and PLC slaves to the control backplaneparesource.schneider-electric.com. Each port uses software-selectable RS-232, RS-422, or RS-485 physical layers without hardware jumpers.This unit differs from Ethernet-based FBM232 by focusing solely on serial trunk integration, with OEM measured MTBF of 288,000 hours at 40 °C cabinet ambient. It holds a 2000 DCI block limit to handle large register mapping for multi-slave serial trunks.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Serial Port Count | 4 fully isolated independent serial communication ports |
| Per-Port Software Config | RS-232, RS-422, RS-485 selectable via workstation software |
| Supported Serial Protocols | Modbus RTU, Modbus ASCII downloadable FDSI drivers |
| Maximum Field Devices | 64 RS-485 multi-drop slaves; 4 direct RS-232/422 point-to-point units |
| DCI Distributed Control Block Capacity | 2000 input/output mapping registers total |
| Backplane Fieldbus | Redundant 2 Mbps proprietary I/A Series module bus |
| Module Power Draw | 24 V DC +5/-10 %, max 7 W continuous power consumption |
| Serial Baud Rate Range | 300 bps up to 115200 bps per port, independent tuning |
| Isolation Rating | 1000 VAC galvanic isolation between serial ports and DCS backplane |
| Operating Temperature Range | -20 °C to +70 °C operational; -40 °C to +85 °C storage |
| Environmental Coating | ISA S71.04 G3 full conformal PCB coating for corrosive plant atmospheres |
| Hazardous Certifications | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting) |
| Host Controller Compatibility | FCP270, FCP280 Field Control Processors |
| Diagnostic Hardware | Front-panel Tx/Rx LED indicators per serial port, watchdog fault timer |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers to OEM production batch logs; inspect aluminum heat sink fins, serial port terminal header, and gold backplane connectors for scratches or oxidation. Reject units with cracked PCB conformal coating.
- Live Functional Test: Seat the unit on a certified FBM modular baseplate, attach Modbus serial simulators to all four ports, run a 26-hour continuous polling load cycle. Log serial throughput and confirm redundant 2 Mbps Fieldbus handshake to an FCP280 controller.
- Electrical Parameter Test: Use a 500 V Megger to test serial port-to-backplane insulation resistance (minimum pass threshold 10 MΩ); verify chassis ground continuity to DIN rail mounting lugs.
- Firmware Verification: Pull embedded FDSI firmware revision via I/A engineering workstation; photograph front serial LED layout and factory default port baud rate settings for post-delivery reference.
- Final QC & Packaging: Purge PCB and heat sink surfaces with dry nitrogen to remove particulate buildup; seal the module in anti-static vacuum bag, apply QC Passed sticker stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: Older FCP270 controller firmware revisions cannot parse extended Modbus register mapping loaded on the module. Confirm controller firmware rev before ordering spare hardware — site DCS upgrade schedules often lag spare component stock.❗ DIP Switch / Jumper Misconfiguration: Factory default backplane jumpers enable single Fieldbus path only. The second terminal header on the modular base controls redundant Fieldbus failover; misalignment breaks bumpless switchover during backplane cable faults.❗ Terminal / Cable Incompatibility: Unshielded twisted pair serial wiring introduces heavy EMI noise near MCC motor control rooms. Deploy shielded RS-485 cable with single-point chassis ground at the module end only; 120 Ω termination resistors required for trunks over 300 m.❗ Power Supply Mismatch: Calculate total rack DC draw with 20% headroom. Six of these modules on one FBM rack pull 4.2 A combined; undersized rack power supplies trigger intermittent serial port timeout faults under peak Modbus polling loads.❗ ESD Damage: Always deploy an anti-static mat in low-humidity winter cabinet environments. Static discharge to the exposed serial port transceiver chips creates unreported intermittent communication drops with no visible exterior damage.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- FCP280 → : Direct drop-in replacement — no backplane wiring edits required
- FCP270 → : Direct drop-in replacement — requires minimum controller firmware v11.2
- FBM232 P0926GW Ethernet Gateway → : Needs Adaptation — Ethernet logic must be reconfigured to serial Modbus trunk mapping in workstation DCI blocks
- FBM233 P0926GX Redundant Ethernet Gateway → : Incompatible — redundant Ethernet hardware vs single serial gateway function split
- DeltaV M-Series Carrier → : Incompatible — proprietary 2 Mbps I/A Fieldbus backplane pinout mismatch
- RH916TA FBM242 Discrete Output → : Incompatible — discrete switching vs serial communication hardware function split
Benchmarks
- DCI mapping scan cycle: 190 ms (simulated full load, 64 Modbus RTU slave register blocks active)
- Comms throughput: 115200 bps (max per serial port Modbus RTU trunk)
- Redundant Fieldbus failover latency: < 14 ms automatic switchover between dual backplane paths
