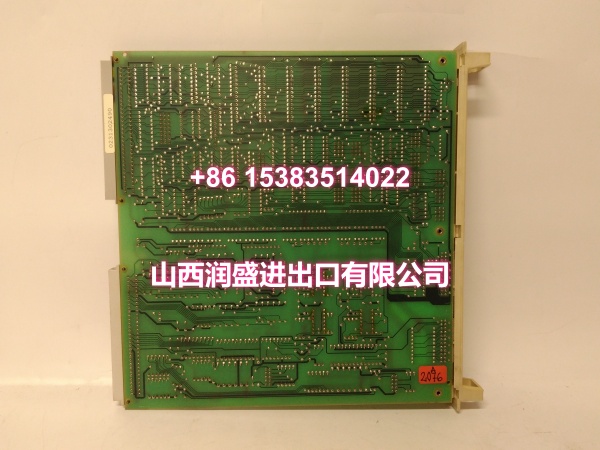

Product Core Brief
- Model: DSDP150
- Brand: ABB
- Series: ABB Advant Master / S100 Series
- Core Function: Pulse encoder input unit for precise counting and position feedback from rotary/linear encoders in industrial automation systems.
- Product Type: Pulse Encoder Input Unit
- Key Specs: 4 Encoder Channels | TTL/HTL/RS422 Compatible | 500 kHz Max Pulse Frequency per Channel | 32-bit Counting Resolution | Channel-to-Channel Isolation | 24VDC Power Supply
- Note: Condition: New Original (New Surplus). Origin: Sweden.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 57160001-GF |
| Device Model | |
| Device Type | Pulse Encoder Input Unit |
| Series | ABB Advant Master / S100 Series |
| Function | Precise pulse counting and position feedback |
| Number of Channels | 4 independent encoder channels |
| Input Types | TTL, HTL, RS422 compatible |
| Maximum Pulse Frequency | 500 kHz per channel |
| Counting Resolution | Up to 32-bit |
| Isolation | Channel-to-channel and channel-to-backplane isolated |
| Power Supply | 24VDC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 5–95% RH, non-condensing |
| Mounting | Backplane mount in ABB DS rack |
| LED Indicators | Status and error signaling per channel |
| Approvals | CE certified, UL listed |
| Typical Applications | Motion control, CNC machinery, robotics, conveyor speed monitoring, position feedback |
| Origin | Sweden |
| Condition | New Original (New Surplus) |
Product Introduction

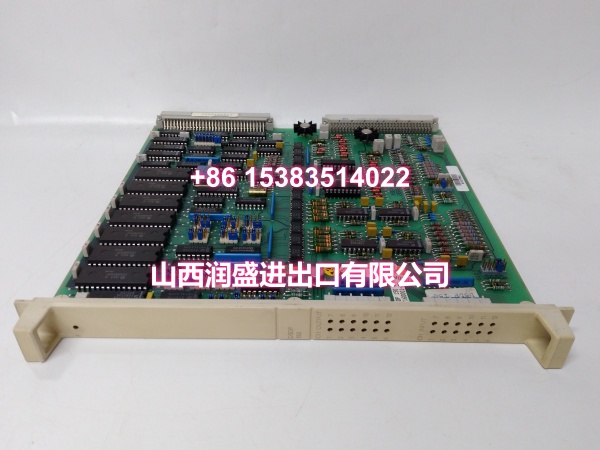

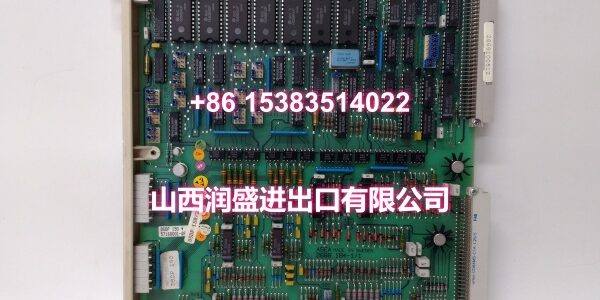

The ABB DSDP150 (order code 57160001-GF) is a pulse encoder input unit designed for ABB’s Advant Master and S100 distributed control systems. It serves as a specialized interface module for connecting pulse encoders to the control system, enabling precise position and velocity measurements in industrial automation applications.
In industrial environments where accurate motion feedback is critical, the DSDP150 delivers high-speed signal processing for encoder inputs. The module supports 4 independent encoder channels compatible with TTL, HTL, and RS422 input types, covering the voltage requirements of most industrial pulse encoders without requiring additional signal conversion equipment. Each channel supports a maximum pulse frequency of 500 kHz with up to 32-bit counting resolution, ensuring that high-speed encoder signals are captured accurately without missed counts.
The DSDP150 features channel-to-channel and channel-to-backplane galvanic isolation, protecting the control system from electrical noise, ground loops, and voltage transients that can corrupt encoder signals or damage the module. Per-channel LED indicators provide immediate visual feedback on input status and error conditions, enabling rapid fault identification during commissioning and troubleshooting.
As an “intelligent” S100 I/O module, the DSDP150 performs signal processing and counting operations locally on the board rather than relying on the main controller’s CPU. This distributed processing architecture improves overall system real-time performance and ensures that high-frequency pulse signals are not missed during controller scan cycles.
For engineers maintaining legacy Advant Master or S100 installations, the DSDP150 is a direct drop-in replacement for failed or end-of-life encoder input modules. Its standardized backplane form factor ensures compatibility with existing S100 rack configurations, avoiding costly mechanical rework or system redesign.
QA & Testing SOP
Every unit goes through a structured verification process before shipment:
- Visual Inspection: Check the module housing for cracks, corrosion on the backplane connector pins, and physical damage to the PCB. Verify that LED indicator lenses are intact and undamaged.
- Connector Pin Verification: Inspect the backplane connector pins for straightness, corrosion, or bending. Bent pins cause poor contact with the backplane, leading to intermittent channel failures or complete module communication loss.
- Power-On Self-Test: Apply 24VDC power and verify that the module’s status LED indicates normal operation. A red or flashing LED indicates a hardware fault or configuration mismatch.
- Channel Signal Test: Using a pulse signal generator, apply test pulses at various frequencies to each of the 4 encoder channels to verify that the module accurately counts input pulses. Compare the module’s reported count against the known input to verify counting accuracy across the full frequency range.
- Isolation Verification: Where test infrastructure allows, verify that galvanic isolation between channels and between channels and backplane is intact, ensuring no cross-talk or leakage between channels.
- Anti-Counterfeit & Packaging: Verify authenticity markings on the module body and PCB. Each unit is shipped in anti-static protective packaging with desiccant to prevent moisture absorption and connector oxidation during transit.
Installation Pitfalls & Guide
Installing or replacing a pulse encoder input module requires careful attention to signal wiring and grounding.
❗ Power-Down Before Installation: Always disconnect power to the rack or I/O section before removing or inserting the DSDP150 module. Encoder input modules should be replaced with power off to prevent transient spikes from damaging the module or connected field devices.
❗ Shielded Cable Requirement: Encoder signal wiring must use shielded twisted-pair cables to prevent electromagnetic interference from corrupting pulse signals. Route encoder cables separately from power cables and motor cables, maintaining at least 30cm distance. Avoid running encoder cables near VFD output cables or high-current switching devices.
❗ Shield Grounding: Ground the cable shield at the control cabinet end only. Grounding at both ends creates ground loops that can introduce noise into the encoder signals, causing false counts or position errors. The DSDP150’s channel-to-channel isolation helps mitigate ground potential differences, but proper single-point grounding is still essential.
❗ Input Type Matching: Verify that the encoder output type (TTL, HTL, or RS422) is compatible with the DSDP150’s input specifications. Mismatched voltage levels can cause signal degradation or damage the module’s input circuitry. HTL encoders typically output higher voltage levels than TTL and may require different wiring configurations.
❗ Maximum Frequency Verification: Verify that the encoder’s maximum output frequency does not exceed the DSDP150’s 500 kHz per channel limit. Exceeding the maximum frequency can cause missed counts and inaccurate position or speed readings.
4-Step Replacement Guide:
- Pre-install: Document the existing encoder channel assignments, wiring configuration, and counting parameters. Back up the DCS project. Verify the replacement module’s part number (57160001-GF) matches the original. Prepare anti-static protection and tools.
- Removal: Disconnect power to the I/O rack. Wear an anti-static wrist strap. Disconnect all encoder signal cables from the terminal block and label each cable with its channel number. Loosen the module retention screws. Gently pull the module straight out of the backplane slot. Inspect the backplane connector for damage.
- Install: Align the new DSDP150’s connector with the backplane slot. Push firmly and evenly until fully seated. Tighten retention screws. Reconnect encoder signal cables to the correct terminals according to the documented channel assignments. Verify that all connections are secure and properly torqued. Ensure shielded cables are grounded at the cabinet end only.
- Power-on Test: Apply power to the rack. Verify that the module’s status LED indicates normal operation. Enter the DCS diagnostic screen and confirm that all 4 encoder channels are recognized with no fault codes. Manually rotate or move each connected encoder and verify that the module reports correct position and direction changes. Monitor for several minutes to confirm stable operation.
Technical FAQ
1. What’s the difference between the DSDP150 and the DSDP140A? Both are pulse input modules for ABB’s Advant Master / S100 systems, but they serve different purposes. The DSDP140A is a general-purpose counter board for counting pulse signals from flow meters, energy meters, and production counters. The DSDP150 is specifically designed as a pulse encoder input unit for motion control applications, supporting quadrature encoder inputs (A, B, and STROBE signals) for precise position and velocity feedback. The DSDP150 supports higher pulse frequencies and encoder-specific signal types (TTL, HTL, RS422) that the DSDP140A does not.
2. What encoder types are compatible with the DSDP150? The DSDP150 supports TTL (Transistor-Transistor Logic), HTL (High-level Transistor Logic), and RS422 compatible encoder outputs. TTL encoders typically operate at 5V, HTL encoders at 12–24V, and RS422 encoders use differential signaling for noise immunity in electrically noisy environments. Verify your encoder’s output type and voltage level before connecting to the DSDP150.
3. Can the DSDP150 be used with ABB’s newer AC 800M or 800xA systems? The DSDP150 is designed for ABB’s Advant Master and S100 series systems. It is not directly compatible with newer platforms like AC 800M or 800xA, which use different backplane architectures and I/O module form factors (such as the S800 I/O system). If you’re migrating to a newer system, you’ll need to use the corresponding encoder input modules designed for that platform.
4. What does “channel-to-channel and channel-to-backplane isolation” mean? Galvanic isolation means there is no direct electrical connection between encoder channels or between the channels and the backplane. This isolation protects the control system from voltage transients, ground loops, and electrical noise that can corrupt encoder signals or damage the module. It also allows encoders operating at different ground potentials to be connected to the same module without interference.
5. What’s the difference between New Surplus and Refurbished for encoder input modules? We supply this unit as New Original (New Surplus)—unused, original factory stock. This comes with a standard 12-month warranty. Refurbished encoder input modules carry risks including degraded input circuitry from prior overvoltage events, latent channel failures that may only manifest at high pulse frequencies, and undocumented firmware version mismatches. For a module that directly affects motion control accuracy and process data integrity, new surplus is the safer choice.
