Product Core Brief

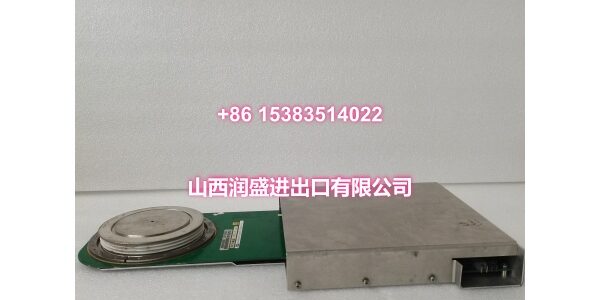

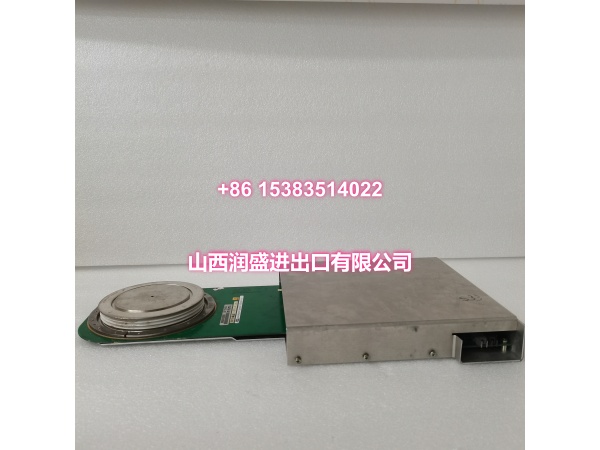

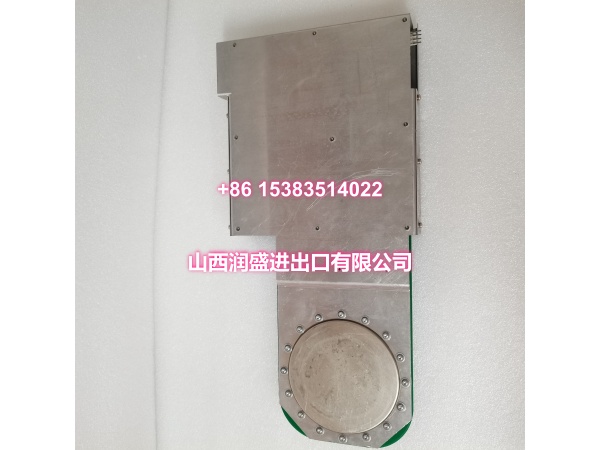

- Model: 5SHY35L4503
- Brand: ABB
- Series: ABB 5SHY Asymmetric IGCT Series
- Core Function: High-power asymmetric integrated gate commutated thyristor module for medium-to-high voltage energy conversion in industrial drives, HVDC, and grid stabilization systems.
- Product Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT) Module
- Key Specs: 4500V Voltage Class | Asymmetric Structure (no reverse blocking) | Hard-Drive Gate Capability | Snubberless Turn-Off | Low Conduction & Switching Losses
- Note: Condition: New Original (New Surplus). Origin: Sweden/Switzerland.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 3BHB004693R0001 |
| Device Model | 5SHY35L4503 |
| Device Type | Asymmetric Integrated Gate-Commutated Thyristor (IGCT) |
| Series | ABB 5SHY Asymmetric IGCT Series |
| Rated Voltage (VDRM) | 4500V |
| Internal Structure | Asymmetric IGCT (no reverse blocking capability, requires external anti-parallel diode for bidirectional current flow) |
| Gate Interface | Low-inductance gate connection for hard-drive gate driver |
| Switching Frequency | Up to ~1kHz (typical operating range 500Hz) |
| Surge Current Capability | High non-repetitive surge current rating for fault ride-through |
| Operating Junction Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +150°C |
| Thermal Interface | Press-pack / hockey-puck package with double-sided cooling compatibility |
| Mounting Method | Press-fit into converter stack with clamping force |
| Typical Applications | Medium-voltage drives (ACS6000), HVDC transmission, STATCOM, SVC, large industrial inverters |
| Origin | Sweden/Switzerland |
| Condition | New Original (New Surplus) |
Product Introduction
The ABB 5SHY35L4503 (order code 3BHB004693R0001) is a high-power asymmetric integrated gate-commutated thyristor (IGCT) module from ABB’s 5SHY series. Unlike reverse-conducting IGCTs (5SHX series) that integrate an anti-parallel diode, the 5SHY asymmetric IGCT has no reverse blocking capability and is designed for applications where an external anti-parallel diode is used or where current flows in only one direction. This asymmetric structure allows for optimized silicon utilization and lower conduction losses compared to symmetric designs, making it ideal for high-efficiency, high-power conversion systems.
With a 4500V voltage class, the 5SHY35L4503 is designed for megawatt-level power conversion in medium-to-high voltage drive systems such as the ABB ACS6000, as well as HVDC transmission, STATCOM reactive power compensation, SVC static var systems, and large industrial inverters for mining, oil & gas, and metals processing. The low-inductance gate connection enables hard-drive gate control, providing fast, deterministic turn-off without the tail-current losses associated with conventional GTOs.
The IGCT architecture delivers significantly lower conduction and switching losses compared to conventional GTO technology—dynamic losses are reduced by approximately 50%—while maintaining the high-voltage blocking capability required for medium-voltage grid applications. The device features a fail-short characteristic, meaning it defaults to a short-circuit failure mode rather than open-circuit, preventing catastrophic cascading failures in series-connected configurations.
For engineers maintaining or upgrading legacy high-power installations, this module is a direct drop-in replacement for failed or end-of-life IGCTs in ABB converter stacks. The Swedish/Swiss-origin press-pack construction ensures compatibility with existing clamping hardware and heat sink interfaces, avoiding costly mechanical rework.
QA & Testing SOP
Every unit goes through a structured verification process before shipment:
- Visual Inspection: Check the press-pack housing for cracks, corrosion on the anode/cathode/gate contact surfaces, and physical damage to the ceramic insulation. Verify that the gate contact pin is straight and undamaged.
- Contact Surface Verification: Inspect the anode and cathode contact surfaces for flatness, pitting, or oxidation. Surface imperfections cause uneven current distribution and localized hot spots under high-current operation, leading to premature thermal runaway.
- Gate-Cathode Resistance Test: Using a multimeter, verify the gate-cathode junction resistance is within the expected range per ABB specifications. An open or shorted gate junction indicates internal bond wire failure.
- Blocking Voltage Test (Leakage Current): Where test infrastructure allows, apply rated forward blocking voltage (4500V class) and measure leakage current. Note: As an asymmetric device, reverse blocking voltage testing is not applicable. Excessive forward leakage indicates degraded junction integrity and reduced voltage margin.
- Trigger Verification: Apply a gate trigger pulse and verify the device turns on correctly. This confirms the gate-cathode junction and internal trigger structure are functional.
- Anti-Counterfeit & Packaging: Verify authenticity markings on the device body. Each unit is shipped in protective packaging with desiccant to prevent moisture absorption and contact surface oxidation during transit.
Installation Pitfalls & Guide
Replacing a press-pack IGCT is fundamentally different from swapping a PCB-mounted module—mechanical precision is as critical as electrical correctness.
❗ Clamping Force Specification: The press-pack IGCT requires a specific clamping force to ensure low thermal and electrical contact resistance. Under-clamping causes high contact resistance, leading to localized heating and device failure. Over-clamping can crack the ceramic housing or damage the silicon die. Always use a calibrated torque wrench and follow ABB’s specified clamping force/torque sequence for the specific device size.
❗ Heat Sink Surface Preparation: The heat sink mating surface must be clean, flat, and free of oxidation. Apply a thin, even layer of thermal interface compound (silicone grease or phase-change material) before installation. Air gaps between the device and heat sink create thermal bottlenecks that cause junction temperature to exceed the 125°C limit under load.
❗ Gate Wiring Inductance: The low-inductance gate connection is critical to IGCT performance. Use the manufacturer-specified gate lead length and routing. Excessive gate lead inductance slows turn-off, increases switching losses, and can cause destructive voltage overshoot. Never substitute generic wire for the specified gate connection hardware.
❗ Asymmetric Device Consideration: The 5SHY35L4503 is an asymmetric IGCT with no reverse blocking capability. Ensure the converter topology includes an external anti-parallel diode if bidirectional current flow is required. Do not substitute an asymmetric IGCT for a reverse-conducting (5SHX series) or reverse-blocking device without verifying the converter circuit design.
❗ Snubber Circuit Verification: While IGCTs are designed for snubberless operation in many applications, some converter topologies still use RC snubbers across the device. Verify that snubber components (if present) are within specification before energizing the converter—a failed snubber capacitor or resistor can cause destructive dv/dt stress on the replacement IGCT.
4-Step Replacement Guide:
- Pre-install: Document the clamping force specification, gate wiring configuration, and snubber circuit values from the existing converter documentation. Verify the heat sink surface is clean and flat. Back up the drive/converter control parameters.
- Removal: Disconnect all power and verify zero voltage on the DC bus. Discharge all capacitors. Loosen the clamping mechanism in the specified sequence (typically a cross-pattern) to avoid uneven stress. Remove the old device and clean the heat sink surface thoroughly.
- Install: Apply thermal interface compound to the heat sink surface. Position the new IGCT with correct anode/cathode/gate orientation. Tighten the clamping mechanism in the specified sequence to the specified torque/force. Connect the gate wiring with the specified low-inductance hardware.
- Power-on Test: Apply control power first and verify gate drive signals are present and correct at the device terminals. Apply main power at reduced voltage if possible. Monitor device temperature and gate drive waveforms during initial operation. Verify normal switching behavior before returning to full load.
Technical FAQ
1. What’s the difference between asymmetric (5SHY) and reverse-conducting (5SHX) IGCTs? The key difference is in the internal structure. Asymmetric IGCTs (5SHY series) have no reverse blocking capability—they can only block voltage in the forward direction. This allows for optimized silicon design with lower conduction losses, but requires an external anti-parallel diode if bidirectional current flow is needed. Reverse-conducting IGCTs (5SHX series) integrate both the switching element and an anti-parallel diode in a single package, simplifying converter design at the cost of slightly higher conduction losses.
2. What does “asymmetric” mean for this device? An asymmetric IGCT can block voltage in the forward direction but cannot block reverse voltage. When reverse voltage is applied, the device conducts like a diode. This is suitable for applications where an external anti-parallel diode is already present in the converter topology, or where current flows in only one direction. Do not use an asymmetric IGCT in a circuit that requires reverse voltage blocking without an external diode.
3. Can I substitute a different IGCT or GTO for the 5SHY35L4503? IGCTs and GTOs are not directly interchangeable without verifying voltage rating, current rating, gate drive requirements, mechanical dimensions, clamping force specifications, and device type (asymmetric vs. reverse-conducting vs. reverse-blocking). Even within the ABB 5SHY series, different suffixes indicate different voltage/current ratings. Always match the exact part number or consult ABB’s cross-reference documentation before substitution.
4. What converter systems use the 5SHY35L4503? The 5SHY35L4503 has been deployed in medium-to-high voltage drive systems such as the ABB ACS6000, as well as HVDC transmission converters, STATCOM reactive power compensation systems, SVC static var systems, and large industrial inverters for mining, oil & gas, and metals processing applications.
5. What’s the difference between New Surplus and Refurbished for press-pack IGCTs? We supply this unit as New Original (New Surplus)—unused, original factory stock. This comes with a standard 12-month warranty. Refurbished press-pack IGCTs carry significant risks including degraded silicon junctions from previous overvoltage events, damaged contact surfaces from previous clamping cycles, and undocumented gate junction degradation. Press-pack devices are particularly sensitive to contact surface condition—refurbished units may have microscopic surface damage that causes thermal runaway under high-current operation. Refurbished units typically come with 30-90 day limited warranties that don’t cover latent thermal failures.
