Product Core Brief

• Model: 3BHB004027R0101 (IGCT Gate Unit)
• Brand: ABB
• Series: Medium-Voltage Drive Components
• Integration Role: Provides gate drive and protection control for IGCT devices in ABB medium-voltage drive power stacks.
• Product Type: IGCT Gate Driver Module
• Key Specs: Fiber-optic trigger/feedback isolation | 24VDC control supply | Integrated fault protection logic
• Note: Condition: New Original (New Surplus)

Key Technical Specifications

• Product Type: IGCT Gate Driver Unit
• Brand: ABB
• Model Number: 3BHB004027R0101
• Function: Gate driver for IGCT devices in medium-voltage drives and converter stacks
• Control Supply Voltage: 24 VDC (isolated internally for gate drive circuits)
• Signal Interfaces: Fiber-optic trigger and feedback links; hardware fault/interlock signals (isolated)
• Communication: Optical links to converter control; local status indicators
• Operating Temperature: 0 to 55 °C (cabinet-mounted drive electronics)
• Typical Device Pairing: ABB IGCTs (e.g., 4.5 kV class, 5SHY series) in MV drive stacks
• Construction: Conformal-coated PCB; industrial connectors for cabinet installation
• Compliance: CE; RoHS; manufacturer quality system typically ISO 9001
• Form Factor: Power-stack mounted module; fixed with captive screws and dedicated harnessing

Product Introduction

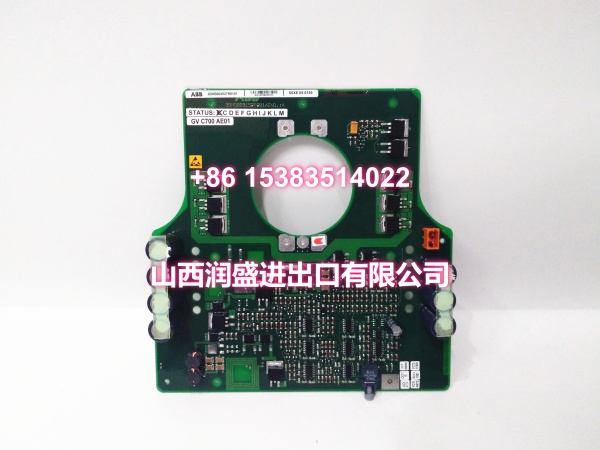

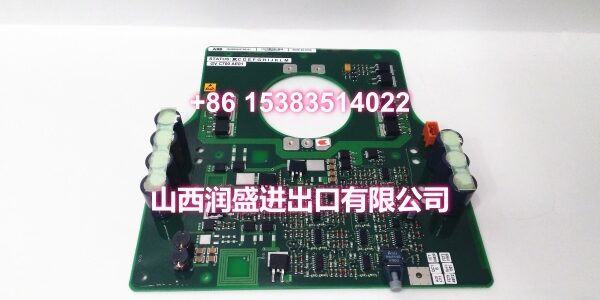

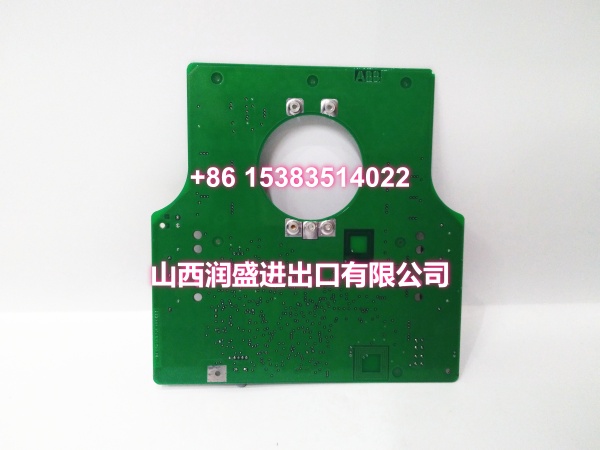

The ABB 3BHB004027R0101 is an IGCT gate driver unit designed for medium-voltage drive platforms. It delivers the high-current, fast-rise gate pulses that IGCT devices require for low-loss, reliable turn-off, while providing galvanic isolation between the low-voltage control side and the high-energy power stack.

Integrators rely on this module for its fiber-optic isolation and built-in protection logic, which are critical for maintaining clean timing and preventing fault propagation in MV converter stacks. The unit operates on a 24 VDC control supply and is typically paired with ABB 4.5 kV-class IGCTs (such as the 5SHY series) in compressor, pump, and test bench applications.

Wiring & Backplane Integration Notes

• Fiber-Optic Connections: The trigger and feedback signals run over optical links. Verify fiber type and connector polarity before mating — reversed fibers will prevent gate firing and can trigger a drive fault on startup.
• Control Power: The unit draws from a 24 VDC isolated supply. Confirm your cabinet’s 24 VDC bus can handle the inrush current during stack energization. A weak or shared supply can cause intermittent gate driver resets.
• Grounding & Isolation: The gate driver is internally isolated from the power stack, but the module chassis must be bonded to the cabinet ground per ABB’s installation manual. Ground loops between the controller and the drive stack can inject noise into the optical receiver.
• Mechanical Mounting: The module mounts directly to the power stack with captive screws. Do not overtighten — the PCB is conformal-coated but mechanically sensitive. Verify the mating connector harness is fully seated before applying control power.
• Compatibility: This unit is typically paired with ABB 4.5 kV-class IGCTs (e.g., 5SHY series). Always cross-reference the gate driver part number against your specific IGCT type and drive platform revision before procurement.

Integrator’s FAQ

Can I hot-swap this gate driver in a live MV drive stack? No. Medium-voltage drive stacks must be fully de-energized, locked out, and verified dead before any gate driver replacement. The gate driver sits directly on the power stack and interfaces with high-energy IGCTs — attempting a live swap risks catastrophic device failure, arc flash, and personnel injury. Always follow your plant’s MV lockout/tagout procedure and discharge the DC link capacitors before touching the module.

Is this module still available, or is there a direct successor? The 3BHB004027R0101 remains available through surplus and distribution channels. ABB has not published a widely documented direct successor for this specific gate driver variant. If you are migrating to a newer ABB MV drive platform (such as ACS6000 or ACS5800), consult ABB’s migration documentation for the equivalent gate driver part number in the target system.

Will I lose configuration or calibration data when replacing this unit? Gate driver modules of this type typically do not store user configuration — they are hardware-level interface units. The drive control parameters reside in the converter controller, not on the gate driver PCB. However, some gate driver variants may carry factory-set calibration or firmware revision data. Before swapping, record the label information (firmware/revision codes) from the old unit and verify it matches the replacement. A mismatch can cause gate timing errors or drive trip faults.

What warranty do you offer on New Surplus parts? We provide a full 12-month warranty on all New Original / New Surplus units. This is fundamentally different from refurbished MV drive components, which often carry 30-90 day warranties and come with unknown thermal cycling history, aged gate driver capacitors, and degraded optical components. In a medium-voltage application, a gate driver failure can cascade into a full IGCT destruction event — the cost of a single unplanned outage dwarfs any upfront savings from a used part.

Why is your pricing lower than OEM direct but higher than used parts? Our pricing reflects New Original / New Surplus inventory sourced from factory overstock and authorized distributors. You pay less than OEM list because these are surplus units, not current production. You pay more than used/refurbished because the part has zero operating hours, no thermal aging on the gate driver capacitors, and no degradation of the fiber-optic transceivers. For critical MV drive assets, the reliability difference between new surplus and refurbished is not marginal — it’s the difference between planned maintenance and an emergency shutdown.
