Product Core Brief

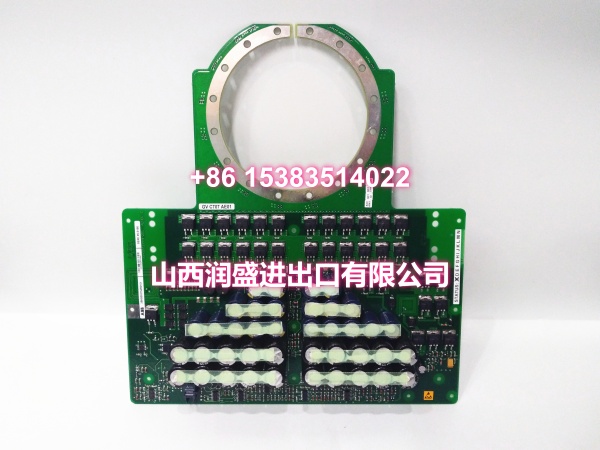

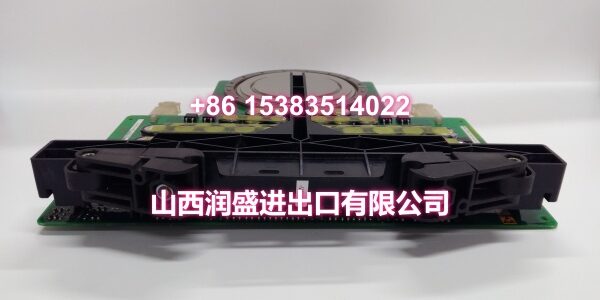

- Model: 3BHB003154R0101 (NTAC-02)
- Brand: ABB
- Series: ABB Drives / ACS Series Accessories
- Integration Role: Interfaces incremental encoder (ABZ) feedback signals into ABB frequency converters for precise speed and position control.
- Product Type: Pulse Encoder Interface Module
- Key Specs: 24V DC Supply | 15V/24V Jumper-Selectable Encoder Supply | Up to 100 kHz Pulse Rate
- Note: Condition: New Original (New Surplus).
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 3BHB003154R0101 |
| Functional Type | Pulse Encoder Interface Module (NTAC-02) |
| Module Supply Voltage | 24V DC ±10% |
| Module Power Consumption | 7.5 W / 300 mA |
| Encoder Supply Voltage | Jumper-selectable 15V DC or 24V DC |
| Supported Encoder Signals | Channels A, B, Z (Incremental ABZ) |
| Maximum Pulse Rate | Up to 100 kHz |
| Primary Compatibility | ABB ACS600 Series Frequency Converters |
| Interchangeability | Not interchangeable with NTAC-01 |
| Condition | New Original (New Surplus) |
Product Introduction
The ABB 3BHB003154R0101 (NTAC-02) is a dedicated pulse encoder interface module designed to integrate incremental encoder feedback directly into ABB frequency converters, such as the ACS600 series. It acts as the critical hardware bridge, translating mechanical rotation data into digital control signals for the drive.
For system integrators, this module eliminates the need for external signal conditioning when implementing closed-loop vector control. By providing a jumper-selectable 15V or 24V encoder supply and supporting pulse rates up to 100 kHz, it ensures precise speed regulation and torque control in demanding applications like crane hoists, centrifuges, and web handling lines.
Wiring & Backplane Integration Notes
Because the NTAC-02 is a hardware interface module rather than a programmable CPU, integration focuses on physical wiring and power configuration rather than firmware flashing.
- Voltage Selection: Before wiring the encoder, verify the jumper settings on the module. The NTAC-02 allows you to select either 15V or 24V supply for the encoder. Mismatching this voltage with your encoder’s rating can permanently damage the sensor.
- Shielding & Noise: Incremental encoder signals are highly susceptible to electromagnetic interference (EMI). Always use shielded twisted-pair cables for Channels A, B, and Z, and ensure the shield is grounded at the drive end to prevent false counting or drive faults.
- Compatibility Check: This module is specifically designed for ABB drives like the ACS600. It is not interchangeable with the older NTAC-01. Verify your drive’s hardware slot compatibility before installation.
- Power Budget: The module draws 300 mA at 24V DC. Ensure your control power supply can handle this additional load alongside other interface modules.
Integrator’s FAQ
1. Can I hot-swap the NTAC-02 module while the drive is running? No. While the module itself is a passive interface, it connects directly to the drive’s control unit. Removing or inserting it under power can cause voltage spikes that may damage the drive’s internal control board or the encoder. Always perform a safe stop, disconnect main power, and wait for the DC bus capacitors to discharge before handling the module.
2. Is this part still available from ABB, and what is the successor? The NTAC-02 is largely considered legacy hardware, primarily associated with the ACS600 series which has been superseded by the ACS880. While ABB may still offer limited support, sourcing New Surplus units like the 3BHB003154R0101 is often the most reliable way to maintain existing systems without undergoing a full drive retrofit.
3. Will replacing this module cause me to lose my drive parameters? No. The NTAC-02 is a hardware interface component; it does not store drive configuration parameters or firmware. Your motor data, PID settings, and I/O configurations are stored in the drive’s main control unit. However, after replacement, you should verify the encoder feedback direction and scaling in the drive parameters to ensure proper closed-loop operation.
4. What is the warranty difference between New Surplus and Refurbished? We supply this unit as New Original (New Surplus), meaning it is unused, original factory stock, often still in its original anti-static packaging. This comes with a standard 12-month warranty. “Refurbished” units are used parts that have been repaired or cleaned; they often contain aged capacitors or worn connectors that can lead to unpredictable downtime and typically carry shorter, riskier warranty terms (e.g., 30-90 days).
5. Why is the pricing lower than direct OEM but higher than used parts? Our pricing reflects the value of guaranteed reliability. Unlike used/refurbished parts sold on general marketplaces—which may have unknown operational hours or hidden damage—our New Surplus inventory is verified for authenticity and condition. You avoid the premium of custom OEM manufacturing for obsolete parts while securing a component that will perform like new, minimizing the risk of costly production stoppages.
