Product Core Brief
- Model: IS215WEPAH2BB
- Brand: General Electric (GE)
- Series: Mark VIe (Speedtronic)
- Core Function: WEPA (Pressure Measurement) module — provides high-precision pressure signal acquisition and processing for gas/steam turbine control and industrial process applications.
- Product Type: WEPA Pressure Measurement Module (I/O Pack)
- Key Specs: High-precision pressure measurement | Simplex/TMR redundancy support | Mark VIe fully programmable control system | Three software frame support | Hazardous location rated
- Condition: New Original / New Surplus
Product Introduction

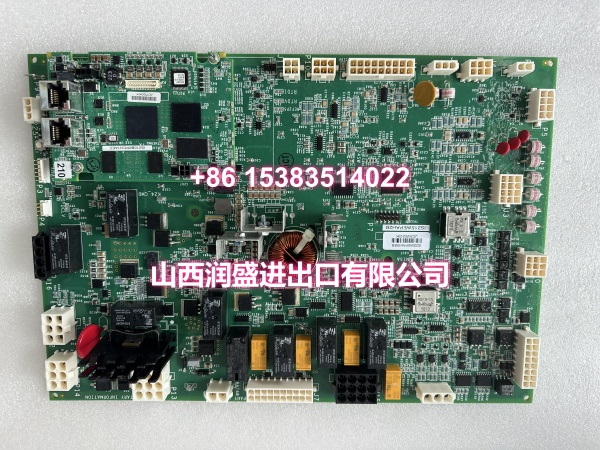

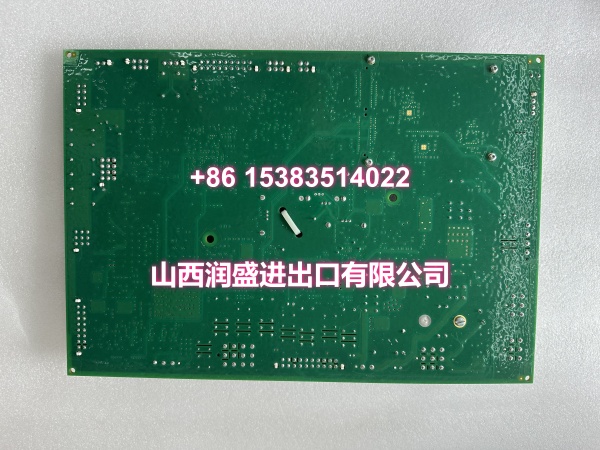

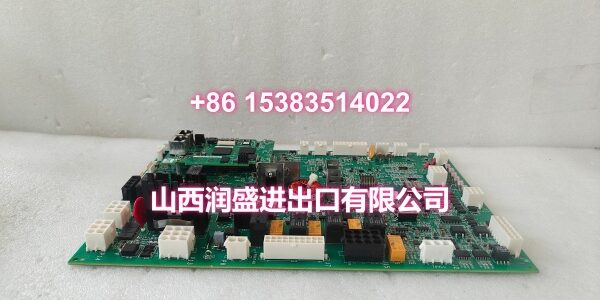

The GE IS215WEPAH2BB is a WEPA (Pressure Measurement) module in GE’s Mark VIe Speedtronic control system, designed for high-precision pressure signal acquisition in gas turbine, steam turbine, and industrial process control applications. It serves as the critical interface between field pressure transmitters and the Mark VIe controller, converting analog pressure signals into digital data for real-time monitoring, control logic, and safety protection functions.
The module is engineered for applications requiring high-accuracy pressure data — particularly in oil & gas pressure monitoring, chemical process reaction control, and power generation systems where precise pressure measurement is essential for safe and efficient operation. Unlike cost-optimized pressure modules designed for general-purpose monitoring (such as air compressors, filters, and pumps), the WEPA module delivers the precision and reliability needed for critical turbine protection and process control functions.
The IS215WEPAH2BB integrates into GE’s fully programmable Mark VIe control system and supports three different software frame configurations, providing flexibility in how pressure data is processed and utilized within the control logic. The module can be configured for either simplex (single-module) or TMR (Triple Modular Redundant) operation, allowing system designers to match the redundancy level to the criticality of the pressure measurement function.
In TMR configuration, three WEPA modules vote on pressure readings to provide fault-tolerant operation. If one module reports an incorrect pressure value due to a hardware fault or signal anomaly, the other two outvote it, preventing spurious trips or missed safety conditions. This is particularly important for critical pressure measurements such as fuel gas supply pressure, lube oil pressure, and hydraulic control oil pressure — where an incorrect reading could cause an unnecessary turbine trip or, worse, fail to detect a dangerous low-pressure condition.
The WEPA module is commonly used for:
- Fuel gas supply pressure monitoring (natural gas, syngas, hydrogen)
- Lube oil pressure monitoring for bearing protection
- Hydraulic control oil pressure monitoring for servo valve control
- Compressor discharge pressure monitoring for surge protection
- Steam header pressure monitoring in combined cycle plants
- Seal oil pressure monitoring for hydrogen-cooled generators
- Process pressure monitoring in chemical and petrochemical applications
The module connects to compatible terminal boards via a standard connector, which routes field wiring to screw terminals for easy installation and maintenance. It communicates with the Mark VIe processor via dual redundant Ethernet (IONet), ensuring that pressure data continues to reach the controller even if one network path fails.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Type | WEPA Pressure Measurement Module |
| Series | Mark VIe (Speedtronic) |
| Measurement Type | High-precision pressure measurement |
| Redundancy | Simplex and TMR supported |
| Software Frame Support | Three software frames |
| Communication | Dual redundant Ethernet (IONet) |
| Control System | GE Mark VIe fully programmable control system |
| Hazardous Rating | Class 1, Div. 2 rated (when paired with compatible terminal board) |
| Conformal Coating | Yes (for harsh environment protection) |
| Certifications | CE, UL Listed |
| Application | Fuel pressure monitoring, lube oil pressure, hydraulic oil pressure, compressor pressure, process pressure |
| Origin | USA |
Quality Control Process
Every IS215WEPAH2BB goes through a full functional bench test before it ships. We start with a visual PCB inspection — checking for cold solder joints, burnt traces, swollen capacitors, and verifying the integrity of all connectors and communication ports. We also inspect the conformal coating for any cracks or peeling that could compromise environmental protection.
Then we power it up on a regulated supply and verify the power draw is within spec. We test the pressure measurement function by applying known pressure signals (via a calibrated pressure simulator or signal generator) and confirming the module correctly reads and reports each value via IONet. We verify the measurement accuracy across the full input range, confirming it meets the high-precision specification.
We test both Ethernet ports by connecting to a network switch and confirming link/activity LEDs illuminate on each port, then verifying the module registers on the IONet with its correct hardware ID. We test the redundant communication function by disconnecting one Ethernet cable and confirming the module continues to communicate over the remaining link without data loss. We verify the TMR voting function by connecting three WEPA modules together and confirming they vote correctly on pressure readings. We run a stability test by continuously reading pressure inputs for several hours, monitoring for drift or communication failures. We also verify the isolation between channels by measuring resistance between adjacent input channels and between inputs and module ground. Finally, we confirm the module is compatible with the required terminal boards by performing a physical connection test. Each unit ships in anti-static foam with a moisture barrier bag.
Replacement Pitfall Guide
❗ Verify the redundancy configuration matches your application. The IS215WEPAH2BB can be configured for either simplex or TMR operation. If the replacement module is configured for simplex but your system expects TMR voting, the controller will flag a redundancy fault and may trip the turbine. Conversely, if the module is configured for TMR but installed in a simplex slot, it will not function correctly. Always verify the redundancy configuration in ToolboxST before and after installation.
❗ Confirm the software frame configuration. The WEPA module supports three different software frames. If the replacement module’s frame configuration doesn’t match the original, the controller may not correctly interpret the pressure data. After installing the replacement, verify the software frame assignment in ToolboxST matches your application’s configuration.
❗ Don’t skip the pressure measurement accuracy test. After installing the replacement, test the pressure measurement function by applying known pressure signals and confirming the module reports accurate values via IONet. A module that communicates correctly but reads pressure inaccurately is a safety hazard — particularly for critical functions like fuel pressure monitoring or lube oil pressure protection.
❗ Verify the terminal board compatibility. The WEPA module must be paired with a compatible terminal board that provides the correct signal conditioning and field wiring interface. Using an incompatible terminal board can result in incorrect signal scaling or wiring pinouts, causing the controller to read wrong pressure values. Always confirm the terminal board model matches the WEPA module specification.
❗ Check the IONet communication path. The dual Ethernet ports provide redundant communication, but both cables must be routed through separate physical paths to provide true redundancy. If both cables run through the same cable tray and that tray is damaged, you lose both communication paths simultaneously. Route the primary and backup Ethernet cables through separate conduits or cable trays.
❗ Verify the module firmware version. If the replacement module has a different firmware version than the other modules in a TMR arrangement, it may not vote correctly with the other two modules. Ensure the firmware version matches or is compatible with the existing modules in your system.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| IS215WEPAH2BA | Direct | Earlier revision; verify firmware match | |
| IS200AEPAH1BKE | Functional Equivalent | AEPA is cost-optimized; WEPA is high-precision | |
| IS215WEPAH2BC | Direct | Later revision; drop-in compatible | |
| IS420WEPAH2BB | Needs Adaptation | Mark VIeS variant; requires I/O network migration |
- Measurement Type: High-precision pressure measurement
- Redundancy: Simplex and TMR supported
- Software Frames: Three software frame configurations
- Communication: Dual Ethernet ports for redundant IONet connectivity
