Product Core Brief

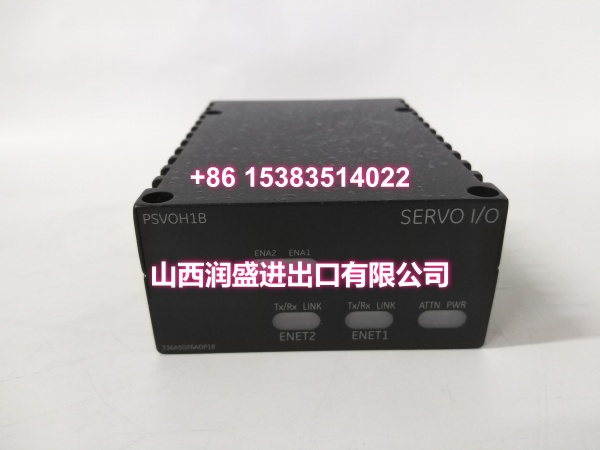

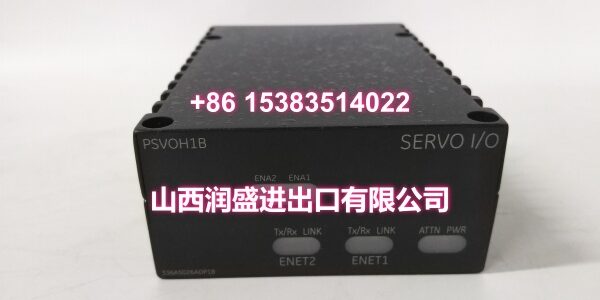

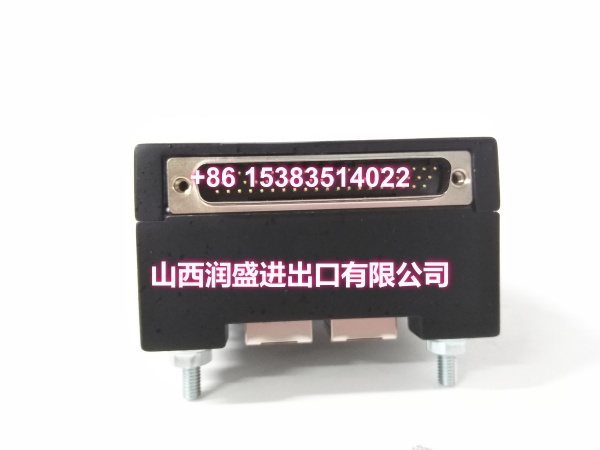

• Model: IS220PSVOH1B
• Brand: GE (General Electric)
• Series: Speedtronic Mark VIe — Servo Control I/O Pack (PSVO)
• Core Function: Dual independent servo valve closed-loop position control for GE gas and steam turbine hydraulic actuators.
• Product Type: Servo Control I/O Module
• Key Specs: 18–32VDC input | Dual IONet redundant Ethernet | 2 servo valve loops | LVDT position feedback | Hot-swappable | ToolboxST configurable
• Condition: New Original / New Surplus

Product Introduction

The GE IS220PSVOH1B is a servo control I/O module from GE’s Mark VIe Speedtronic turbine control series. Designed for both gas and steam turbine applications, it is the critical interface between the Mark VIe controller and the hydraulic servo actuators that regulate fuel valves and inlet guide vanes. A failure in this module can directly cause loss of actuator control, leading to forced load reduction or unit trip.

This module provides two independent servo valve position closed-loop circuits, processing LVDT position feedback to ensure precise actuator positioning. It communicates over dual redundant IONet Ethernet (RJ45) and pairs with the IS200TSVOH1B (TSVO) terminal board and WSVO servo driver sub-module. The B-revision improves internal shielding and grounding compared to the IS220PSVOH1A, offering better resistance to electromagnetic interference from EH oil pump start/stop cycles and updated RoHS-compliant components for lower failure rates in high-temperature conditions.

The module features onboard flash memory, RAM, and internal temperature monitoring. It is configured via ToolboxST/ControlST Toolbox and supports automatic reconfiguration on replacement, minimizing commissioning time during maintenance outages. The official reference MTBF is approximately 414,248 hours.

Key Technical Specifications

Quality Control Process

Every IS220PSVOH1B module goes through a four-stage bench check before shipping. First, a visual inspection under magnification checks for cold solder joints, cracked traces, and connector pin damage — common failure points on servo control modules exposed to turbine-deck vibration. Second, we power up the module on a verified Mark VIe test rack and confirm the 18–32VDC input circuit reads within spec using a Fluke 87V. Third, we simulate LVDT position feedback signals and verify both servo control loops correctly process the closed-loop position data on the IONet bus. Fourth, we confirm both ENET1 and ENET2 Ethernet ports establish proper communication and that all panel LEDs (PWR, ATTN, ENET1/2, ENA1/2) indicate correct status. Finally, the module is sealed in anti-static foam with desiccant — no exceptions.

Replacement Pitfall Guide

❗ A-revision vs. B-revision EMI shielding. The IS220PSVOH1B is the B-revision, which has improved internal shielding and grounding over the IS220PSVOH1A. If you’re replacing an A-revision board and still experiencing intermittent servo faults after EH oil pump cycling, the issue may be EMI susceptibility that the B-revision was designed to address. Conversely, dropping a B-revision into a rack configured for A-revision parameters may require ToolboxST reconfiguration.

❗ TSVO terminal board and WSVO sub-module pairing. The IS220PSVOH1B must be paired with the IS200TSVOH1B (TSVO) terminal board and WSVO servo driver sub-module. Using an incompatible terminal board or a mismatched WSVO sub-module will prevent the servo loops from closing properly, resulting in actuator drift or failure to respond.

❗ LVDT feedback wiring polarity. Servo valve position control relies on accurate LVDT feedback. Reversed LVDT wiring polarity will cause the closed-loop controller to drive the actuator in the wrong direction — potentially causing mechanical damage. Verify LVDT wiring phase before energizing the servo loop.

❗ IONet redundancy configuration. The module supports dual redundant IONet Ethernet. If only one Ethernet cable is connected, you lose redundancy. In a trip-critical servo application, a single network fault could cause loss of control. Always verify both ENET1 and ENET2 LEDs are active after installation.

❗ Automatic reconfiguration not enabled. The module supports automatic reconfiguration on replacement, but this feature must be enabled in ToolboxST’s component editor. If it’s disabled, the new module will not inherit the correct servo parameters and the actuator will not function. Always confirm the auto-reconfig setting before swapping modules during an outage.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks:

• Dual independent servo valve position closed-loop circuits with LVDT feedback
• Dual redundant IONet Ethernet (RJ45) for fault-tolerant communication
• Reference MTBF: ~414,248 hours; operating temperature 0°C to +65°C
