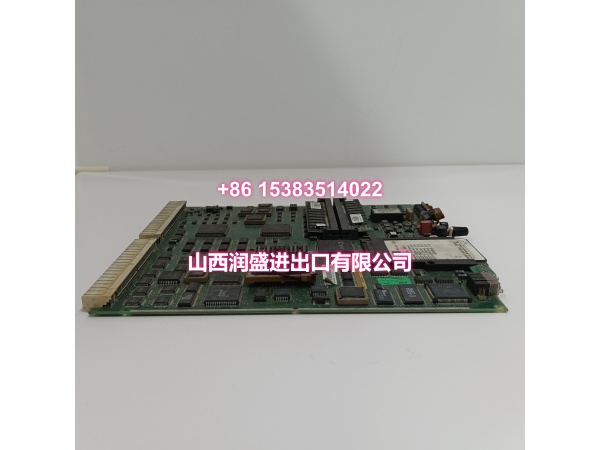

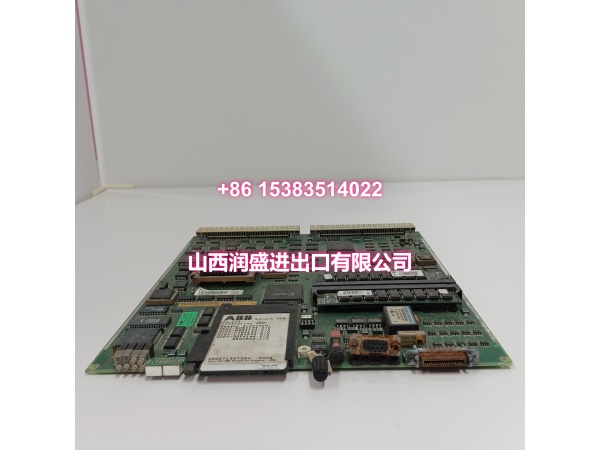

Product Quick Summary
- Model: PM510V08
- Part Number: 3BSE008373R1
- Brand: ABB
- Core Function: Processor module (CPU) for the Advant OCS distributed control system
- Memory: 8 MByte program storage
- Condition: New surplus / legacy discontinued — ready to ship
- Origin: Sweden
This is the 8 MB variant of the PM510 series, built to handle more complex control logic than the base 4 MB version.
Core Technical Specifications
| Parameter | Detail |
|---|---|
| Product Type | Processor Module (CPU) |
| Part Number | 3BSE008373R1 |
| System Platform | ABB Advant OCS |
| Memory Capacity | 8 MByte |
| Installation | Rack-mounted on OCS backplane |
| Communication Buses | MB300, AF100 |
| Status Indicators | LED (RUN, STOP, ERROR) |
| Country of Origin | Sweden |
| Typical Use | Sequential control, logic execution, I/O management |
| Condition | New surplus / legacy |
Engineer’s Perspective
The ABB PM510V08 3BSE008373R1 is the processor module that sits at the heart of an ABB Advant OCS control rack. If you’re maintaining a power plant, chemical facility, or water treatment site that still runs on this platform, this CPU is the part you cannot afford to be without when a controller fails.
The “V08” designation means it carries 8 MByte of onboard memory — double the base PM510’s 4 MB. That extra space matters when your control program has grown over the years with added interlocks, alarms, and sequential logic. Swapping in a base 4 MB unit when your program was compiled for 8 MB simply won’t work. You’d be looking at a forced program rewrite or, worse, extended downtime.
In the field, this module handles everything: executing user logic, managing local and remote I/O stations, and communicating across the MB300 or AF100 network to operator stations and peer controllers. It’s a legacy part — ABB has long since moved on to newer platforms — which makes sourcing a genuine, tested unit critical. The ABB PM510V08 3BSE008373R1 is not something you want to gamble on with an unverified supplier.
Installation, Compatibility & Risk Avoidance
Hardware compatibility: This module plugs directly into the Advant OCS rack backplane. Before pulling the old CPU, confirm the rack power supply can handle the load — adding or replacing modules can sometimes push a marginal supply over the edge.
Firmware and program load: The ABB PM510V08 3BSE008373R1 ships without your application program. You’ll need to download the control logic from your engineering station using ABB’s Control Builder software. Make sure your project file matches the 8 MB memory configuration, or the download will fail.
DIP switch / memory module check: Some PM510 variants use SIMM memory modules with configuration switches. If you’re replacing a PM510V16 (16 MB) with this V08 unit, verify your program fits within 8 MB before attempting the swap. Downgrading memory without adjusting the program is a common field mistake.
Network addressing: After installation, confirm the node address on the MB300 or AF100 bus matches the original configuration. A wrong node address will isolate the controller from the rest of the system — the LEDs will show RUN, but nothing will talk to it.
Field Note: Always record the original DIP switch positions and node address before removing the failed CPU. Taking a photo with your phone takes five seconds and saves hours of troubleshooting if the replacement doesn’t come up immediately.
Natural FAQ
Can I replace a base PM510 (4 MB) with the PM510V08? Yes. The V08 is backward compatible — it has more memory, not less. Your existing 4 MB program will load and run without modification. The reverse is not true: you cannot load an 8 MB program onto a 4 MB CPU.
The module powers up but the ERROR LED stays on. What should I check first? Start with the backplane seating — reseat the module firmly. Then verify the node address switches match your network configuration. If both check out, the issue is likely a failed program download or a corrupted application image. Try re-downloading from Control Builder.
Is this module tested before shipping? Yes. Every unit goes through incoming visual inspection, anti-counterfeit verification, live functional rack testing, electrical insulation checks, and static-proof packaging before it leaves our facility. We don’t ship untested legacy parts.
What’s the difference between the PM510V08 and the PM510V16? Memory capacity. The V08 (3BSE008373R1) has 8 MB; the V16 (3BSE008358R1) has 16 MB. If your control program was compiled for 16 MB, the V08 will not accept the download. If your program fits in 8 MB, the V08 is a cost-effective replacement.
Do you offer warranty or return support? All modules are covered under our in-house warranty policy. If the ABB PM510V08 3BSE008373R1 fails to operate correctly upon installation under normal conditions, contact our support team for replacement or refund options.
