Product Quick Summary

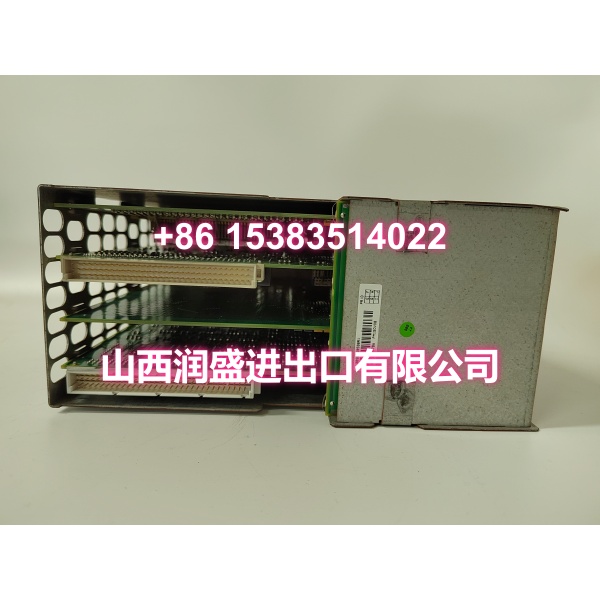

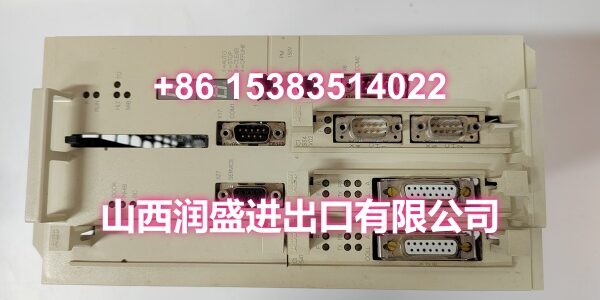

- Model: PM150V08 3BSE003641R1
- Brand: ABB
- Core Function: AC410 Processor Module for Advant OCS systems
- Standout Specs: Designed for Advant Controller AC410 architecture; compatible with MOD 300 software environments
- Condition: New Surplus / Refurbished (Legacy / Discontinued part)
Core Technical Specifications
| Parameter | Detail |
|---|---|
| Brand | ABB |
| Model | PM150V08 |
| Part Number | 3BSE003641R1 |
| Product Type | Processor Module |
| Controller Family | Advant Controller AC410 |
| System Platform | ABB Advant OCS |
| Software Compatibility | MOD 300 Software |
| Origin | Sweden |
| Mounting | DIN-rail compatible chassis slot |
| Application | Industrial process control, DCS replacement |
Engineer’s Perspective
The ABB PM150 3BSE003641R1 is an AC410 processor module built for ABB’s Advant OCS platform. If you’re running an older Advant system, this is the kind of part you keep on the shelf before a controller failure shuts down a production line. It’s not a new-release product — it’s a legacy workhorse that’s been keeping process control loops running in power plants, chemical processing facilities, and manufacturing lines for years.
What makes the ABB PM150 3BSE003641R1 worth sourcing today is simple: replacement availability. When an Advant AC410 rack loses its processor, the whole station goes dark. Finding a tested, functional unit quickly is the difference between a two-hour swap and a two-week shutdown waiting on OEM lead times. This module handles the core logic execution and communication tasks that keep I/O modules synchronized and process data flowing.
We’ve seen these modules pulled from decommissioned plants and refurbished to full operational status. The key is verifying firmware compatibility before installation
— a mismatched firmware version can cause communication faults with downstream I/O or HMI stations. Always check the existing rack configuration before ordering.
Installation, Compatibility & Risk Avoidance
Before you slot the ABB PM150 3BSE003641R1 into a live rack, there are a few things that can go wrong if you skip the basics:
- Firmware match: Verify the firmware version against the existing system configuration. A version mismatch can prevent the processor from syncing with the control network or recognizing installed I/O modules.
- Backplane power budget: The AC410 chassis has a finite power budget. Adding or replacing a processor without checking the total load can cause undervoltage trips on adjacent modules.
- DIP switch / configuration key settings: Some Advant processors use hardware configuration keys or DIP switches for station addressing. Double-check these against your system documentation before powering up.
- CEX-Bus compatibility: If your system uses communication extension modules, confirm the processor firmware supports the installed CEX-Bus hardware.
Field Note: Before swapping a processor in a live Advant OCS rack, always back up the current configuration and note the LED status pattern on the old module. The RUN/ERR LED sequence tells you whether the fault is hardware-level or a software communication issue — saving you from replacing a perfectly good module.
Our In-House Testing Process
Every ABB PM150 3BSE003641R1 unit goes through our internal inspection before it leaves our facility:
- Incoming visual inspection: Checking for physical damage, corrosion, or signs of improper handling.
- Anti-counterfeit verification: Cross-referencing serial numbers, PCB markings, and manufacturing labels against known ABB specifications.
- Functional rack testing: Powering the module in a test chassis and verifying LED status indicators, boot sequence, and basic communication handshake.
- Electrical insulation testing: Ensuring no short circuits or degraded insulation on terminal connections.
- Static-proof packaging: Each unit is sealed in anti-static bags with protective foam before shipping.
Natural FAQ
Q: Can the ABB PM150 3BSE003641R1 replace an older PM150 version in my Advant AC410 rack? A: In most cases, yes. The PM150V08 variant is designed as a direct replacement within the AC410 family. However, you need to verify the firmware version and any hardware revision differences. If your existing system runs MOD 300 software, the V08 variant is fully compatible. Always confirm the station address and configuration key settings match your original setup before installation.
Q: The processor module boots but won’t communicate with the HMI. What should I check first? A: Start with the control network cable and the CN1/CN2 port LEDs. If the link LED is off, you likely have a cable or switch issue. If the link is up but communication fails, check the station address configuration and verify that the processor firmware version matches what the HMI project expects. A firmware mismatch is the most common cause of “booted but silent” behavior on Advant processors.
Q: Do you test the ABB PM150 3BSE003641R1 before shipping, and is there a warranty? A: Yes. Every unit undergoes our in-house functional rack test, visual inspection, and anti-counterfeit verification before shipment. We stand behind our inventory with a standard one-year warranty on all processor modules. If a unit fails to perform as specified, we handle replacement directly — no third-party runaround.
Q: Is this module compatible with S800 I/O systems? A: The PM150 is part of the Advant AC410 platform, which predates the S800 I/O architecture used with PM800-series processors. If your system uses S800 I/O, you’re likely on a PM860/PM891 platform, not AC410. Confirm your existing rack type before ordering — mixing AC410 and S800 hardware won’t work.
