Product Core Brief

• Model: CP471-50
• Brand: YOKOGAWA
• Series: CENTUM VP / FCU
• Core Function: High-performance processor module for field control units with dual-redundant architecture.
• Product Type: FCU Processor Module
• Key Specs: 32-Bit CPU | Dual Redundant | 1GB RAM | 16GB Flash
• Condition: New Surplus / Original

Product Introduction

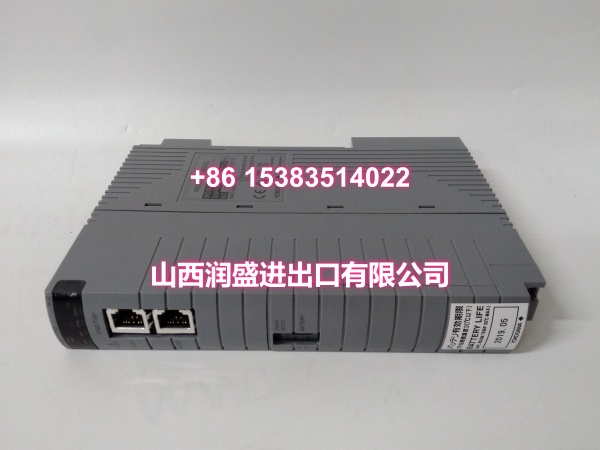

YOKOGAWA CP471-50 is a high-performance processor module for CENTUM VP distributed control systems. This YOKOGAWA CP471-50 unit serves as the brain of the Field Control Unit (FCU), executing complex control logic and managing field I/O data with exceptional speed.

Designed for critical process applications, the YOKOGAWA CP471-50 features a 32-bit processor and supports dual-redundant configuration for maximum system availability. It includes 1GB of RAM and 16GB of flash memory to handle large-scale control strategies and extensive data logging.

Key Technical Specifications

Quality Control Process

Processor modules are the heart of the DCS, so we don’t take shortcuts. Every YOKOGAWA CP471-50 undergoes a full functional burn-in on a live test rack. We verify boot sequence integrity and confirm the CPU passes all internal POST diagnostics. Memory is stress-tested with read/write cycles across the full 1GB RAM and 16GB flash to detect latent cell failures. Communication ports are exercised—Ethernet link-up, CAN bus message framing, and serial loopback tests are all validated. Redundancy switchover is deliberately triggered to ensure bumpless transfer and proper heartbeat signaling. Units showing any timing drift or communication errors are scrapped immediately.

Replacement Pitfall Guide

❗ Redundant Pair Matching: Never mix YOKOGAWA CP471-50 units with different hardware revisions or firmware versions in the same redundant pair. Even minor suffix differences can cause synchronization failures or continuous switchover alarms. Always verify the exact model and revision on the existing card.

❗ Battery Backup Check: This module relies on an internal battery for RAM retention during power loss. If replacing a unit that’s been in storage or service for years, verify the battery voltage before installation. A dead battery can cause program corruption on first power-up.

❗ CAN Bus Termination: The CP471-50 uses CAN ports for internal FCU communication. Ensure proper termination resistors are installed at both ends of the CAN bus. Missing termination causes reflection errors that manifest as intermittent controller faults.

❗ Power Supply Sequencing: This module draws significant inrush current during boot. Verify your backplane power supply can handle the transient load. Undersized supplies cause voltage sag that triggers false CPU fault alarms during startup.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Control Cycle Time: < 10ms (typical for standard PID loops)
• Redundancy Switchover: < 100ms (bumpless, no process disruption)

Need help verifying firmware compatibility for your redundant pair or checking the CAN bus termination settings? I can walk you through the pre-installation checklist.
