Product Core Brief
- Model: 135489-02
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Interfaces relay outputs for alarm and trip functions.
- Product Type: Relay Module / Backplane Assembly
- Key Specs: 3500/32 Compatible | Relay Output | Industrial Automation
- Condition: New Original / New Surplus

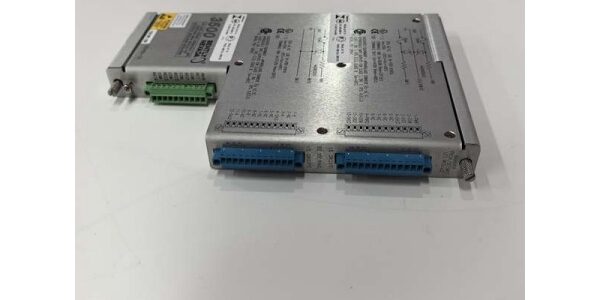

Bently 135489-02
Product Introduction
The Bently 135489-02 serves as a critical relay interface for 3500 monitoring systems. This industrial automation unit processes sensor signals to trigger alarms.
This replacement module handles control and processing for rotating machinery. It ensures rapid fault indication and system protection in critical applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Relay Output Module |
| System Compatibility | Bently 3500 Series |
| Associated Front Card | 3500/32 Relay Module |
| Primary Application | Rotating Machinery Protection |
| Max Output Current | 50 mA (Intrinsically Safe) |
| Max Voltage Rating | 250 VAC |
| Operating Temp Range | -20°C to +65°C |
| Hazardous Area Rating | [Ex ia] IIC / Class I Div 1 |
| Mounting Style | 3500 Rack Backplane |
| Compliance | ATEX / API 670 |
Quality Control Process
Every replacement module undergoes strict electrical validation. We first verify relay coil resistance using a Fluke multimeter. Open or shorted coils fail immediately. Next, we perform contact continuity testing under load. Contact bounce exceeding factory specs triggers rejection. We then inspect the backplane edge connector for oxidation. Bent pins or corrosion cause intermittent system faults. Finally, we verify the intrinsic safety barrier components. All units ship in anti-static shielding.
Replacement Pitfall Guide
❗ Verify Front Card Compatibility. This backplane is designed specifically for the 3500/32 relay module. Mating it with incompatible front cards causes logic failures. Always cross-reference part numbers.
❗ Respect IS Barrier Limits. This module carries intrinsic safety certifications. Never exceed the 50mA output limit or 250VAC rating. Overloading destroys the safety barrier and voids hazardous area compliance.
❗ Check Temperature Ratings. The -20°C to +65°C operating range is absolute. Installing this in unventilated enclosures exceeding 65°C degrades relay life rapidly. Ensure adequate rack cooling.
❗ Inspect Terminal Torque. Loose terminal connections cause arcing and intermittent trips. Torque all field wiring to manufacturer specifications. Vibration from rotating machinery loosens connections over time.
Keep these in mind and you’ll cut 90% of rework time.
Bently 135489-02
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 135489-02 | 135489-02 | Direct | Identical electrical specs |
| 135489-02 | 135489-01 | Needs Adaptation | Verify terminal configuration |
| 135489-02 | 135489-04 | Needs Adaptation | Different I/O termination type |
- Relay Response Time: <10 ms typical actuation delay.
- Dielectric Strength: 1500 VAC isolation between contacts and ground.
