Product Core Brief

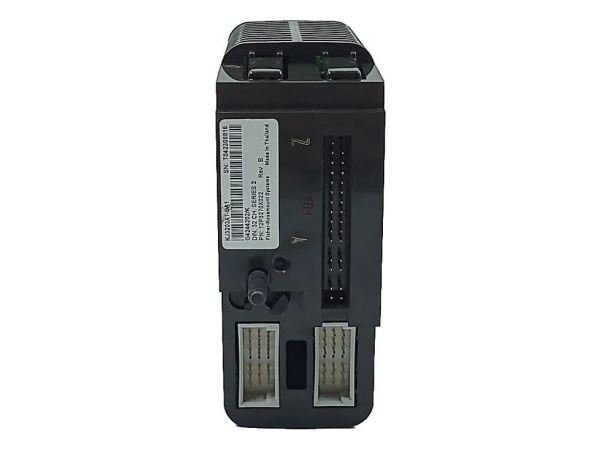

• Model: KJ3203X1-BA1
• Brand: Emerson (DeltaV / EPRO)
• Series: DeltaV Series 2 DCS
• Core Function: 32-channel discrete (digital) input module accepting 24 VDC dry contact signals for monitoring field device status (valves, switches, relays).
• Product Type: Discrete Input (DI) I/O Module
• Key Specs: 32 Channels | 24 VDC | Dry Contact | Series 2
• Condition: New Surplus / OEM Original

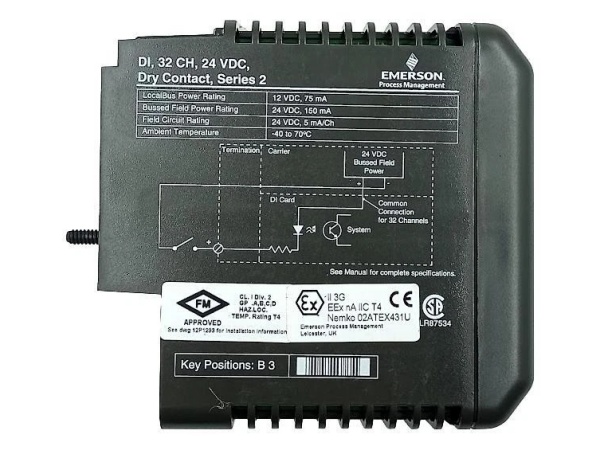

Key Technical Specifications

• Module Type: Discrete Input Card (Series 2)
• Part Number:
• Alternate Part Numbers: 12P3270X022 / 12P3270X032
• Channel Count: 32 Channels
• Input Signal: 24 VDC Dry Contact
• Local Bus Power: 12 VDC, 75 mA
• Bus Field Power: 24 VDC, 150 mA
• Field Circuit Current: 5 mA per channel
• Environmental Rating: ISA-S71.04 G3 (Harsh/Polluted Environments)
• Operating Temperature: -40°C to +70°C
• System Compatibility: DeltaV DCS, Series 2 I/O Carriers
• Dimensions: 4.3 x 12.5 x 10.5 cm



Product Introduction

Serving as a high-density digital interface in the Emerson DeltaV Series 2 ecothe provides 32 channels of 24 VDC dry contact inputs in a single module. It is designed to monitor the open/closed status of field devices such as limit switches, valve positioners, push buttons, and relay contacts.

Built for harsh industrial environments, this module meets ISA-S71.04 G3 standards for air pollution resistance and operates across a wide -40°C to +70°C temperature range. Its compact Series 2 form factor maximizes I/O density in the carrier, reducing cabinet footprint while maintaining the robust diagnostics and fault-safe capabilities expected from the DeltaV platform.



QA & Testing SOP

Discrete input modules must reliably detect field signals without false triggering. We verify channel integrity and power consumption.

1. Anti-Counterfeit & Visual Audit: We inspect the Emerson/DeltaV silkscreen,the part number, and check the backplane connector and front panel for physical damage or corrosion.
2. Backplane Enumeration Test: We install the module in a DeltaV Series 2 test carrier to verify it correctly enumerates and communicates with the controller.
3. Channel Actuation Test: We apply 24 VDC dry contact signals to all 32 channels and verify each channel correctly reports open/closed status to the controller.
4. Power Consumption Check: We verify the module draws within spec (12 VDC/75 mA local, 24 VDC/150 mA bus) to ensure it won’t overload the carrier power supply.
5. ESD Safe Packaging: Digital input ICs are ESD sensitive. We pack in anti-static shielding bags with desiccant to prevent latent semiconductor damage.

Installation Pitfalls & Guide

❗ Dry Contact Only: This module is rated for dry contact inputs only. Never apply external voltage to the input terminals. If your field device provides a wet (powered) signal, use an interposing relay or an isolated DI module.

❗ Field Wiring Current: Each channel sources/sinks only 5 mA. Ensure your field contacts are rated for low-current switching. Dirty or corroded contacts that require higher wetting currents may cause intermittent readings.

❗ G3 Environment Protection: While rated for G3 environments, ensure the carrier enclosure is properly sealed and filtered. Prolonged exposure to corrosive gases beyond G3 levels will eventually degrade the PCB.

❗ Power Removal Before Service: Always remove field power and backplane power before inserting or removing this module. The DeltaV Series 2 supports hot-swap, but only when proper procedures are followed to prevent transient faults.

Replacement SOP:

1. Pre-Install: Document the current channel configuration and alarm setpoints; place the associated control logic in bypass/maintenance mode.
2. Removal: Remove field power; disconnect field wiring (label every wire!); release the module from the carrier.
3. Install: Slnew into the designated Series 2 slot; ensure firm backplane seating; reconnect field wiring.
4. Power-On Test: Restore power; verify the controller recognizes the module; force each channel open/closed to confirm correct status reporting before removing bypass.



Technical FAQ

The suffix (-BA1 vs -BA2) typically denotes a minor hardware revision, manufacturing date, or regional compliance variant. Functionally, they are both 32-channel 24 VDC dry contact DI modules for Series 2 and are generally interchangeable. Always verify with your DeltaV configuration software.

Can I use this module with HART devices?
The is a discrete (digital) input module. For HART analog devices, you would need an analog input module such as the KJ3102X1-BA1 or KJ3222X1-BA1.

What does the “12P3270X032” number mean?
12P3270X032 is an alternate or internal Emerson part number that correspthe module. Both numbers refer to the same physical product and are fully interchangeable.

Does this module support diagnostics?
Yes. The DeltaV Series 2 DI modules support open-wire detection and fault reporting. The controller can distinguish between a valid open contact and a broken wire or missing field power, enabling predictive maintenance.

Why is this sold as new surplus?
This unit was pulled from sealed OEM overstock or an unfulfilled project before installation. We test it on our DeltaV test carriers to verify channel functionality, but we aren’t replacing internal components. You’re getting unused factory silicon with original manufacturing tolerances at a fraction of the active OEM list price.
