Product Core Brief
- Model: 900ES1-0100
- Brand: HONEYWELL
- Series: Industrial Control / DCS
- Core Function: Manages high-speed communication and data exchange between distributed control system components.
- Product Type: Communication Controller Module
- Key Specs: Communication Interface | Industrial Automation | DCS Compatible
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL 900ES1-0100 serves as a critical communication controller module for industrial automation systems. It facilitates reliable data exchange across distributed control networks.
This unit ensures continuous process visibility and system integration. Verify with OEM datasheet for exact protocol specifications, as field configurations can vary significantly depending on the application.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Function | Communication Control |
| Signal Processing | High-Speed Data Exchange |
| System Compatibility | Honeywell DCS / Industrial Control |
| Application | Process Automation |
| Diagnostics | Integrated Fault Detection |
| Isolation | Signal Isolation |
| Mounting | Control Rack Slot |
| Environment | Industrial Control Room |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.

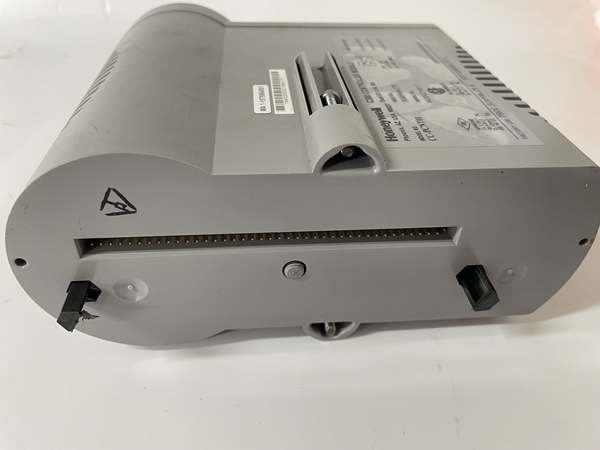

CC-PCNT01
Compatibility Matrix & Benchmarks
- HONEYWELL 900ES1-0100 → HONEYWELL 900ES1-0100 : Direct — Identical replacement
- HONEYWELL 900ES1-0100 → HONEYWELL 900PSM-0101 : Needs Adaptation — Verify communication protocol and system compatibility
- HONEYWELL 900ES1-0100 → HONEYWELL 900B01-0301 : Incompatible — 900B01-0301 is an analog output module
- HONEYWELL 900ES1-0100 → HONEYWELL 51307195-175 : Needs Adaptation — Cross-reference DCS system module specifications
- Comms Handshake: < 500 ms (Cold start to operational)
- Diagnostic Response: < 10 ms (Internal fault detection)
