Product Core Brief
- Model: 1C31234G01
- Brand: Emerson (Ovation / Westinghouse)
- Series: Ovation Distributed Control System (DCS)
- Core Function: Acquires 16 channels of dry contact status signals with built-in 48V wetting voltage for reliable switching detection.
- Product Type: Contact Input Electronic Module (EMOD)
- Key Specs: 16 Channels | Onboard 48V Wetting | Compact Design | Plug-in Module
- Condition: New Original / New Surplus

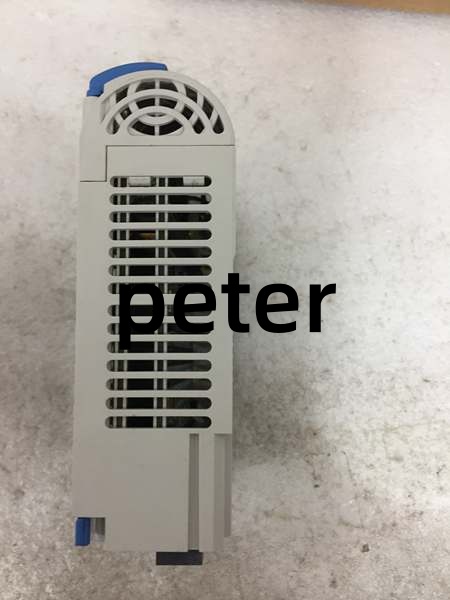

EMERSON 1C31234G01
Product Introduction
The EMERSON 1C31234G01 is a 16-channel Contact Input Electronic Module designed for the Emerson Ovation Distributed Control System. It serves as a highly reliable digital interface for monitoring the open/closed status of field devices such as limit switches, pushbuttons, relays, and breaker auxiliaries.
A defining feature of this compact module is its onboard 48V wetting power supply. This internal voltage is applied across the input contacts to ensure clean, noise-free switching signals, effectively eliminating issues caused by dirty or oxidized contacts in harsh industrial environments. It is a critical component for discrete process monitoring and interlock logic in power generation and heavy industrial automation.
Key Technical Specifications
- Module Type: Contact Input Electronic Module (EMOD)
- System: Emerson Ovation DCS
- Channels: 16 Independent Contact Input Channels
- Input Type: Dry Contact with Onboard 48V Wetting
- Design: Compact Form Factor
- Mounting: Plug-in Ovation I/O Module
- Application: Limit switch monitoring, relay status, interlock logic, discrete control
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify part number 1C31234G01. Inspect the rear Euro-connector pins for bending, corrosion, or missing pins.
- Visual Inspection: Check the front panel and PCB for physical damage. Ensure the module is clean, free from flux residue, and shows no signs of overheating.
- Live Functional Test: Install in an Ovation I/O slot. Verify the module is recognized by the controller and the “OK” LED illuminates.
- Signal Path Test: Short each input channel to its common return terminal. Use Ovation configuration software to verify accurate status transitions and verify the presence of the 48V wetting voltage.
- Final QC & Packaging: Seal in an anti-static bag. Apply a QC Passed label with the date.

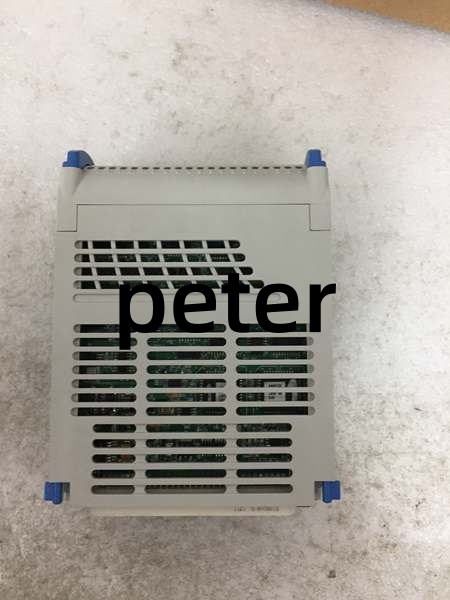

EMERSON 1C31234G01
Replacement Pitfall Guide
❗ Wetting Voltage Hazard: This module provides 48V wetting voltage on its input terminals. Always verify that field devices and connected wiring are rated to handle this voltage to prevent damage to external equipment.
❗ Module vs. Personality Card: In the Ovation system, the 1C31234G01 is the Electronic Module (EMOD). It requires a Personality Module (PMOD, e.g., 1C31238H01) to define the specific cavity insert and terminal mapping. Always check if the PMOD needs to be transferred from the old card to the new one.
❗ Wiring Configuration: For contact inputs, the common return line (if used) must be connected to the negative (B-column) terminals. Ensure proper wiring to prevent short circuits or misread statuses.
❗ Channel Configuration: Verify the channel assignment in the Ovation configuration database. Moving a DI module to a different slot without updating the software configuration will result in reading incorrect discrete statuses.
❗ Hot-Swapping: While Ovation modules support hot-swapping, always verify that the specific input channels are not tied to critical safety interlocks or emergency trip logic before removal to prevent unintended process upsets.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 1C31234G01 → 1C31238H01 : Complementary — PMOD Cavity Insert for Compact Digital/Contact Inputs
- 1C31234G01 → 1C31232G03 : Alternative — Standard 16CH Digital Input (125V) without 48V wetting
- 1C31234G01 → 1B30023H01/H02 : System — Connects to the Ovation I/O Bus (requires proper left/right terminators)
- 1C31234G01 → Ovation DPU : System — Controlled by Ovation Drop Processing Unit via the I/O bus
Benchmarks:
- Wetting Voltage: 48V DC onboard
- Channel Density: 16 discrete inputs per compact module
Need me to pull up the matching 1C31238H01 Personality Module (PMOD) or the 1B30023H02 Right Bus Terminator to complete your I/O setup? Let me know which one you’d like.
