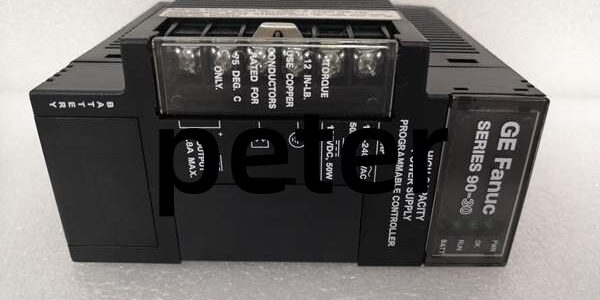

Product Core Brief

• Model:
• Brand: GE Fanuc / Emerson Automation
• Series: Series 90-30 PLC
• Core Function: Universal wide-range AC/DC input power supply for Series 90-30 main rack, supplies regulated backplane power for CPU and I/O modules. Integrated RS485 diagnostic port for power supply status monitoring. Occupies the dedicated leftmost power slot of Series90-30 backplanes.
• Product Type: Single-width Series90-30 Main Rack Power Supply Module
• Key Specs: Wide-range 85–264VAC / 100–300VDC input | Total combined 30W output capacity | 5VDC backplane logic + Non-isolated Relay 24VDC + Isolated 24VDC | Onboard RS485 diagnostic communication Note: Discontinued legacy Series90-30 power supply; new original stock scarce, surplus & refurbished widely available. Does NOT support hot swap. Cannot mount into IC694 expansion racks or IC695 RX3i main racks. Distinct feature compared to other 90-30 power supplies: built-in RS485 monitoring port. Mechanically interchangeable with IC693PWR330 (form factor identical).



Key Technical Specifications

• Input Voltage Range AC: 85 ~ 264 VAC (50/60Hz) DC: 100 ~ 300 VDC Nominal Rating: 120/240 VAC or 125 VDC
• Input Power Rating Max 90 VA (AC input) Max 50 W (DC input)
• Total Combined Output Power Limit: 30 Watts (all outputs combined)
• Regulated Output Channels
  • 5 VDC Backplane Logic: Max 30 W
  • Non-isolated Relay 24 VDC: Max 15 W
  • Isolated 24 VDC Field Supply: Max 20 W
• Onboard Communication: RS485 port for power supply diagnostic status readback
• Protection Features: Overvoltage, overcurrent, short-circuit shutdown protection, internal fuse
• Inrush Current: Peak ≤ 4 A, duration ≤ 250 ms
• Hold-up Time: Minimum 20 ms at full rated load
• Isolation Rating: Input-to-backplane isolation 1500 VAC 1-minute withstand
• RTC Support: Compatible with IC695ACC302 / IC693ACC302 lithium backup battery
• Front Panel LED Indicators: PWR OK, RUN, SYS FLT, BATTERY
• Operating Temperature: 0°C ~ +60°C horizontal cabinet mounting
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Single-width module, occupies one dedicated Series90-30 power slot
• Compatible Baseplates: IC693CHS391 (5-slot), IC693CHS0392 (10-slot)
• Supported Software: Logicmaster 90, Proficy Machine Edition
• Agency Certifications: UL508, Class I Div.2, CE



Product Introduction

is a universal-input power supply for Series 90-30 PLC, designed for machine and process control cabinets. The most prominent feature among the Series90-30 power supply lineup: integrated RS485 diagnostic port, allowing the CPU or monitoring system to read power supply operating status, fault information and load conditions.

Important Power Supply Family Comparison

1. : Universal AC/DC input, equipped with diagnostic communication
2. IC693PWR330: Universal AC/DC input,
3. IC693PWR331: DC-only input high capacity power supply
4. IC693PWR321: Standard AC input, lower power budget All above modules share identical mechanical form factor, physically interchangeable, but communication function differs.

Three independent output domains support flexible field design:

• 5VDC powers CPU and all I/O module backplane logic
• Non-isolated 24V for relay output modules
• Isolated 24V for field sensors to mitigate ground loop risks

Layout Mandate: Must install in the leftmost dedicated power slot; CPU and I/O modules cannot be fitted into the power slot.



QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify part marking. Inspect backplane gold pins for oxidation/bending; check input terminal block and housing integrity.
2. Live Testing: Mount onto validated IC693CHS backplane. Apply rated AC input power, test all three output rails under resistive load, verify diagnostic communication, run continuous 24-hour stability test.
3. Electrical Testing: Monitor backplane 5V rail stability. Insulation resistance ≥10MΩ between input power circuits and chassis protective ground.
4. Firmware Record: Document hardware revision; photograph terminal wiring layout before disassembly.
5. Final QC & Packaging: Place unit inside anti-static shielding. Attach dated QC test tag confirming output stability and diagnostic communication validation prior to shipment.



Installation Pitfalls & Guide

❗ No Hot Swap Support: Power supply module cannot be hot swapped. Full rack power shutdown mandatory before removal. ❗ Strict Baseplate Restriction: Only install on IC693CHS Series90-30 backplanes. Not compatible with IC694 expansion racks or IC695 RX3i main racks. ❗ Dedicated Leftmost Slot Rule: Slot0 exclusively for power supply modules. Never install CPU/I/O modules in the power slot. ❗ Wiring Guidance: If utilizing diagnostic port, use shielded twisted pair cable; avoid parallel routing with high-power AC wiring. ❗ Total 30W Combined Power Budget: Sum all I/O module power consumption; total load cannot exceed combined 30W rating. ❗ Grounding Design: Isolated 24V and non-isolated relay 24V circuits should not share common field ground to avoid ground loops. ❗ Temperature Derating: Above 50°C ambient temperature, reduce total 5V load to prevent over-temperature protection. ❗ ESD Risk: Static discharge damages switching power circuits and transceivers, leading to intermittent power or communication faults.

Replacement Guide

1. Pre-install: Lockout-tagout rack power; back up complete PLC project. Photograph slot layout, AC input wiring and battery connection. Calculate total module power consumption.
2. Removal: Disconnect AC input wiring, unlatch module and slide straight out without twisting backplane pins.
3. Install: Seat new into original dedicated power slot, replicate input wiring connections and confirm battery installation.
4. Power-on Test: Restore rack power; confirm PWR OK LED status, verify all CPU and I/O modules are detected normally, test diagnostic port if utilized.



FAQ

Q: Does support hot swapping? A: No. The power supply module cannot be hot swapped. Full rack power shutdown required before removal.

Q: What is the key difference between and IC693PWR330? A: Form factor and power ratings identical.

• : Built-in diagnostic communication port
• IC693PWR330: No onboard diagnostic port Mechanically interchangeable; projects requiring power supply monitoring cannot directly substitute PWR330 for PWR324.

Q: Can I install into RX3i IC695CHS007 main rack? A: No. Mechanical and backplane bus incompatible. It is native Series90-30 power supply.

Q: Can multiple power supplies be fitted on one IC693CHS backplane? A: Only one dedicated power slot (Slot0); single power supply per rack.

Q: Does the port replace CPU programming port? A: No. This is dedicated power supply diagnostic monitoring, cannot be used for PLC program download.

Q: Will PLC program need modification after power supply replacement? A: No program changes required unless the project uses power supply diagnostic data via .
