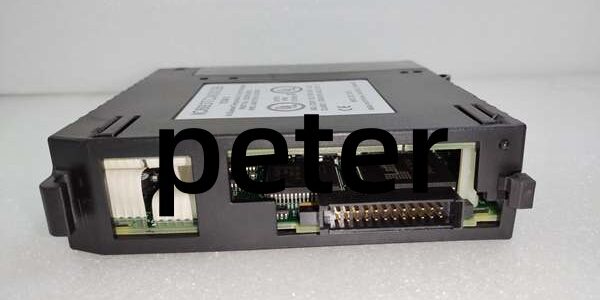

Product Core Brief
- Model:
- Brand: GE Fanuc / GE
- Series: Series 90-30 PLC
- Core Function: Delivers 8 independent closed-loop temperature zones with onboard PID; reads thermocouples and drives time-proportioned DC outputs.
- Product Type: 8-Channel Temperature Control Module (TCM)
- Key Specs: Built-in cold junction compensation | Open/reversed TC detection | 1500 VAC field-to-backplane isolation Note: Discontinued legacy hardware; factory new stock extremely limited, surplus and refurbished units widely traded. Single-width Series 90-30 slot. Hot swapping is not supported. Predecessor hardware before IC693TCM302B revision.
Key Technical Specifications
- Channel Layout: 8 thermocouple inputs paired with 8 solid-state DC control outputs
- Supported Thermocouple Types: J, K, L
- Measurement Resolution: 12-bit (0.2°C typical)
- Control Modes: Per-channel On/Off or PID closed-loop regulation
- Configurable PWM Period: 0.1 s up to 60 s
- Maximum Thermocouple Lead Resistance: 30 Ω per channel
- Output Ratings: 100 mA maximum per channel; 18–30 VDC external field supply
- Off-State Leakage: ≤0.1 mA per output
- Backplane Power Consumption: 150 mA @5 VDC
- Internal Protection: Field-replaceable 2 A subminiature fuse
- Isolation Rating: 1500 VAC 1-minute withstand between field circuits and backplane logic
- Operating Temperature: 0°C to 55°C horizontal cabinet mounting
- Storage Temperature: -40°C to 85°C
- Termination: Dual captive screw pluggable terminal blocks
- Diagnostics: Open thermocouple, reversed polarity, temperature out-of-tolerance, short-circuit detection
- Status Indicators: Power, Run, Fault LED plus individual channel status lights
Product Introduction
This unit executes multi-zone thermal regulation locally on the module hardware. Each channel acquires thermocouple readings, applies cold junction compensation and runs PID algorithms without continuous CPU interaction, lowering backplane data load.
All zone setpoints, PID tuning values and alarm limits are configured inside Logicmaster 90-30 software. Common applications include oven heating systems, extrusion lines and thermal processing machinery.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Confirm part marking and hardware revision. Inspect backplane edge pins for bending or oxidation; check terminal connector housings for cracks.
- Live Testing: Install into validated Series 90-30 rack, apply backplane power and external 24 VDC field supply. Inject simulated thermocouple signals and verify cyclic PID output operation on all channels over a 24-hour continuous run.
- Electrical Testing: Use Fluke 115 to monitor backplane rail stability. Insulation resistance testing must exceed 10MΩ between field terminals and chassis protective ground.
- Firmware/Config Backup: Record module firmware revision. Photograph terminal wiring layout before disassembly.
- Final QC & Packaging: Place unit inside anti-static shielding. Attach dated QC test tag documenting channel functional verification prior to shipment.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ No Hot Swap Support: Series 90-30 backplane does not implement hot-swap bus logic. Live removal triggers rack communication faults and can damage backplane traces. Full rack power shutdown required. ❗ Thermocouple Polarity Error: Reversed sensor wiring creates persistent fault alarms and invalid temperature readings. Confirm polarity at both thermocouple and module terminals. ❗ Lead Resistance Limitation: Wiring impedance exceeding 30 Ω degrades measurement accuracy. Use low-resistance thermocouple extension wire for long cable runs. ❗ ESD Dangers: Un-grounded handling can damage cold junction compensation circuitry. Static damage often manifests as slow temperature drift after commissioning. ❗ External Field Supply Mandate: Output drivers require separate 18–30 VDC field power. Backplane power alone cannot drive heater loads; loss of field supply disables all control outputs.
Replacement Guide:
- Pre-install: Activate lockout-tagout on rack power and external field supply; back up module configuration and photograph all wiring connections.
- Removal: Disconnect both terminal blocks, unlatch module and slide straight out without twisting edge connectors.
- Install: Seat new unit fully into vacant rack slot, engage latches, reattach terminal blocks and replicate all wiring.
- Power-on Test: Restore power, download saved configuration, validate thermocouple readings and confirm PID output modulation without diagnostic faults.
FAQ (Frequently Asked Questions)
Q: Does this module support hot swapping? A: No. The Series 90-30 backplane lacks hot-swap functionality. Complete rack power shutdown is required before removing or installing the unit.
Q: Can directly replace IC693TCM302B? A: Mechanically and pin-compatible. The base is the original hardware revision; the -B variant includes improved cold junction compensation stability. Perform post-replacement calibration checks to avoid minor temperature offsets.
Q: Does this module support RTD sensors? A: No. Input circuits are dedicated thermocouple interfaces. Select separate RTD modules if resistance temperature devices are required.
Q: Can PID parameters be modified online during operation? A: Yes. Tuning gains and setpoints can be adjusted online via programming software. Document active parameters before making live adjustments to thermal zones.
Q: What happens when the internal field fuse blows? A: All control outputs disable. The fuse is field-replaceable; never install higher-rated fuses, as this removes short-circuit protection.
Q: Can this hardware be mounted inside RX3i racks? A: No. Form factor and backplane signaling are exclusive to Series 90-30 chassis. It cannot operate within PACSystem RX3i systems.
Q: Will saved configuration transfer directly to a replacement unit? A: Parameter sets import without modification. Always verify cold junction performance and sensor readings after replacement to guarantee consistent control accuracy.
