Product Core Brief

• Brand: GE (General Electric)
• Model: IS210BPPBH2BMD
• Series: Speedtronic Mark VI

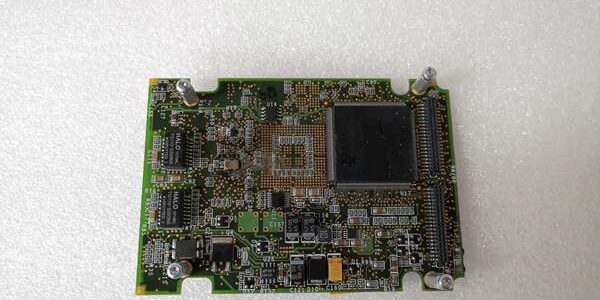

• Core Function: Stacked auxiliary daughterboard delivering secondary signal conditioning, local monitoring, and support logic when mounted onto compatible Mark VI main motherboards
• Type: PCB daughter assembly (stack-on sub-board)
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM production; limited available inventory
• Key Spec Highlights: Conformal coated PCB, standoff screw mounting, direct header interconnection to host board, −30 °C to +65 °C operating range

Key Technical Specifications

• Form Factor: Small stackable daughterboard, secured with four standoffs and machine screws
• Interconnection: Direct pin header mating to compatible Mark VI host mainboards
• Coating: Conformal coated circuit board for enhanced humidity and dust resistance
• Operating Temperature: −30 °C to +65 °C
• Ambient Humidity: 5%–95% non‑condensing
• Input Supply: Derived power from host motherboard 24 VDC domain
• Onboard Components: Signal transformers, discrete semiconductors, crystal oscillators, diagnostic LED indicators
• Mechanical Clearance: Profiled edge cutouts for component clearance on host assembly
• Compatible Host Boards: IS200AEPAH series main assemblies within Mark VI racks
• System Environment: 13‑slot and 21‑slot Mark VI VME turbine control cabinets

Product Introduction

Many Mark VI turbine outages stem from failed auxiliary daughterboards that support primary control and signal processing functions. GE mounts directly atop Mark VI host mainboards to provide supplementary signal handling and local circuit supervision required for governing and protection algorithms.

This unit relies on hard header interconnection rather than external cabling, minimizing loose connection failure points inside densely populated control assemblies. The conformal coating improves resilience against typical plant cabinet contaminants, and its standardized footprint allows direct drop-in replacement during scheduled maintenance outages.

Key Selling Points & Differentiators

1. GE is the factory specified daughter assembly for matched Mark VI mainboard configurations; generic PCB assemblies cannot replicate defined signal timing and pin mapping.
2. Conformal coated PCB reduces corrosion risk in humid or dusty power generation cabinet environments.
3. Every unit completes host-board bench integration testing before shipment; signed test documentation available upon formal request. Warranty coverage runs 12 months post delivery.
4. Optimized for stacked installation; profiled edges prevent mechanical interference with surrounding onboard components.
5. Not recommended for Mark VIe IONet control systems. This daughterboard is designed exclusively for legacy Mark VI VME architecture and cannot operate with UCSA controllers.
6. Identical standoff mounting pattern and header pinout as original factory hardware; no mechanical modification required for exchange.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, header pin integrity and hardware accessory cross-check.
• Live Bench Test: Dedicated Mark VI host board test fixture, power-on self-check, header signal continuity verification, continuous 24-hour thermal cycling.
• Electrical Tests: 500 V megger insulation resistance testing, circuit ground continuity validation.
• Component Verification: Visual inspection of transformers, oscillators and LED assemblies; no unauthorized component rework performed.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test photos and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Host Board Revision Mismatch Risk Risk: Installing onto an incompatible mainboard revision creates signal misalignment, missing diagnostic indications or intermittent communication faults. Prevention: Cross-reference host board part number and hardware revision against site cabinet drawings before installation. Field note: Multiple gas turbine sites reported unaccounted-for vibration monitoring dropout after pairing mismatched daughter and mainboard revisions.

Header Pin Damage Risk Risk: Misaligned insertion bends header pins, creating high-resistance intermittent connections that evade offline testing. Prevention: Fully align all mating headers before applying downward mounting force; inspect pins visually after seating.

ESD Damage Risk Risk: Unprotected handling damages surface-mount semiconductors without immediate visible failure. Prevention: Use grounded wrist straps; keep the module sealed inside anti-static packaging until mounting.

Standoff Torque Error Risk Risk: Over-tightened screws warp the PCB; loose fasteners introduce vibration-induced connection drift. Prevention: Apply moderate, consistent torque to all four mounting standoff screws.

Critical Summary: Always confirm complete assembly part number matching. This daughterboard cannot function standalone and requires a validated compatible Mark VI host mainboard for operation.

FAQ

1. Q: Can operate independently without a Mark VI host motherboard? A: No. It draws power and communicates exclusively via the mating header to a compatible mainboard; standalone operation is not supported.
2. Q: Does this daughterboard support hot-swap while the turbine control rack remains energized? A: Removal requires full rack shutdown. Hot swapping stacked daughter assemblies under power risks header short circuits and permanent hardware damage.
3. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 5–7 week lead times subject to global surplus availability.
4. Q: I run a dual-redundant Mark VI turbine protection rack. Is this hardware approved for safety-related assemblies? A: Yes, when deployed within the OEM validated bill of materials. Cross-check assembly revision against site safety documentation for formal validation records.
5. Q: What damage scenarios are excluded under warranty coverage? A: The 12-month limited warranty covers manufacturing defects. Damage from bent header pins, ESD, over-torqued fasteners or incorrect host board pairing is not covered.
6. Q: Are alternate suffix variants of this daughterboard interchangeable? A: Suffix changes often correspond to component revisions. Always match the full part number to existing hardware to avoid signal incompatibility.
7. Q: Can this assembly be used to upgrade older Mark VI mainboards that originally shipped without a stacked daughterboard? A: Only if the host board PCB layout includes the required mating header footprint. Many early mainboard revisions lack support and cannot accept this unit.
