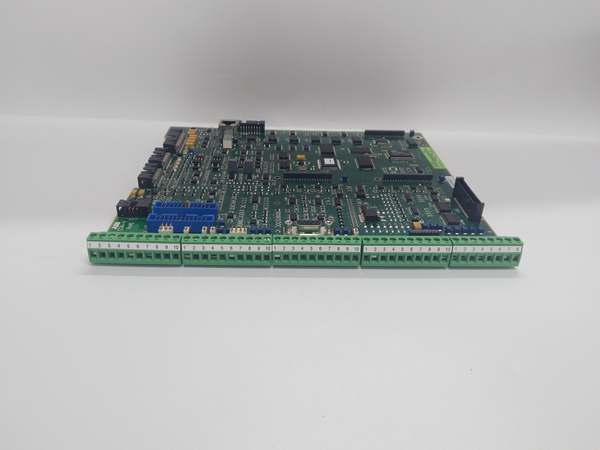

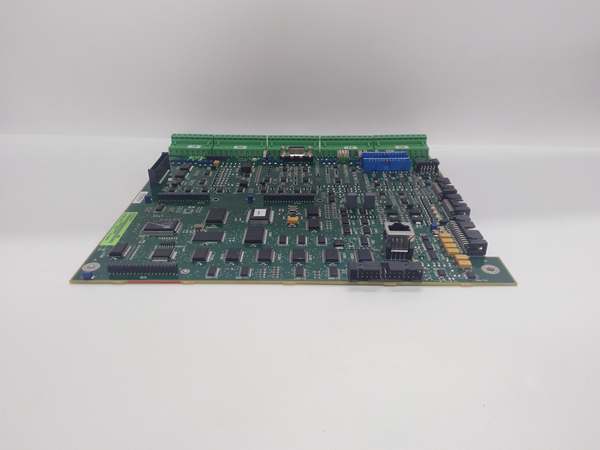

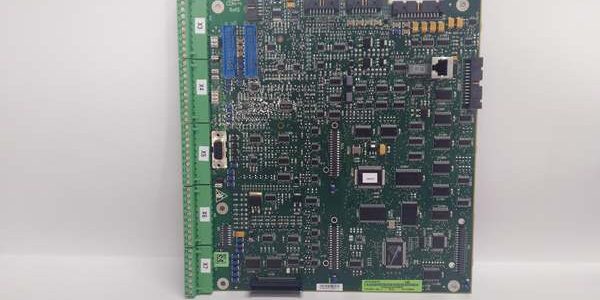

Product Core Brief

• Model: SDCS-CON-4-COAT-ROHS, main OEM material codes: 3ADT313900R1001, 3ADT313900R1501
• Brand: ABB Hitachi Energy
• Series: DCS800 series industrial thyristor DC drive core main control motherboard
• Core Function: The central master logic motherboard installed inside every DCS800 power drawer (D1~D7 frame sizes). The suffix COAT means full anti-corrosion conformal coating; ROHS indicates full compliance with EU RoHS environmental standards. It runs the core DC motor vector control algorithm, processes all DI/AI field signals, stores complete drive parameters and fault logs in on-board FlashPROM, communicates with power stage via DDCS fiber optics, and hosts plug-in communication subboards (SDCS-COM-8 / SDCS-COM-81). It integrates hardware watchdog, overspeed, overcurrent and field excitation protection circuits, supporting open-loop and encoder closed-loop speed/torque regulation for large DC motors in rolling mills, paper machines and main generator excitation systems.
• Product Type: DCS800 drive main CPU & multi-function control PCB
• Key Specs: On-board Flash memory for permanent parameter/fault log storage; integrated watchdog reset circuit; multi-channel terminal blocks for DI/AI/DO/AO field signals; dedicated slot for SDCS-COM series communication subboards; DDCS fiber optical interface for power stage data exchange; compatible with 1A/5A CT secondary; 24 VDC internal logic supply from drive auxiliary power; full G3 conformal coating; RoHS compliant; fits all DCS800 drawer frame sizes D1 to D7
• Note: ABB fully discontinued the DCS800 DC drive platform including SDCS-CON-4 series. Only limited factory-sealed original coated RoHS PCBs and fully bench-tested surplus boards are supplied as maintenance spares for legacy metallurgical rolling mills, thermal power excitation cabinets and paper multi-drive production lines. The coated variant is mandatory for offshore, high-humidity and corrosive industrial environments.

Key Technical Specifications

Product Introduction

The -COAT-ROHS is the heart of every DC converter power drawer, performing all master drive control logic and signal management functions. It is the coated RoHS upgrade version of the standard uncoated base board.

Four Core Functional Modules

1. Closed-Loop DC Motor Control Algorithm ExecutionIt calculates armature current, field excitation current and speed loop PID gains to realize high-precision torque and speed regulation. It supports both simple open-loop operation and high-performance encoder closed-loop vector control for heavy-load industrial DC motors. All control curves, current limits and protection thresholds are stored in non-volatile Flash memory, no backup battery needed.
2. Complete Secondary Signal Acquisition & OutputFront terminal blocks X3~X7 collect digital interlock, emergency stop and limit switch signals, while analog input ports receive pressure, tension and speed feedback transmitters. Analog output channels feed real-time motor torque and speed values to PLC or chart recorders. All signal circuits carry full galvanic isolation to eliminate ground loop interference.
3. DDCS Fiber Communication With Power StageThe optical DDCS bus transmits thyristor firing commands to RVAR and power interface boards, and continuously receives real-time CT current, heat sink temperature and DC bus voltage feedback. Fiber transmission fully isolates high-voltage EMI from the main power circuit to avoid signal distortion and random drive tripping.
4. Expandable Multi-Protocol Fieldbus GatewayThe internal dedicated slot accepts SDCS-COM-81 communication subboards to add PROFIBUS-DP, Modbus RTU and RS232 serial communication interfaces, enabling seamless data exchange with AC800M / 800xA DCS and plant SCADA systems. The integrated watchdog circuit monitors program operation; if abnormal execution is detected, it immediately locks all thyristor firing pulses to protect the motor and power stage.

The exclusive conformal coating treatment makes this COAT variant suitable for offshore, coastal and metallurgical workshops with salt fog and corrosive gas, while the RoHS material formulation meets modern global environmental export requirements. Without a functional -COAT-ROHS, the entire drive cannot execute motor control and will remain in permanent fault lockout status.

QA & Testing SOP (Transparency Building)

1. Incoming Visual Inspection: Cross-chert number and serial number against ABB drive spare parts database to reject counterfeit uncoated mismatched boards; inspect front terminal blocks, DDCS fiber port, communication subboard slot, conformal coating and internal microprocessor circuits for burn marks, discoloration or pin deformation; record serial numbers and production batches for full traceability.
2. Full Rack Linkagst: Mount into standard power drawer test rack, insert matched SDCS-COM-81 communication subboard, supply stabilized 24VDC internal logic power; run 24-hour cyclic testing including closed-loop speed regulation, overload/short-circuit fault trigger, DDCS fiber communication linkage, Flash parameter storage retention, watchdog reset simulation and fieldbus data exchange verification.
3. Electrical Insulation Test: Use insulation resistance tester to confirm isolation resistance ≥ 10 MΩ between low-voltage signal circuits and drive ground base; test chassis ground continuity resistance below 0.5 Ω.
4. Parameter Record Backup: Photograph front terminal block pin assignments and rear DDCS fiber connector wiring sequence for field commissioning reference.
5. Final QC Packaging: Wipe PCB surface with anti-static microfiber cloth, cover all terminal blocks and optical fiber ports with insulating dust caps, place the board into independent ESD shielding bag, attach unified printed QC test tag with technician ID and full 24-hour cyclic control test runtime timestamp, then pack into foam shockproof carton for long-distance power plant transportation.

Installation Pitfalls & 4-Step Replacement Guide

Common Installation Hazards

❗ Lethal DC Bus Residual High Voltage Risk: After cutting off main AC input power, wait minimum 15 minutes for full discharge of DC bus capacitors before pulling out the power drawer and removing board to avoid electric shock.❗ Coated Variant Mandatory For Corrosive Environments: Do not replace coastal/metallurgical cabinet units with uncoated ; lack of conformal coating will lead to rapid PCB oxidation and signal drift within short service life.❗ ESD PCB Damage Risk: Must wear certified anti-static wrist strap during all disassembly and installation work; bare hand contact with internal microprocessor and Flash memory chips permanently impairs control algorithm and parameter storage function.❗ Communication Subboard Slot Misalignment: Forced insertion of SDCS-COM-81 into wrong backplane slots will break signal routing and disable all fieldbus communication.❗ External 24V Power Polarity Reversal: Reverse positive/negative wiring of external auxiliary power will instantly burn the board’s internal logic power supply circuit.

4-Step Board Replacement Guide

1. Pre-install Preparation: Perform full lockout/tagout on three-phase AC main input power, wait 15+ minutes for DC bus capacitor complete discharge, wear ESD wrist strap, photograph DDCS fiber jumper wiring, DI/AI/DO terminal wiring and SDCS-COM communication subboard position inside the power drawer.
2. Removal Operation: Unplug all fiber optical connectors and field terminal signal wires one by one following photographed records, extract the SDCS-COM communication subboard first, unscrew the fixed mounting bolts, detach the old control board from the drawer internal backplane.
3. Installation & x the new board onto the original mounting bracket with standard torque bolts; re-plug DDCS fiber cables and re-terminate all field digital/analog wires strictly following photographed wiring sequence; reinsert SDCS-COM communication subboard into dedicated slot and lock fully.
4. Power-on Commissioning Test: Restore drive auxiliary control power, upload saved motor control parameter set via DriveWindow PC tool; run no-load closed-loop DC motor test, verify stable speed/torque regulation, normal DDCS fiber communication and fault log storage function, confirm fieldbus data uploads continuously to DCS/SCADA system without measurement drift or false protection trips.

FAQ

Q: What is the difference between COAT-ROHS and standard non-coated ?

• : Conformal coated PCB, RoHS compliant; for offshore, high-humidity, salt-fog and corrosive industrial environments such as coastal wind farms and metallurgical mills.
• Standard : No anti-corrosion coating; only for dry indoor standard distribution substation control rooms, not suitable for harsh corrosive environments. The two cannot be cross-replaced in corrosive cabinet layouts.

Q: What is the difference between and older SDCS-CON-2?SDCS-CON-2 is the early single-stage open-loop control board without Flash memory or dedicated communication subboard slot, limited to simple low-performance DC motor applications. features upgraded high-speed microprocessor, dual-stage IDMT/DFT protection curves, Flash non-volatile storage and expandable fieldbus communication, supporting full closed-loop vector control for heavy-load rolling mill and generator excitation systems.

Q: Can be hot-swapped with the drive energized?Strictly prohibited. The board connects to live CT secondary circuits, internal 24V logic power and DDCS fiber communication loops; disassembly under energized conditions will cause immediate drive trip and permanent damage to internal CPU chips. Full main power lockout and capacitor discharge are mandatory before replacement.

Q: What warrantyo stocked boards?Factory-new original coated RoHS PCBs carry 12-month official ABB manufacturer warranty covering motor control algorithm circuits, Flash memory storage, DDCS communication interfaces and I/O signal channels. Bench-tested surplus boards provide 6-month functional warranty; damage caused by DC bus residual voltage shock, power polarity reversal or ungrounded ESD handling voids all warranty terms.

Q: Has ABB discontinued production?Yes, the entire DC drive platform including control board is fully end-of-production. New industrial and renewable energy DC drive projects adopt DCS880 series DC converters with redesigned integratehardware; is only supplied as maintenance spare parts for legacy drive fleets.

Q: What typical faults idefective board?Common failure symptoms: Permanent loss of stored motor parameters after every power cycle (Flash memory failure), unstable DC motor speed oscillation under normal load, random DDCS fiber communication fault alarms without fiber damage, failure to execute overload/short-circuit protection tripping, no data exchange via PROFIBUS/Modbus fieldbus even with intact subboard, watchdog continuous reset leading to repeated drive restarts.
