Product Core Brief
- Model: REF615 HBFEAEAGNDA1ABA1XG
- Brand: ABB
- Series: Relion® 615 Medium Voltage Feeder Protection & Control IED
- Core Function: High-end draw-out intelligent feeder protection device integrating full directional overcurrent, sensitive earth fault, arc flash detection, breaker bay control, high-density binary I/O, precision metering, disturbance recording and full IEC 61850 substation automation for 3–36kV radial/loop/meshed distribution networkseero.
- Product Type: Premium Draw-out Multi-Functional Feeder IED (Plug-in Unit + Matching Draw-out Baseplate)
- Key Specs: Universal 100–240V AC/DC auxiliary supply | 18DI / 13DO full I/O set | Dual redundant PRP Ethernet IEC 61850 GOOSE | 3-channel arc flash sensor interface
- Note: Active OEM production; factory sealed new draw-out assemblies and fully bench load-tested surplus stocked for utility & industrial substation upgrades and emergency maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Order Code | |
| Auxiliary Power (H suffix) | 100–240 VAC / 48–250 VDC universal wide-range supply; max 22W peak draw |
| CT Input Rating (F hardware) | Dual support 1A / 5A phase & neutral CT secondary, software selectable |
| Analog Measurement Channels | 9 galvanically isolated CT/VT inputs for phase current, neutral current, three-phase voltage |
| Binary I/O Layout (E full expansion) | 18 galvanically isolated digital inputs; 13 configurable power relay outputs (trip, breaker control, alarm, TCS supervision) |
| Core ANSI Protection Function Suite | 50/51 multi-stage phase OC, 67 directional phase OC, 51N/67N sensitive directional earth fault, 46 negative sequence unbalance, 49 cable thermal overload, 50BF breaker failure, 79 multi-shot auto-reclose, 27/59 under/overvoltage, HIZ high impedance ground fault, 3-channel arc flash protection |
| Onboard Communication Interfaces | Dual 10/100M PRP redundant RJ45 Ethernet (IEC 61850 Ed2.0, GOOSE, MMS, SNTP time sync); rear RS485 serial port (Modbus RTU / DNP3.0); front optical SPA service port; IRIG-B time sync input |
| Data Recording Capacity | 500 SOE timestamped event logs; 10 full-cycle fault disturbance waveform records; continuous load profile trending storage |

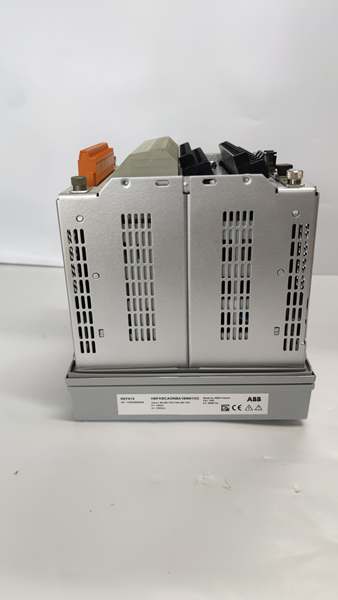

| Draw-out Mechanical Design | Hot-pluggable plug-in unit; baseplate pre-wired with built-in CT shorting links for safe unit swap without CT open-circuit hazards |
| HMI Interface | Full graphical multi-language LCD, 11 configurable LED status indicators, local breaker open/close pushbuttons |
| Front Panel Enclosure Rating | IP54 flush cabinet mount; rear baseplate terminal compartment IP20 |
| Operating Ambient Temp | -10 °C to +55 °C continuous rack operation; short-term -40 °C ~ +70 °C storage |
| Humidity Resistance | <95% RH non-condensing, ISA 71.04 G3 corrosion resistant conformal PCB coating |
| Mechanical Form Factor | 4U half-width 19-inch draw-out assembly |
| Assembly Dimensions | 177 mm W × 177 mm H × 155 mm D |
| Full Unit Weight (IED + Baseplate) | 3.5 kg |
| Compliance Standards | IEC 60255, IEC 61850, UL508, KEMA type-tested, RoHS, SIL2 capable with certified protection logic |
Product Introduction
This premium full-feature variant is configured for complex double-busbar, looped distribution and distributed generation grid bays, equipped with maximum expandable I/O, redundant PRP Ethernet and native arc flash detection unavailable on base REF610 and entry-level models. The full ordering string unlocks the complete directional earth fault, high-impedance ground fault and three-sensor arc flash protection license stack out of the factory.
The draw-out baseplate integrates dedicated CT shorting links, eliminating lethal CT open-circuit risks during unit replacement—only the plug-in IED is extracted while cabinet CT/VT and control wiring remain fixed on the baseplate. Dual PRP Ethernet ports deliver zero-switchover-time redundant substation communication, supporting high-speed GOOSE interlocking between bay IEDs without external network switches.
Embedded programmable logic replaces external auxiliary relay racks for custom bay interlocks, auto-reclosing sequences and load shedding schemes. Disturbance recorders capture pre-fault and post-fault analog waveforms to accelerate post-outage root-cause analysis for overhead and cable feeders. The front SPA optical port enables laptop parameterization without opening live cabinet low-voltage wiring.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full long order code and matching IED/baseplate serial numbers against OEM spare registry to reject mismatched assemblies; inspect graphical LCD, Ethernet RJ45 ports, baseplate CT shorting links and conformal PCB coating for scratches, salt corrosion or moisture residue; log serial batches for full traceability records.
- Live Full Assembly Testing: Mount IED + baseplate to standard 4U test rack, supply stabilized 220V AC/DC auxiliary power, inject 1A/5A switchable CT simulated fault signals, run continuous 24-hour protection element cycling, PRP Ethernet redundant failover stress testing and arc flash sensor input validation with full event/disturbance log recording.
- Electrical Testing: Use Fluke 115 multimeter and insulation resistance tester to verify chassis ground resistance below 0.5Ω and isolation resistance above 10MΩ separating auxiliary power, analog CT/VT and binary control circuit groups; validate mechanical CT shorting link continuity.
- Firmware/Config Backup: Record exact embedded firmware revision via PCM600 configuration tool, photograph baseplate Ethernet DIP address jumpers and RS485 bus switches, export complete protection setting groups, auto-reclose sequences and custom logic to encrypted offline storage.
- Final QC & Packaging: Clean front LCD surface with anti-static microfiber cloth, cap SPA optical port and Ethernet RJ45 ports with dust protective plugs, separate plug-in IED and baseplate into individual ESD shielding bags, attach unified printed QC test tag with technician ID and full 24-hour runtime timestamp before foam-lined shock-resistant transit carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Version Mismatch: Firmware builds newer than site PCM600 software block full directional fault protection upload and disable PRP redundant Ethernet communication; cross-check OEM software compatibility matrix before downloading parameter sets.❗ CT Open-Circuit Safety Hazard: Always engage baseplate built-in CT shorting links before pulling the plug-in IED out; unshorted CT terminals generate lethal high secondary voltage and arc flash hazards during disassembly.❗ PRP Ethernet Port Cross-Wiring: Swapping Port A / Port B redundant RJ45 cables breaks zero-latency network failover; label cable ends during disassembly to match silkscreen port markings on the IED rear panel.❗ RS485 Bus Address Conflicts: Duplicate bay node addressing floods substation Modbus/DNP3 serial bus with broadcast traffic; capture high-resolution photos of baseplate communication DIP jumpers prior to unit removal.❗ Auxiliary Supply Underrating: The full assembly draws peak 22W during simultaneous trip output actuation; shared cabinet DC power supplies with multiple IEDs trigger voltage sag and incomplete relay boot sequences.❗ ESD Dangers: Unwristed technician contact with rear exposed PCB traces corrupts flash-based protection settings and real-time clock backup circuits; field service logs show ungrounded handling destroyed this assembly with over $3,800 in hardware and substation outage labor costs.
4-step draw-out assembly replacement guide
- Pre-install: Lock out and tag out substation auxiliary supply, engage baseplate CT shorting links, fit certified anti-static wrist strap, photograph CT/VT wiring, binary DI/DO terminals, dual Ethernet PRP cabling and RS485 communication jumper positions.
- Removal: Unlatch draw-out unit locking handle, pull the plug-in IED fully out of the fixed wired baseplate (baseplate remains permanently terminated to cabinet wiring). Retain baseplate if undamaged; replace full assembly only if baseplate terminals show corrosion or burn damage.
- Install: If reusing original baseplate: slide new plug-in IED fully into baseplate rail and lock mechanical handle, replicate original Ethernet/RS485 DIP bus address jumpers. If replacing full kit: mount new baseplate to cabinet panel frame, reterminate all CT/VT, control and communication wiring, replicate bus address jumpers, then insert and lock the new IED unit.
- Power-on Test: Restore auxiliary supply power, disengage CT shorting links, upload matching firmware and full protection setting groups, inject simulated phase/earth/arc flash fault signals to validate trip output operation, test manual PRP Ethernet cable disconnection to confirm bumpless redundant communication, verify event logging and stable SCADA GOOSE data exchange.
FAQ (Frequently Asked Questions)
Q: What unique hardware/software features does the full order code include vs basic variants?A: This full configuration delivers universal AC/DC auxiliary supply, maximum 18DI/13DO expanded I/O, dual PRP redundant Ethernet, full directional earth fault + high impedance ground fault protection, three-channel arc flash detection and complete multi-shot auto-reclose logic—all licensed factory standard without additional option modules required.Q: Can the plug-in IED be hot-swapped while baseplate auxiliary power remains energized?A: Mechanical draw-out design permits unit extraction with auxiliary power live only after fully engaging CT shorting links. Never pull the IED without shorting CT circuits—this creates lethal arc flash hazards and permanent CT winding damage. Full cabinet lockout/tagout is recommended for complete baseplate replacement.Q: What warranty coverage applies to stocked full draw-out assemblies with baseplate?A: Factory-new OEM IED kits carry a 12-month manufacturer warranty covering plug-in processing unit, baseplate terminal assembly, Ethernet transceivers and all protection logic functions. Bench-tested surplus full assemblies ship with a 6-month functional warranty; physical damage from CT open-circuit transients, miswiring, arc flash or ungrounded ESD handling voids all coverage terms.Q: Has ABB issued formal EOL documentation for the series?A: No formal end-of-production notice exists; OEM maintains active mass production for new substation projects and legacy plant retrofit spare demand. The older REF610 series is fully EOL and commonly replaced with .Q: Will protection setting groups, auto-reclose logic and custom bay interlock code persist after swapping the plug-in IED onto the existing baseplate?A: All trip curves, fault thresholds and programmable logic reside in the plug-in IED’s internal flash memory. Back up the full project database from the old unit before removal and re-download to the new IED post-install; firmware mismatches corrupt parameter upload sequences and disable directional fault protection algorithms.Q: What communication accessories are compatible with the rear RS485 and dual Ethernet ports?A: Ethernet supports IEC 61850, Modbus TCP, DNP3 TCP/IP with PRP redundancy; terminal supports Modbus RTU and DNP3.0 serial protocols. Optional media converters support fiber optic Ethernet for long-distance substation bus runs; cross-reference the hardware manual for maximum cable distance and baud rate limits.Q: Can this IED be deployed for transformer differential or high-voltage transmission line primary protection?A: Native protection suite is optimized for medium voltage distribution feeder applications only. Transformer differential and high-resolution distance line protection require ABB REF630 series IEDs; this model is suitable for feeder primary protection and backup protection for distribution transformers.
