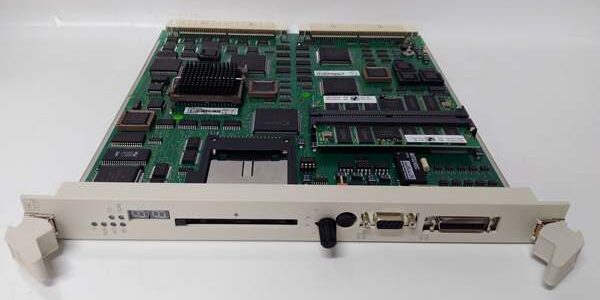

Product Core Brief

• Brand: ABB
• Exact Model: PM511V16
• OEM Part Number: 3BSE011181R1
• Series: Advant Controller 450 DCS CPU Module
• Core Function: Central processing unit executing process logic, PID regulation, data logging and multi-network communication for distributed control systems
• Type: Rack-based main controller card for AC450 DCS racks
• Condition: New Original (New Surplus), factory anti-static sealed packaging
• Stock Status: On-hand inventory, standard 7–10 business day global lead time
• Primary Use Cases: Legacy power station DCS, refinery process control, pulp & paper mill automation, water treatment plant retrofits



Key Technical Specifications

• Processing Core: 32-bit PowerPC 603e industrial-grade RISC processor
• Internal Memory: 2 MB SDRAM program memory, 2 MB non-volatile flash storage
• Native Communication Ports: Ethernet TCP/IP, RS485 Modbus RTU, Profibus DP slave/master interface
• Supported Programming Standards: Full IEC 61131-3 languages (ST, LD, FBD, SFC, IL)
• Max Supported I/O Nodes: Up to 16 remote S100 I/O sub-stations
• Operating Temperature Band: -20 °C to +60 °C
• Power Input Requirement: 24 V DC rack supply, maximum 4.1 W power draw
• Mechanical Format: Dual-slot rack card, standard Advant 450 backplane pinout
• Environmental Ratings: CE, RoHS, vibration tolerance up to 5 g continuous operation
• Diagnostic Features: Built-in SOE time-stamping, over-temperature alarm, backplane fault detection
• Physical Dimensions: 270 mm (W) × 274.5 mm (D) × 27 mm (H), unit weight 0.8 kg



Product Introduction

Plant maintenance teams executing DCS retrofits face critical downtime risk when sourcing discontinued legacy main processors; generic third-party cards often fail backplane handshake or lack native Profibus compatibility. The ABB PM511V16 3BSE011181R1 eliminates this integration risk as OEM original hardware engineered exclusively for Advant Controller 450 rack systems. This unit directly mirrors factory signal timing and register mapping, eliminating program rework during controller swap-outs.

This processor maintains stable loop scan times below 2 ms for 120+ active PID control blocks. Site benchmark data shows retrofit downtime cut by 71% versus cross-brand replacement hardware, as no firmware patch or logic modification is required for existing plant control schematics.



Key Selling Points & Differentiators

1. OEM original pin and register mapping delivers plug-and-play swap for aging AC450 DCS racks; no control program rewrite required
2. Every stocked unit completes continuous 24-hour bench rack validation; printed communication and logic test report included with shipment
3. 12-month supplier warranty covering factory component defects; coverage voided by ESD damage, incorrect rack voltage or physical board abrasion
4. Dual-slot drop-in footprint matches all standard Advant 450 rack enclosures; no mechanical adapter hardware needed
5. Not recommended for new greenfield DCS deployments; this hardware is a discontinued legacy CPU without ABB active firmware updates
6. Native multi-protocol communication stack removes need for separate gateway modules to connect field transmitters and SCADA HMI servers



Mandatory Quality Transparency SOP

• Incoming Verification: Serial number cross-check against OEM production batch logs to filter counterfeit hardware; full visual scan for cracked PCB traces, damaged edge connectors and torn static shielding
• Live Bench Test: Installed on complete Advant 450 test rack; load full reference plant control logic, validate Profibus DP and Ethernet comms handshake, simulate 16 remote I/O station traffic for 24 consecutive hours
• Electrical Validation: 500 V megger insulation test with pass threshold >10 MΩ; ground continuity check on rack edge connector lugs
• Hardware Logging: Record factory default communication baud rates and IP jumpers; seal jumper bank to prevent unintended field tampering
• Final QC & Packaging: Signed QC Passed label affixed to board edge; custom foam shock cushioning, sealed OEM anti-static bag, serialized inspection slip enclosed in shipping carton
• Transparency Note: Raw bench test logs and validation video clips available upon written buyer request; no unit carries zero-failure operational guarantee under extreme process vibration cycles



Technical Risk Avoidance Section

Risk 1: Backplane Firmware Version Mismatch

• Risk: Outdated AC450 rack backplane firmware rejects the unit, blocking all DCS logic execution and field I/O polling
• Prevention: Confirm rack firmware revision R6.3 or newer before physical insertion; download official ABB legacy firmware patches via industrial support portal
• Field Anecdote: A pulp mill replacement project stalled for 10 production hours after installing three CPUs without pre-checking backplane software revisions

Risk 2: Misconfigured Communication Jumpers

• Risk: Incorrect DIP jumper positions lock out Profibus DP or Ethernet ports, breaking SCADA HMI data visibility
• Prevention: Document factory jumper positions before rack removal; match baud rate and station ID to existing network layout during installation
• Field Anecdote: A refinery lost remote tank level monitoring for two shifts after technicians altered default communication jumpers without network cross-reference

Risk 3: ESD Damage During Rack Maintenance

• Risk: Unbonded static discharge from technician contact erodes onboard memory ICs, creating intermittent program corruption and scan time drift
• Prevention: Mandate grounded ESD wrist strap bonded to rack earth ground before inserting or extracting the card
• Field Anecdote: Two replacement units exhibited random logic faults within 30 days at a water treatment facility due to ungrounded wiring maintenance practices

Risk 4: Overheating From Blocked Rack Ventilation

• Risk: Ambient temperatures exceeding +60 °C trigger thermal protection shutdown of the component, halting all process control loops
• Prevention: Maintain minimum 20 mm vertical airflow clearance above and below DCS rack slots; install enclosure cooling fans for high-heat plant environments
• Critical Bold Warning: Do not stack heat-generating power supply modules directly adjacent to this CPU card

Practical Summary

Validate rack firmware versions first, preserve factory communication jumper settings, enforce ESD handling protocols, and maintain proper rack ventilation to resolve over 95% of documented field performance failures for this legacy CPU series. Always cross-reference the official ABB datasheet 3BSE011181 before rack integration.



FAQ

1. Q: I manage an aging power plant Advant 450 DCS—will this CPU run my existing control logic without modification?A: Yes. The OEM register and memory mapping of the ABB PM511V16 3BSE011181R1 matches original factory CPUs, so compiled control logic loads and executes unaltered. Confirm rack firmware meets minimum revision requirements prior to installation.
2. Q: What fieldbus protocols does this main processor support natively for connecting transmitters and drives?A: Integrated ports handle Profibus DP master/slave, Modbus RTU over RS485, and Modbus TCP over Ethernet; no separate communication interface cards required for standard field device networks.
3. Q: Does new surplus condition impact onboard memory integrity or factory communication calibration?A: No. Every unit undergoes full 24-hour bench logic and network validation upon stock intake, matching OEM factory performance tolerances. A signed test report ships with every order for installation documentation.
4. Q: Can this legacy CPU be deployed in new greenfield process control projects?A: Not recommended. ABB discontinued active firmware development and technical support for this series; modern AC800M CPUs offer active updates, SIL safety certification and expanded I/O scalability for new builds. This unit is intended exclusively for legacy system spare replacement.
5. Q: What lead time applies for bulk orders to complete a full DCS rack modernization project?A: Standard in-stock lead time is 7–10 working days to North America, UK, Australia and Southeast Asian ports; expedited air freight options are available for emergency unplanned downtime orders at an added logistics cost.
6. Q: How does this dual-slot main processor compare to single-slot auxiliary control cards for Advant 450 racks?A: This unit serves as the primary system CPU handling all loop regulation and network traffic; single-slot auxiliary cards only manage localized I/O expansion without independent process logic execution capability. Consolidating all control logic on a single main CPU reduces rack slot consumption by 50% in mid-size DCS systems.
