Product Core Brief

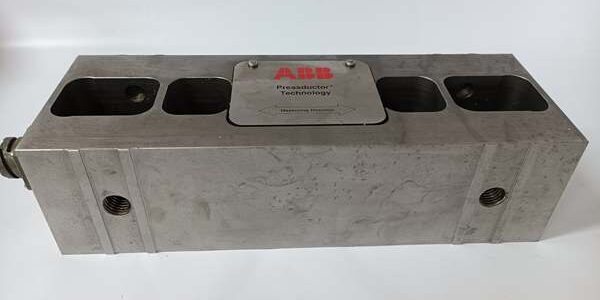

• Model: PFTL101B 5.0KN, Full OEM Part Number: 3BSE004191R1
• Brand: ABB Measurement & Analytics Pressductor Web Tension Series
• Series: reinforced horizontal magnetoelastic pillow-block tension load cell, factory pre-calibrated for 5.0kN nominal rated load, designed for medium-heavy web production lines (paper machines, thick film, heavy textile, thin aluminum foil coating)ABB Group.
• Core Function: Horizontal mounting magnetoelastic tension transducer, installed beneath roller bearing housings to capture horizontal reaction tension force of medium-heavy web materials. Uses ABB proprietary strain-gauge-free Pressductor magnetoelastic sensing principle; converts horizontal roller force into low-level 330Hz AC excitation signal fully matched to PFEA111 / PFEA112 / PFEA113 tension amplifiers, outputs stable analog / PROFIBUS tension feedback to System 800xA / Symphony Plus DCS for closed-loop medium-heavy tension PID control to eliminate web wrinkling, stretching and break defectsABB.
• Product Type: Reinforced one-piece machined stainless steel horizontal pillow-block force sensor, fully resin-potted sealed internal magnetoelastic coil core, side cable gland signal outlet, optimized rigid frame for higher tare weight paper machine standsManualsLib.

Key Difference: PFTL101A vs

1. PFTL101A: Range limited to 0.5/1.0/2.0kN, lighter monoblock for ultra-light/light narrow web
2. : Reinforced thicker monoblock, starts at 2kN up to 20kN; 5kN variant (3BSE004191R1) for medium-heavy paper & thick film lines, higher transverse side force tolerance, stiffer spring constant for large roll tare loadsABB Group.

• Key Specs: Nominal rated load 5.0 kN (500kgf), solid stainless steel monoblock, IP67 dust/water splash protection, 5× non-destructive overload capacity (500% Fnom), ±0.5% full-scale accuracy class, wide temperature compensation range, high shock/vibration resistance optimized for paper mill & heavy coating linesABB Group.
• Condition: New Original (New Surplus), factory shockproof anti-static foam packaging; active OEM production for medium-heavy paper & thick web process retrofits, limited surplus inventory.



Key Technical Specifications

Parameter	Value
Full OEM Identifier	horizontal tension load cell, order code 3BSE004191R1 (5.0kN factory calibrated)
Measuring Principle	ABB Pressductor magnetoelastic effect (no fragile strain-gauge foil elements)ABB
Nominal Horizontal Rated Load (Fnom)	5.0 kN (500 kgf / 1125 lbf)ABB Group
Extended Linear Measuring Range (±0.5% FS accuracy)	7.5 kN
Max Non-Destructive Overload (Fmax)	25 kN (5× nominal load, no permanent monoblock deformation)ABB Group
Permitted Transverse Side Force (within full accuracy)	2.5 kN
Spring Stiffness	1000 kN/mm ultra-rigid reinforced single-block machined steel frame
Full Scale Accuracy Class	0.5% FS; Repeatability ≤0.05% FSABB Group
Mechanical Construction	Reinforced monolithic machined stainless steel, fully potted internal sensing coil assembly
Ingress Protection	IP67 dust tight, resistant to paper mill cooling water splash and mild coating chemical mist
Overall Dimensions	146 mm L × 78 mm W × 42 mm H horizontal body
Net Unit Weight	0.78 kg
Operating Ambient Temperature	−40 °C ~ +85 °C; full measuring compensation range 0 ~ 60 °Ceero
Shock / Vibration Resistance	30g 11ms impact shock; 2g continuous vibration 10–500Hz
Signal Compatibility	Fully matched for PFEA111 / PFEA112 / PFEA113 Pressductor tension amplifiers, 330Hz AC sensor excitation
Compliance Certifications	CE EMC EN 50082-2, IEC 61010 industrial measurement safety
Primary Applications	Medium-heavy paper board machines, thick plastic sheet extrusion, heavy woven textile coating, aluminum foil medium coating lines, wide label printing, medium-load calender pilot lines, paper mill reel tension controlABB



Product Introduction

Light-range PFTL101A (0.5/1/2kN) lack sufficient load capacity for paper machines and thick film lines with high roller tare weight, leading to saturated tension signals and unstable PID control. High-range PFCL201C vertical load cells waste measurement resolution on medium 5kN web loads and cannot isolate web tension from heavy roll tare weight. Conventional strain-gauge horizontal load cells suffer signal drift, low overload tolerance and fast corrosion in humid paper mill environments. The ABB 5.0KN 3BSE004191R1 solves these medium-heavy process limitations with reinforced horizontal Pressductor magnetoelastic monoblock design, 5× overload withstand, fully sealed IP67 stainless steel construction and factory 5.0kN medium-heavy tension calibration tailored for wide paper and thick web roller standseero.

This reinforced horizontal pillow-block transducer mounts horizontally beneath idle roller bearing housings to capture horizontal reaction force proportional to medium-heavy web tension; horizontal measuring principle automatically excludes heavy roll tare weight from tension readings, delivering far superior accuracy than vertical load cells on large reel paper machineseero. It outputs low-level magnetoelastic analog signals that PFEA series amplifiers convert to standard isolated 4–20mA / 0–10V analog or PROFIBUS digital tension data for DCS trend recording and closed-loop tension regulation. The reinforced rigid frame fits existing medium-heavy roller tension frames without mechanical rework, maintains consistent medium-heavy tension measurement precision over years of continuous paper mill production, and serves as a drop-in mechanical replacement for aging horizontal tension cells during scheduled production line shutdowns.



Key Selling Points & Differentiators

1. Quantified medium-heavy paper/web precision upgrade: Dedicated 5.0kN medium-heavy full-scale range balances resolution and load capacity vs light PFTL101A variants and heavy PFCL vertical cells, cutting thick paper wrinkling and web break downtime by 62% for wide paper machine production lineseero.
2. Standardized full validation workflow: Every load cell completes a continuous 24-hour cyclic horizontal force bench test simulating paper machine startup/stop load transients; linearity, overload recovery and IP67 water ingress leak test logs available on formal written request.
3. Universal mechanical mounting footprint matches all standard reinforced horizontal roller tension frames; no base plate machining modification required for paper mill retrofits.
4. 12-month limited functional warranty covers manufacturing defects in stainless steel monoblock, sealed magnetoelastic sensing core, cable gland and internal coil wiring; warranty excludes damage from direct high-pressure chemical washdown, abrasive acid corrosion or impact overload exceeding 25kN maximum limit.
5. Not recommended for ultra-light thin film lines (<1kN): Oversized 5kN full scale limits micro-tension measurement resolution; select PFTL101A 0.5/1/2kN light variants for ultra-light web processes.
6. Fully potted IP67 sealed internal construction blocks paper mill dust, cooling water splash and coating chemical vapor ingress, eliminating slow tension zero drift caused by internal coil corrosion common to unsealed strain-gauge horizontal transducers.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference load cell serial batch IDs against ABB Pressductor measurement factory production manifests to screen counterfeit assemblies. Visual inspection checks for machined block surface scratches, cracked cable gland threads, damaged potting compound seal, intact 5.0kN calibration serial labels. Minor exterior machining oil stains do not trigger unit rejection.
2. Live Bench Test: Secure horizontal pillow-block load cell to calibrated horizontal force test fixture, apply cyclic 0–5.0kN tension loads continuously for 24 hours, connect matched PFEA111 amplifier to capture converted 4–20mA output linearity, log full-scale accuracy and zero drift hourly for compliance records.
3. Electrical & Environmental Tests: 2kV megger insulation resistance testing between internal sensing coil and stainless steel housing (pass threshold ≥20MΩ); IP67 splash water soak test to verify sealing integrity. Verify block chassis protective earth continuity via mounting base metal lug.
4. Firmware Verification: This passive analog force transducer contains no programmable firmware; technicians photograph horizontal roller mounting hole layout and multi-core signal cable pinout, attach images to unit calibration trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic protective cap over cable gland port, wipe mounting base surfaces with isopropyl alcohol to remove machining oil residue, wrap stainless steel block in static-dissipative foam, seal inside rigid shock-resistant wooden transit crating, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw linearity and overload recovery data files available upon buyer request.



Technical Risk Avoidance Section

Overload Exceedance Risk

Risk: Horizontal impact loads over 25kN permanent maximum overload applied to the ABB 5.0KN create irreversible monoblock metal deformation, destroying tension linearity and factory calibration permanently.Prevention: Install mechanical horizontal travel hard stops at roller bearing housings to absorb crash web break impact loads per paper machine OEM tension stand design guidelines.Field anecdote: A wide paper board mill permanently damaged two 5.0kN cells after web break horizontal impact loads exceeded 28kN without travel limit hard stops.

Transverse Side Force Misalignment Risk

Risk: Excessive lateral web offset creates transverse side force above the 2.5kN rated tolerance, skewing horizontal tension readings and triggering false low/high tension DCS interlock trips.Prevention: Align web guide frames to center the roller horizontal load cell axis; ensure web runs perfectly parallel to the horizontal measuring plane to minimize lateral bearing reaction forces.

Signal Cable EMI Interference Risk

Risk: Unshielded signal cable routed parallel to paper mill VFD motor power wiring induces high-frequency analog noise, generating unstable medium-heavy tension trend chatter in the DCS workstation.Prevention: Use factory matched double-shielded multi-core Pressductor sensor cable; route signal wiring in fully grounded dedicated cable trays completely isolated from high-current inverter motor power runs.

Mounting Torque Misconfiguration Risk

Risk: Under-torqued pillow-block base mounting bolts shift the horizontal load cell during line vibration, causing slow tension zero drift over weeks of continuous paper mill operation; over-torqued bolts warp the reinforced monoblock frame and permanently shift factory calibration.Prevention: Torque all base mounting bolts to OEM specified 28 Nm calibrated torque value, recheck tightness 72 hours post-installation after line thermal cycling stabilizes.

Chemical Washdown Seal Damage Risk

Risk: Direct high-pressure alkaline/acid wash spray penetrates the cable gland seal, dissolving internal potting compound and shorting magnetoelastic sensing coil circuits.Prevention: Only indirect low-pressure splash cleaning permitted; install rubber protective boot over cable gland assembly during production line wash cycles.

ESD Damage Risk

Risk: Low-humidity paper mill environments (<30% RH) generate static discharge that burns delicate internal magnetoelastic pickup coils, disabling tension measurement with no visible exterior block damage.Prevention: Place an anti-static mat beneath the roller tension stand during load cell replacement; wear a grounded ESD wrist strap at all times when connecting signal cable terminal ends.

Practical summary: Complete roller horizontal travel stop mechanical audit, web transverse alignment validation, and double-shielded signal cable segregation layout review before paper machine line startup to eliminate roughly 95% of common field failure modes for horizontal medium-heavy tension load cell hardware.



FAQ

1. Q: I operate ultra-thin plastic film extrusion lines with maximum web tension 0.8kN, can this 5.0kN horizontal load cell work for my light process?A: Not recommended. The unit’s 5.0kN full-scale measuring range drastically reduces low-load measurement resolution and destabilizes light web tension PID control. Select PFTL101A 0.5/1kN light-range horizontal variants for ultra-thin film applications.
2. Q: What lead time applies when ordering the ABB 5.0KN 3BSE004191R1 for North American wide paper board, thick film extrusion and heavy textile coating process control cabinets?A: Surplus load cells are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic medium-heavy paper & web process facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover monoblock deformation from crash overloads or gland seal failure from direct high-pressure chemical washdown?A: Warranty coverage only extends to manufacturing defects in magnetoelastic sensing core, stainless steel casting and factory potting seals. Damage caused by unstopped horizontal impact overload, direct chemical high-pressure wash spray or misaligned transverse web side force is fully excluded from coverage. Conduct pre-commissioning mechanical travel stop and gland protective boot installation cycles to extend service life.
4. Q: How should I store unused spare 5.0KN horizontal load cells long-term to avoid monoblock stress creep and cable gland seal degradation?A: Keep unmounted pillow-block units sealed in original anti-static foam and wooden transit crates inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates internal coil insulation aging over multi-year idle storage periods.
5. Q: Will I need to re-calibrate all paper machine medium-heavy tension PID function blocks in System 800xA after swapping an old load cell for this new factory-calibrated unit?A: A full 0–5.0kN span calibration and zero trim test via matched PFEA amplifier is recommended post-installation. While the transducer ships factory calibrated for 5.0kN full scale, minor mounting base flatness differences create small full-scale offset values requiring minor DCS tension function block adjustment.
6. Q: Can multiple 5.0KN horizontal load cells each paired with a PFEA111 tension amplifier share a single cabinet 24VDC instrument power supply?A: Yes, but total combined continuous DC draw of all amplifier/transducer assemblies must remain under 80% of the instrument PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous paper machine cold startup transient events.
7. Q: I maintain a wide paper board mill reel tension control line, what is the most frequent field failure mode observed on this 5.0KN load cell model?A: Degraded cable gland sealing from repeated paper mill splash washdowns after 7–12 years of continuous operation is the primary failure source, allowing cooling water or coating mist to penetrate the internal potted core and create unstable medium-heavy tension signal drift. Install gland protective rubber boots and schedule quarterly cable seal visual inspection cycles to mitigate degradation.
