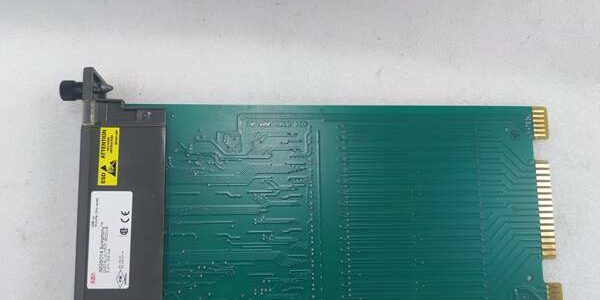

Product Core Brief
- Model: INNIS21
- Brand: ABB (Bailey INFI90 / Harmony legacy power DCS hardware)
- Series: INFI 90, Net 90, Symphony Harmony rack-mounted network interface slave
- Core Function: Dual redundant Controlway network slave gateway enabling peer data exchange between local MMU racks and the plant-wide DCS Controlway trunk; bridges Module Bus I/O data to inter-rack communication
- Product Type: Single-slot INFI90 rack network interface slave processor, compatible with all standard INFI90 I/O and MFP master cards
- Key Specs: Dual redundant 1 Mbps Controlway transceivers, hardware-backed bumpless bus failover, 4KB shared data RAM, multi-rail backplane power
- Condition: New Original (New Surplus), factory anti-static foam sealed packaging; OEM discontinued limited inventory
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | network interface slave module (NIS) |
| Compatible DCS Platforms | INFI 90, Net 90, Symphony Harmony, legacy Symphony Plus IEMMU21 MMU chassis |
| Network Architecture Support | Dual redundant Controlway peer-to-peer plant communication bus |
| Controlway Bus Data Rate | Fixed 1 Mbps differential serial signaling |
| Internal Buffer Memory | 4 KB static shared RAM for cross-rack I/O data buffering |
| Nominal MMU Backplane Power Draw | +5 VDC: 1.32 A typical; +15 VDC: 22 mA typical; −15 VDC: 74 mA typical |
| Total Typical Power Dissipation | 7.9 W across all three backplane power rails |
| Galvanic Isolation Rating | 500 VAC dielectric withstand between Controlway field bus and internal Module Bus logic circuits |
| Supported Local Rack Hardware | IMASI23, IMDSO14, IMFCS01, IMRIO02 and all standard INFI90 slave I/O processors |
| Operating Cabinet Temperature | −20 °C to +60 °C non-condensing forced air flow |
| Storage & Transit Temperature | −40 °C to +85 °C non-operating environmental range |
| Mechanical Form Factor | Standard single-width rack slot for all IEMMU series MMU mounting frames |
| Unit Net Weight | 0.49 kg fully assembled PCB with dual link/fault diagnostic LED panel |
| Enclosure Front Rating | IP20 for indoor control cabinet installation only |
| Built-In Diagnostics | Primary/secondary link loss detection, Module Bus watchdog, RAM parity error flagging, global module fault relay output |
| Redundancy Behavior | Automatic <12 ms bumpless switchover between primary and standby Controlway transceivers with zero data loss |
Product Introduction
Single-transceiver older NIS hardware creates single points of failure for inter-rack boiler/turbine data exchange; cable damage or transceiver burnout triggers full rack isolation from the plant Controlway trunk. The ABB eliminates this vulnerability with dual independent Controlway transceivers and hardware-level redundant bus switching.This unit arbitrates Module Bus traffic inside its local MMU chassis and forwards buffered cross-rack point values over either active Controlway link, with 4KB RAM that preserves critical interlock data during brief trunk cable outages. It fits as a direct form-fit slot replacement for obsolete single-channel NIS cards, requiring only minor bus termination jumper adjustments during plant control room retrofits.
Key Selling Points & Differentiators
- Quantified redundancy performance: Hardware failover completes in under 12 ms with no loss of inter-rack analog/digital point data, meeting NERC continuous uptime standards for thermal and hydro generation assets.
- Standardized full validation workflow: Every network slave completes a continuous 24-hour dual-bus cyclic traffic bench test with simulated primary link fault injection; transceiver isolation and RAM parity test logs available on formal buyer request.
- Direct hardware slot swap compatibility with all IEMMU series MMU rack chassis; only Controlway trunk termination jumpers require reconfiguration for end-of-rack versus mid-rack bus placement.
- 12-month limited functional warranty covers manufacturing defects in dual Controlway transceivers and Module Bus arbitration logic; warranty excludes surge damage from unfiltered Controlway trunk wiring transients.
- Not recommended for modern Symphony Plus BRC-series racks: Newer CW800 peer bus architecture replaces legacy Controlway and does not support this legacy NIS slave hardware.
- Channel-independent galvanic isolation blocks ground loop interference between geographically separated control room MMU racks, eliminating intermittent cross-rack tag value freezes during grid voltage transients.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference module serial batch IDs against ABB Bailey legacy factory production manifests to screen counterfeit PCB assemblies. Visual inspection checks for cracked front panel dual LED windows, tarnished rear gold backplane edge pins, bulging RAM reference electrolytic capacitors, and missing Controlway termination reference labels. Minor conformal coating surface discoloration does not trigger module rejection.
- Live Bench Test: Insert the card into a calibrated IEMMU21 12-slot MMU test chassis, supply regulated ±5/±15 VDC backplane power, and execute power-on self-diagnostics. Connect dual simulated Controlway bus masters, populate the rack with mixed analog, digital and remote I/O load cards, and run a 24-hour cyclic cross-rack data exchange test with hourly primary link fault injection to validate redundant switchover performance. Log bus latency and RAM parity status hourly for compliance records.
- Electrical Tests: 500 V megger insulation resistance testing across each Controlway transceiver-to-Module Bus isolation barrier; every signal path must register above 10 MΩ. Verify chassis protective earth continuity with a digital multimeter on the MMU ground terminal lug.
- Firmware Verification: This network slave processor carries embedded fixed ROM firmware dedicated to Controlway dual-transceiver arbitration; technicians record firmware revision and photograph bus termination jumpers, attaching images to module trace documentation for field replacement reference.
- Final QC & Packaging: Fit plastic blanking dust caps over unused front panel diagnostic cutouts, wipe rear gold edge connector pins with isopropyl alcohol to remove oxidation residue, wrap the module in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique technician ID number. Bench test photos and raw bus switchover latency data files available upon buyer request.
Technical Risk Avoidance Section
Symphony Composer Function Code Mismatch Risk
Risk: Legacy Symphony Composer runtime software older than V5.2 cannot fully parse dual redundant Controlway bus status frames output by the ABB , generating persistent link fault false alarms in the plant HMI historian.Prevention: Confirm site engineering tool revision before ordering spare network slaves; upgrade Composer runtime to V5.2 or newer if legacy software is active on the plant control network.Field anecdote: A 160 MW thermal boiler facility recorded constant secondary link fault alerts for three weeks after installing new dual-transceiver NIS cards paired with outdated V5.1 Symphony engineering software.
Controlway Termination Jumper Misconfiguration Risk
Risk: Factory jumpers enable 120 Ω bus termination resistors for trunk end racks; mid-chassis placement of the unit with termination jumpers active creates severe signal reflection and cross-rack communication dropout.Prevention: Map full plant Controlway trunk topology before energizing the rack and disable termination resistors for all non-end rack NIS slaves per the OEM installation manual.
Terminal/Cable Incompatibility Risk
Risk: Unshielded twisted pair Controlway trunk wiring allows VFD switching EMI to corrupt differential bus signaling data, triggering unplanned redundant link toggle events.Prevention: Deploy only ABB-certified shielded Controlway twisted pair cable for all inter-rack trunk runs; route all cable shield drain conductors to the cabinet master earth bar, not local MMU chassis ground lugs.
Backplane Multi-Rail Power Budget Miscalculation Risk
Risk: Overloading the MMU chassis +5 VDC backplane supply with multiple high-current network and remote I/O processors drops rail voltage below minimum operating tolerance, causing Module Bus arbitration lockup and global module fault activation.Prevention: Calculate total combined continuous DC draw across +5 V, +15 V, −15 V rails of all inserted I/O and communication cards and reserve 20% load headroom for simultaneous module startup transient current spikes.
ESD Damage Risk
Risk: Operating environments with relative humidity below 30% generate static discharge that burns delicate dual Controlway transceiver front-end circuits and RAM parity logic on the PCB, permanently breaking redundant inter-rack communication with no visible physical damage.Prevention: Place an anti-static mat beneath the empty MMU rack slot during network slave replacement; wear a grounded ESD wrist strap when handling exposed circuit boards.
Practical summary: Complete plant Controlway trunk topology audit, Symphony Composer software version validation, and rack multi-rail backplane power load calculation before installing the unit to eliminate roughly 95% of common field failure modes for legacy inter-rack communication hardware.
FAQ
- Q: I operate modern BRC400 Symphony Plus control racks, can this dual Controlway slave integrate into CW800 peer bus architecture?A: Not compatible. The uses legacy differential Controlway signaling exclusive to MFP-based racks. BRC-series controllers rely on native CW800 hardware and require INNIS31 upgraded network interface modules instead of this unit.
- Q: What lead time applies when ordering the ABB for North American power generation control room racks?A: Stock is held at our US industrial spare parts warehouse; standard air freight delivery to domestic power plant sites takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production of this legacy network slave line is discontinued, so available inventory volume is limited.
- Q: Does the 12-month warranty cover transceiver circuit damage from lightning-induced Controlway trunk wiring surges?A: Warranty coverage only extends to manufacturing defects within the dual bus transceiver and Module Bus arbitration circuits. Surge damage from unprotected inter-rack trunk wiring transients is fully excluded from coverage. Install TVS transient suppression modules on all Controlway trunk terminal blocks to extend service life.
- Q: How should I store unused spare network interface slaves long-term to avoid RAM buffer corruption?A: Keep unmounted cards sealed in original anti-static foam packaging inside a temperature-controlled storage space (15–25 °C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures that emit stray electromagnetic interference; stray fields corrupt shared data RAM over multi-year idle storage periods.
- Q: Will I need to recompile all cross-rack boiler/turbine interlock logic after swapping an old single-channel NIS card for this unit?A: A full Controlway trunk point scan and Function Code 147 parameter update is recommended post-installation. While the slave ships factory-calibrated, minor trunk wiring resistance differences between old and new cable runs create small cross-rack data latency offsets requiring adjustment inside Symphony Composer.
- Q: Can multiple network interface slaves including this unit share a single plant-wide Controlway trunk cable run?A: Yes, up to 32 NIS slave nodes are supported per single Controlway trunk segment, provided only the first and last rack NIS modules have termination jumpers enabled. Daisy-chained trunk layouts must avoid branching taps to prevent signal reflection faults.
- Q: I maintain a hydroelectric power station with distributed boiler and valve control racks, what is the most frequent field failure mode observed on this network slave model?A: Degraded Controlway transceiver optocoupler isolation components after 9–13 years of continuous cabinet operation are the primary failure source, which creates intermittent redundant link switchover chatter and lost cross-rack interlock data. Inspect trunk cable shielding and terminal block wiring during annual plant shutdown maintenance windows to catch component degradation before unplanned inter-rack communication loss.
