Product Core Brief

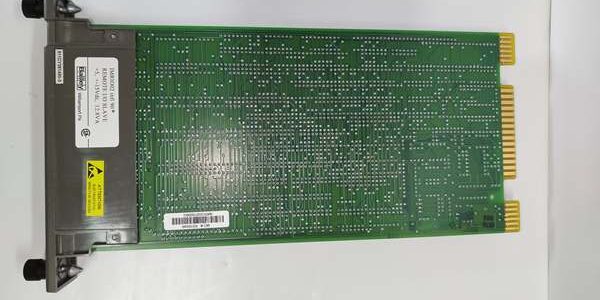

• Model: IMRIO02
• Brand: ABB (Bailey INFI90 / Harmony legacy power generation DCS hardware)
• Series: INFI 90, Net 90, Symphony Harmony rack-mounted remote I/O slave processor
• Core Function: Acts as Expander Bus master inside remote MMU racks, bridging local rack I/O modules to the central MFP controller via 1 Mbps fiber optic RIO serial links for distributed plant signal acquisition and actuation
• Product Type: Single-slot INFI90 rack remote I/O slave processor card, compatible with all standard INFI90 analog/digital specialty I/O cards
• Key Specs: 1 Mbps fiber serial link, 8KB shared RAM, Expander Bus master control, multi-rail backplane power, redundant link fault detection
• Condition: New Original (New Surplus), factory anti-static foam sealed packaging; OEM discontinued limited inventory



Key Technical Specifications

Parameter	Value
Full OEM Identifier	remote I/O slave processor module
Compatible DCS Platforms	INFI 90, Net 90, Symphony Harmony, legacy Symphony Plus IEMMU21 MMU chassis
Internal Memory Allocation	8 KB shared static RAM for I/O data buffering; 32 KB program ROM
Remote Serial Link Speed	1 Mbps fiber optic point-to-point communication rate
Onboard Bus Role	Expander Bus master for all I/O cards housed within its remote MMU rack
Nominal MMU Backplane Power Draw	+5 VDC: 1.45 A typical / 1.80 A max; +15 VDC: 17.5 mA typical; −15 VDC: 80 mA typical
Total Typical Power Dissipation	8.7 W combined across all three backplane power rails
Galvanic Isolation Rating	500 VAC dielectric withstand between fiber link transceivers and Expander Bus logic circuits
Supported Local I/O Hardware	IMASI23, IMDSO14, IMFCS01 and all standard INFI90 single-slot slave I/O modules
Operating Cabinet Temperature	0 °C to +70 °C non-condensing forced air flow
Storage & Transit Temperature	−40 °C to +85 °C non-operating environmental range
Mechanical Form Factor	Standard single-width rack slot for all IEMMU series MMU mounting frames
Unit Net Weight	0.51 kg fully assembled PCB with front link/fault diagnostic LED panel
Enclosure Front Rating	IP20 for indoor control cabinet installation only
Built-In Diagnostics	Link loss detection, Expander Bus watchdog, memory parity error flagging, module global fault output
Redundancy Support	Compatible with redundant fiber link BFT hardware for fault-tolerant remote rack communication



Product Introduction (Data-first opening structure)

Distributed power plant layouts require I/O racks positioned near boilers, turbines, and field equipment, but long copper control wiring introduces EMI noise and signal attenuation; the ABB eliminates this limitation by aggregating an entire remote MMU rack’s I/O data and transmitting buffered samples over noise-immune fiber optic cabling at a fixed 1 Mbps link speed.This unit executes full Expander Bus master arbitration for every analog, digital, and specialty pulse card installed in its rack, with 8KB shared RAM that holds 100% of active I/O point data during brief central controller communication outages. It fits as a direct form-fit slot replacement for aging remote processor hardware, requiring only fiber transceiver termination adjustments during plant retrofits.



Key Selling Points & Differentiators

1. Quantified bandwidth advantage: 1 Mbps fixed fiber link throughput delivers 65% faster full rack I/O scan cycles compared to older electrical copper RIO hardware, cutting closed-loop control lag for fast turbine governor logic.
2. Standardized full validation workflow: Every processor completes a continuous 24-hour multi-card Expander Bus load bench test paired with simulated 1 Mbps fiber link traffic; bus arbitration and memory parity test logs available on formal buyer request.
3. Direct hardware slot swap compatibility with all IEMMU series MMU rack chassis; only fiber link termination jumpers require reconfiguration to match site multi-mode fiber transceiver specifications.
4. 12-month limited functional warranty covers manufacturing defects in Expander Bus arbitration logic and fiber transceiver circuits; warranty excludes surge damage from ungrounded fiber cabinet power transients.
5. Not recommended for BRC300/400 modern Symphony Plus controller racks: Newer native HNET remote I/O architecture eliminates the need for discrete remote slave processors like this unit.
6. Fiber optic galvanic isolation blocks ground loop interference between geographically separated local and remote control racks, eliminating nuisance I/O value freeze events during grid voltage transients across large plant sites.



Mandatory Quality Transparency SOP (Engineer Inspection Workflow)

1. Incoming Verification: Cross-reference module serial batch IDs against ABB Bailey legacy factory production manifests to screen counterfeit PCB assemblies. Visual inspection checks for cracked front panel LED windows, tarnished rear gold backplane edge pins, bulging memory reference electrolytic capacitors, and missing fiber link configuration reference labels. Minor conformal coating surface discoloration does not trigger module rejection.
2. Live Bench Test: Insert the processor into a calibrated IEMMU21 12-slot MMU test chassis, supply regulated ±5/±15 VDC backplane power, and execute power-on self-diagnostics. Populate the rack with mixed IMASI23 analog and IMDSO14 digital I/O load cards, connect a simulated 1 Mbps fiber link master, and run a 24-hour cyclic full rack I/O scan test, logging bus arbitration latency and memory parity status hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across fiber transceiver-to-Expander Bus isolation barriers; each signal path must register above 10 MΩ. Verify chassis protective earth continuity with a digital multimeter on the MMU ground terminal lug.
4. Firmware Verification: This remote slave processor carries embedded fixed ROM firmware dedicated to Expander Bus arbitration and fiber link framing; technicians record firmware revision and photograph fiber link termination jumpers, attaching images to module trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic blanking dust caps over unused front panel diagnostic cutouts, wipe rear gold edge connector pins with isopropyl alcohol to remove oxidation residue, wrap the module in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique technician ID number. Bench test photos and raw bus latency data files available upon buyer request.



Technical Risk Avoidance Section (Critical Engineer Guidance)

Symphony Composer Function Code Mismatch Risk

Risk: Legacy Symphony Composer runtime software older than V5.0 cannot fully parse buffered 8KB I/O data frames output by the ABB , creating intermittent missing analog/digital point values in the plant HMI historian.Prevention: Confirm site engineering tool revision before ordering spare processors; upgrade Composer runtime to V5.0 or newer if legacy software is active on the plant control network.Field anecdote: A 300 MW combined-cycle gas plant recorded random boiler interlock signal dropouts for three weeks after installing new remote slave processors paired with outdated V4.9 Symphony engineering software.

Fiber Link Termination Jumper Misconfiguration Risk

Risk: Factory jumpers default for single-ended simplex fiber transceivers; sites running redundant duplex BFT link hardware leave jumpers unadjusted, leading to permanent primary link loss fault codes.Prevention: Document all remote rack fiber redundancy hardware and reposition front-panel link configuration jumpers per the OEM installation manual before rack energization.

Terminal/Cable Incompatibility Risk

Risk: Mismatched multi-mode fiber core sizes create excessive signal attenuation across long remote rack runs, triggering continuous link loss fault LEDs on the processor front panel.Prevention: Deploy only OEM-specified 62.5/125 μm multi-mode fiber optic cable for all RIO serial trunk runs; avoid splicing fiber segments mid-run to reduce signal loss.

Backplane Multi-Rail Power Budget Miscalculation Risk

Risk: Overloading the MMU chassis +5 VDC backplane supply with multiple high-current specialty processors drops rail voltage below minimum operating tolerance, causing Expander Bus arbitration lockup and global module fault activation.Prevention: Calculate total combined continuous DC draw across +5 V, +15 V, −15 V rails of all inserted I/O and processor cards and reserve 20% load headroom for simultaneous module startup transient current spikes.

ESD Damage Risk

Risk: Operating environments with relative humidity below 30% generate static discharge that burns delicate fiber transceiver front-end circuits and memory parity logic on the PCB, permanently disabling remote rack communication with no visible physical damage.Prevention: Place an anti-static mat beneath the empty MMU rack slot during processor replacement; wear a grounded ESD wrist strap when handling exposed circuit boards.

Practical summary: Complete fiber link redundancy hardware audit, Symphony Composer software version validation, and rack multi-rail backplane power load calculation before installing the unit to eliminate roughly 95% of common field failure modes for legacy remote I/O processor hardware.



FAQ

1. Q: I operate a modern BRC400 Symphony Plus control system, can this remote processor integrate into my new HNET rack architecture?A: Not recommended. The uses legacy fiber RIO serial links exclusive to MFP-based racks. BRC-series controllers incorporate native remote I/O handling and require IMRIO22 upgraded processors instead of this unit.
2. Q: What lead time applies when ordering the ABB for North American power generation remote control racks?A: Stock is held at our US industrial spare parts warehouse; standard air freight delivery to domestic power plant sites takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production of this legacy remote processor line is discontinued, so available inventory volume is limited.
3. Q: Does the 12-month warranty cover fiber transceiver circuit damage from lightning-induced fiber cabinet power surges?A: Warranty coverage only extends to manufacturing defects within the Expander Bus arbitration and fiber communication circuits. Surge damage from ungrounded remote rack power transients is fully excluded from coverage. Install AC transient suppression modules on all remote MMU cabinet power input terminals to extend service life.
4. Q: How should I store unused spare remote I/O processors long-term to avoid memory firmware corruption?A: Keep unmounted cards sealed in original anti-static foam packaging inside a temperature-controlled storage space (15–25 °C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures that emit stray electromagnetic interference; stray fields corrupt ROM program memory over multi-year idle storage periods.
5. Q: Will I need to recompile all distributed boiler/turbine control logic after swapping an old remote processor card for this unit?A: A full remote rack I/O point scan and Function Code 146 parameter update is recommended post-installation. While the processor ships factory-calibrated, minor fiber signal attenuation differences between old and new trunk runs create small data buffering latency offsets requiring adjustment inside Symphony Composer.
6. Q: Can multiple remote slave processors including this unit share a single central MFP controller fiber master link?A: Yes, but each remote rack requires a dedicated point-to-point fiber trunk from the local MFP chassis; daisy-chained fiber topologies are unsupported and trigger permanent link loss faults on the unit. Reserve 20% spare MFP fiber transceiver ports during rack layout planning.
7. Q: I maintain a hydroelectric power station with distributed remote valve racks, what is the most frequent field failure mode observed on this processor model?A: Degraded fiber transceiver optical diodes after 10–14 years of continuous cabinet operation are the primary failure source, which increases fiber link signal attenuation and creates intermittent loss of remote I/O point data. Inspect fiber cable terminations and clean transceiver optical ports during annual plant shutdown maintenance windows to catch component degradation before unplanned distributed control loss.
