Product Core Brief

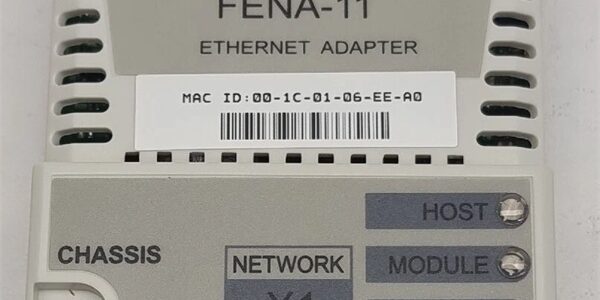

- Model: FENA-11
- Brand: ABB
- Series: FENA Drive Ethernet Fieldbus Adapter Family
- Core Function: Installs to ABB ACS inverter control unit slots to enable multi-protocol industrial Ethernet communication between drives and PLC/HMI systems.
- Product Type: Single-Port Ethernet Fieldbus Adapter Module
- Key Specs: 1×RJ45 10/100 Mbps | PROFINET IO / EtherNet/IP / Modbus TCP | IP20 Condition: New Original (New Surplus)
Product Introduction
The ABB is a compact single-slot Ethernet fieldbus accessory engineered for mid-range and high-performance ABB ACS variable frequency drives. It translates native drive internal bus data to three mainstream industrial Ethernet protocols via configurable drive parameters.Well, technically it shares physical slot mounting with dual-port FENA-21 adapters, yet the ABB uses a single RJ45 port for simplified star network topologies and cuts internal bus cycle overhead down to 0.4 ms under full 16-word process data exchange.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Identifier | single-port Ethernet adapter |
| Compatible Drive Platforms | ACS355, ACSM1, ACS850, ACQ810, ACS580, ACS880 series inverters |
| Supported Industrial Protocols | PROFINET IO DP-V1, EtherNet/IP, Modbus TCP (selectable via drive parameter) |
| Ethernet Physical Layer | IEEE 802.3/802.3u, auto-sensing 10/100 Mbps half/full duplex |
| External Interface | Single RJ45 X1 port with tri-color link/activity/diagnostic LEDs |
| Drive Internal Connection | 20-pin edge connector for control unit backplane slot |
| Process Data Word Capacity | Up to 16 input / 16 output 16-bit register words per cycle |
| Operating Ambient Temperature | -20 °C to +60 °C inside drive cabinet |
| Storage Temperature Range | -40 °C to +85 °C non-operating transit |
| Enclosure Protection Rating | IP20, for internal drive cabinet installation only |
| Dielectric Isolation | 500 V AC isolation between drive internal bus and Ethernet circuits |
| Typical Power Draw | 0.8 W powered entirely from drive control unit slot |
| Mechanical Mount | Locking plastic latch + single retention screw |
| Unit Net Weight | 0.07 kg fully assembled |
| Compliance Standards | EN 61800-3 EMC, CE, UL recognized industrial control hardware |
Quality Control Process
- Incoming Verification: Cross-reference module serial numbers against ABB drive accessory factory batch logs to reject counterfeit adapters. Visual inspection checks for cracked RJ45 port housings, bent 20-pin edge connector pins, or faded diagnostic LED silkscreen (—minor plastic molding flash passes QA screening).
- Live Functional Test: Seat the adapter into a calibrated ACS880 test drive control slot, power the inverter, and execute power-on self-test. Establish stable Modbus TCP / PROFINET handshake with a Siemens PLC master, then run a 24-hour continuous cyclic speed/torque data exchange load test with hourly communication latency logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance between drive side and Ethernet side; all isolation paths must register above 10 MΩ. Confirm drive cabinet protective earth continuity via Fluke 115 multimeter across the drive PE terminal.
- Firmware Verification: Read embedded FENA stack firmware revision via Drive composer PC tool, log the version to unit trace paperwork, photograph protocol selection parameter group screenshots as field replacement reference records.
- Final QC & Packaging: Clear dust from the RJ45 socket with dry compressed air, cap the Ethernet port with factory plastic dust plug, seal the module inside anti-static shielding bag, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: ACS880 drives running control firmware v2.0 or older cannot parse extended 32-bit transparent data frames from newer ABB firmware v1.8. Upgrade drive runtime software or source legacy adapter revisions to avoid communication timeout faults.
- DIP Switch / Jumper Misconfiguration: The adapter has no physical jumpers; incorrect protocol parameter selection in the drive will render ABB unresponsive on the plant Ethernet network. Always match protocol to PLC master hardware topology.
- Terminal / Cable Incompatibility: Standard CAT5e twisted pair cabling is required; CAT3 legacy cabling fails 100 Mbps PROFINET full-duplex negotiation when paired with ABB hardware. Route all cable shield drain wires directly to drive cabinet master earth bar, not local terminal ground strips.
- Power Supply Mismatch: The draws power exclusively from the drive control slot; undervoltage DC bus conditions below rated drive minimum input voltage drop internal slot supply and trigger adapter offline faults mid-operation. Maintain ±10% nominal mains input for all connected inverters.
- ESD Damage: Static discharge risk spikes heavily at plant humidity below 30%. Place an anti-static mat under the drive cabinet during adapter swaps; bare contact with the 20-pin edge connector traces corrupts Ethernet transceiver IC logic instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → : Direct — Exact slot pinout, protocol stack, and port drop-in replacement
- → FENA-21 : Needs Adaptation — Dual-port design, drive slot wiring unchanged but full network topology reconfiguration required
- → EI813F : Incompatible — Freelance DCS rack Ethernet module cannot mount into ACS drive control unit slots
- → FAU810 : Incompatible — Flame safety DIN rail processor lacks drive slot edge connector hardware
Benchmarks
- Cyclic process data exchange latency: 0.4 ms (simulated load, 16 in / 16 out register words)
- Ethernet communication speed: 100 Mbps full-duplex (PROFINET IO standard operating mode)
