Product Core Brief

• Model: AX722F, OEM Article Code 3BDH000377R0001
• Brand: ABB
• Series: S700 Distributed I/O for Freelance AC700F / AC900F Controllers
• Core Function: Combines 8 multi-type analog input channels and 8 configurable analog output channels to measure process variables and drive modulating field actuators over Profibus DP.
• Product Type: DIN rail mixed analog input/output I/O module
• Key Specs: 8 AI + 8 AO mixed channels | 12-bit plus sign conversion | Module-wide galvanic field-to-logic isolationNote: Active OEM spare, new original surplus stock available; no onboard HART modem circuitry, compatible with TU715F / TU716F terminal units.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, typical draw 100 mA, max power dissipation 5 WABB Group
• Analog Input supported signals: ±10 V, 0/4–20 mA, Pt100 / Pt1000 / Ni1000 RTD, passive 24 V DC digital contact sensingABB Group
• Analog Output channel breakdown: 4 universal AO (0–10 V / ±10 V / 0/4–20 mA); 4 fixed ±10 V voltage-only AOABB Group
• Conversion resolution: 12-bit with sign bit for bipolar ranges; temperature readout resolution 0.1 °CABB
• Full 16-channel combined scan cycle: ≤ 120 ms total refresh rate
• AO max loop load resistance: 750 Ω for current outputs; minimum 22 kΩ for voltage outputs
• Measurement accuracy: Max ±0.1 % full scale at 25 °C ambient, temperature drift ≤50 ppm/°C
• Galvanic isolation: Entire field circuit group isolated from internal logic, 1500 VAC 1-minute dielectric withstand; no channel-to-channel separationABB Group
• Circuit protection: Per-channel self-resetting PTC limiting for input overvoltage and output short-circuit events
• Built-in diagnostics: AI wire-break detection for current/RTD loops, AO open-loop flagging, module supply under-voltage supervision, over/under-range alarms
• PCB coating: ISA-S71.04 G3 grade conformal coating for mild corrosive cabinet atmospheres

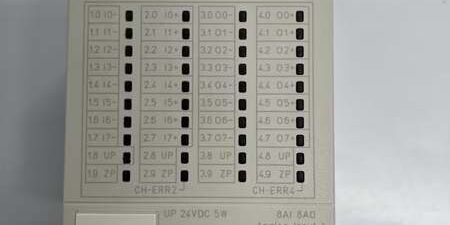

• Status indicators: 40 brightness-adjusted front LEDs for individual channel signal and fault state indicationABB
• Mechanical form: Standard S700 DIN rail snap-in module, hot-swap certified to IEC 61131-2; mates exclusively with TU715F or TU716F termination units
• Operating ambient: 0 °C to +60 °C continuous duty; linear accuracy drift above 55 °C ambient
• Storage range: -40 °C to +85 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 100 meters with fully shielded twisted pair control cableABB
• Dimensions: 20 mm W × 104 mm H × 104 mm D
• Net weight: 0.14 kg

Product Introduction

This mixed analog I/O module is a compact signal conditioning component built exclusively for S700 Freelance DCS racks paired with AC700F and AC900F controllers. It consolidates sensor measurement and valve drive hardware onto one DIN rail slot to reduce cabinet marshalling footprint.Module-wide galvanic isolation suppresses common-mode noise from nearby variable frequency drives, limiting combined signal deviation below 0.1% full scale during heavy motor load transients. Software-selectable channel modes eliminate hardware jumper rework when mixing RTD, mA, voltage and actuator signals within a single unit.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial numbers and 3BDH part code against ABB S700 Freelance spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full 40-channel LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Mount the module on an S700 DIN rail test station paired with an AC900F Profibus DP simulator. Run continuous 24-hour cyclic sweep testing across all 8 input and 8 output channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate AI wire breaks, AO short-circuits and supply undervoltage to validate PTC limiting and diagnostic flag timing.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between the unified field group and module internal logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic input drift or output swing.
4. Firmware/Config Backup: Record factory default AI signal type and AO range preset values via Freelance Engineering software. Capture high-resolution photos of terminal pin labeling for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over front terminal headers. Place the module inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide

❗Firmware Rev Mismatch Risk: AC700F / AC900F controller firmware older than v8.2.0 lacks register mapping for multi-mode RTD compensation and mixed AO range logic. Post-replacement, the DCS will show skewed temperature readings and intermittent MIX_IO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before DIN rail mounting.❗Channel Cross-Talk Risk: Absence of individual channel isolation means running high-current AO wiring alongside low-level RTD mV inputs creates ±0.3% full scale signal drift. Separate input and output cable trunks, use shielded twisted pair with single-point chassis ground at the rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗HART Device Compatibility Risk: No onboard HART modem hardware. Smart HART transmitters or valve positioners wired to this unit only return raw analog values; all digital diagnostic and remote calibration workflows will be disabled.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple digital I/O modules during controller cold startup, triggering repeated Profibus resets and total loss of analog monitoring and control signals. Recalculate total rack load before swapping the module.❗ESD Dangers: Ungrounded handling exposes sensitive A/D and D/A analog traces to static discharge from dry control room air. Field records show unprotected handling burns entire channel banks; full process unit downtime labor cost exceeds $1,570. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare DIN rail chassis ground for 3 seconds before handling the module.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power for high-EMI sites; pause Profibus DP fieldbus communication if performing live hot-swap. Photograph terminal wiring layout, AI sensor assignments and AO range configurations from the old unit; set all critical modulating valves to manual bypass position.
2. Removal: Depress DIN rail latch, slide the old module upward off the rail and disconnect terminal wiring one channel group at a time to avoid cross-circuit miswiring to safety-critical control loops.
3. Install: Transfer sensor and actuator wiring harness to the new unit’s terminal header, snap the module fully onto the DIN rail and lock the mounting latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all channel LEDs activate correctly, connect precision mA/RTD/mV calibrators to confirm stable input readings and output ramping before resuming full DCS Profibus communication and automatic closed-loop process control.

FAQ

Q: Can this mixed I/O module be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for standard low-EMI control rooms. For cabinets housing medium voltage drives or high-frequency VFDs, isolate auxiliary power first to prevent Profibus data corruption from voltage transients.Q: Does this module carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can separate AI722F + AO723F cards serve as a functional replacement for the unit?A: Functional control match only, mechanical rack fit compatible but requires two DIN rail slots instead of one. Swapping demands full rework of field wiring and reconfiguration of DCS tag mapping with split I/O scan tables.Q: What minimum AC700F / AC900F controller firmware version enables full mixed channel diagnostic support?A: Freelance controller firmware v8.2.0 or newer. Older builds lack register addresses for RTD lead resistance correction and dual-mode AO range handling, producing permanent measurement and positioning offset error.Q: Will the unit retain AI signal type and AO range configuration settings after power loss?A: No configuration data stores on-board. All channel sensor type, output range and loop diagnostic parameters reside in the AC700F / controller’s non-volatile memory. No hardware re-calibration of the module itself is needed post-swap.Q: Is the unit compatible with S800 I/O racks for AC800M System 800xA controllers?A: No. The module uses the proprietary Profibus remote I/O bus architecture, which shares zero electrical or mechanical compatibility with S800 backplane racks used for 800xA platforms.Q: Can multiple sensor types be mixed on separate AI channels of the same module?A: Yes, each of the 8 input channels is independently software configurable for voltage, current or RTD without physical jumper changes; only cross-talk mitigation cabling practices must be followed for mixed low/high signal wiring.
