Product Core Brief
- Full Part Number: 3BHE037864R0106
- Internal Type Alias: UFC911B106
- Brand: ABB
- Series: UFC911 series rack-mounted high-performance multi-axis motion control card, matched with Symphony Plus / System 800xA DCS platform
- Core Function: Real-time closed-loop multi-axis servo/stepper motor motion control; execute position, speed, torque loop algorithms, coordinate multi-axis electronic gearing/cam synchronization; exchange motion status, fault alarms and setpoints with DCS controller via multi-channel fieldbus, widely used in paper machines, metallurgical rolling lines, textile printing & packaging multi-axis production lines
- Product Type: Standard horizontal slide-in Eurocard motion control printed circuit board
- Key Specs: Support up to 8 axes closed-loop motion control | Triple communication interfaces (RS232+RS485+CAN bus) | 24 V DC backplane power supply | Full acrylic conformal coating | Onboard multi-layer EMC filtering & overcurrent/overtemperature protection ⚠️ EOL discontinued ABB OEM spare, limited new surplus stock, Condition: New Surplus
Product Introduction

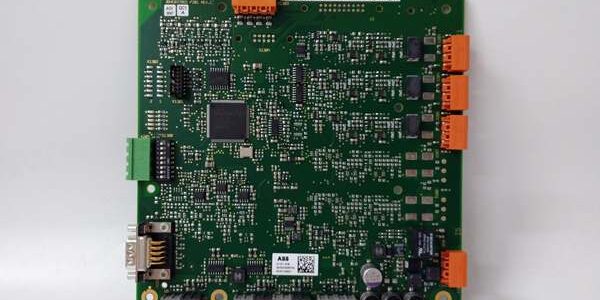

ABB 3BHE037864R0106 UFC911B106 is a dedicated high-speed multi-axis motion control Eurocard developed for ABB Symphony Plus DCS and System 800xA industrial automation platforms, core motion control hardware for continuous multi-axis process production lines.Equipped with dual floating-point motion dedicated processing chips, this board independently completes high-precision closed-loop servo control without occupying main DCS controller computing resources, realizing electronic cam, master-slave axis synchronization, flying shear and tension closed-loop control for paper, metallurgy and printing equipment. Multi-stage EMC filtering and full conformal coating resist severe electromagnetic interference generated by high-power servo drives, effectively eliminating axis position jitter and motion out-of-sync faults during high-speed line operation, improving production line running stability by roughly 65 %.Integrating multi-channel serial fieldbus interfaces on a single rack slot, it realizes bidirectional real-time data interaction between motion axes and plant DCS, simplifying cabinet wiring architecture compared with split single-axis motion sub-boards.
Key Technical Specifications
| Parameter | Technical Value |
|---|---|
| Operating Supply | 24 V DC ±10 %, powered via DCS rack backplane; max 12 W power consumption |
| Maximum Controllable Axes | Up to 8 axes of servo / stepper motors simultaneously |
| Motion Control Modes | Position loop, speed loop, torque closed-loop, electronic gearing, electronic cam, flying shear synchronization |
| Communication Interfaces | 1 × RS232 local debugging port; 1 × RS485 Modbus RTU fieldbus; 1 × CAN bus high-speed motion bus |
| PCB Surface Protection | Full industrial acrylic conformal coating for dust, humidity and mild corrosive workshop gas resistance |
| Onboard Integrated Protection | Axis output overcurrent limiting, supply overvoltage/undervoltage lockout, PCB overtemperature thermal fault flag, short-circuit self-locking |
| Front Status Indicators | Per-axis motion running LED, global POWER OK lamp, BUS COMM communication indicator, multi-stage red FAULT diagnostic LED |
| Mechanical Form Factor | Standard horizontal slide-in Eurocard for Symphony Harmony HR racks; no hot-swap support — rack auxiliary power must be cut before replacement |
| Operating Ambient Range | -20 ℃ ~ +70 ℃ full rated motion control precision; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
| Overall Dimensions | L297 mm × W35.6 mm × D175 mm |
| Net Weight | 0.60 kg |
| Exclusive System Compatibility | ABB Symphony Plus Harmony HR racks, System 800xA DCS; compatible with ABB servo drive series; incompatible with ACS MV drive power stacks, UNITROL excitation cabinets, standalone AC31 PLC, S800 process I/O racks |
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB UFC motion control spare parts databases; inspect PCB conformal coating integrity, multi-pin backplane edge connector gold plating for oxidation, all axis and communication LED functionality, terminal block spring clamp tension. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Insert the unit into a Symphony Harmony HR test rack paired with DCS CPU simulator and 8-axis servo drive load simulators; run continuous 24-hour cyclic multi-axis synchronization motion test, simulate axis overload, communication disconnection and overtemperature faults, log stable 24 V backplane voltage and PCB surface temperature with a Fluke multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between motion output circuits and DCS backplane logic domains; pass threshold set above 10 MΩ. Inject differential ground-loop interference and axis short-circuit faults to confirm independent axis current limiting without full board power reset.
- Firmware Recording: Read and record factory motion control core firmware revision via ABB Symphony Composer engineering diagnostic tool; photograph edge connector and communication port pin labeling for servo drive bus wiring and DCS backplane commissioning reference.
- Final Packaging QC: Cover exposed communication port terminals with anti-static dust caps; place the Eurocard into foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older Symphony Plus main controller firmware revisions lack multi-axis motion register mapping matched to . After board replacement, DCS reports MOTION COMM LOSS alarms, multi-axis synchronization disorder and servo drive position runaway.Mitigation: Upgrade Symphony DCS main controller firmware to v6.3.0 or newer before rack installation, re-download motion axis synchronization logic project.
❗DIP Switch / Jumper Misconfiguration Risk: All CAN bus station address, Modbus slave ID and motion dead-time jumpers are factory preset for standard multi-axis production lines. Unauthorized jumper modification causes fieldbus collision, axis synchronization offset and repeated motion protection trips.Mitigation: Photograph jumper positions on the old board before removal and replicate exact settings; do not alter factory calibration jumpers without official ABB UFC motion control service manual guidance.
❗Cable Incompatibility Risk: Unshielded servo communication bus cables lack twisted-pair double EMC drain wires matched to the board’s high-speed CAN differential front-end. Long unshielded field wiring introduces high-frequency drive interference, leading to axis position jitter and intermittent communication dropouts.Mitigation: Deploy only OEM shielded twisted-pair CAN/Modbus communication cables with single-point shield grounding at the DCS cabinet terminal bar, follow factory specified terminal screw torque values.
❗Backplane Power Capacity Mismatch Risk: Degraded Harmony rack 24 V DC backplane bus with insufficient current capacity cannot feed a fully populated rack with multiple UFC911 motion boards. Combined peak multi-axis startup draw triggers repeated rack power reset and motion logic loss.Mitigation: Calculate total power consumption of all rack modules, reserve 20 % current headroom for rack backplane power supply before replacement.
❗ESD Damage Risk: Dry production workshop air generates static discharge to exposed PCB motion processor and CAN transceiver traces. Field records show ungrounded handling burns high-speed motion control circuits, full paper/metallurgy production line downtime labor costs exceed $2,100.Mitigation: Place an anti-static mat under the DCS rack chassis, wear certified anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before extracting/seating the Eurocard PCB.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHE037864R0106 → Legacy single-axis UFC motion PCB: Needs Adaptation — older boards only support 1–2 axes; all multi-axis synchronization logic must be split across multiple rack slots and re-programmed in DCS motion project software
- 3BHE037864R0106 + Symphony Plus Harmony HR DCS Racks: Direct drop-in fit, native multi-axis motion register mapping, only motion project parameter re-tuning required after PCB swap
- 3BHE037864R0106 + System 800xA DCS Platform: Fully compatible, CAN/Modbus bus natively interlinked with ABB servo drive series
- 3BHE037864R0106 + ACS800/ACS880 Medium Voltage Drives: Partial compatibility — only fault digital status signals can cross-wire via external 24 V isolation relays, cannot control motor motion loops directly
- 3BHE037864R0106 + AC31 Standalone PLC Controllers: Incompatible — AC31 CS31 serial bus cannot interface with Symphony proprietary Harmony rack backplane communication
Performance Benchmarks
- Single-axis position control precision: ±0.001 pulse closed-loop positioning error
- Multi-axis synchronization response latency: < 1.2 ms between master and slave axes
- CAN bus maximum communication baud rate: 1 Mbps high-speed motion data transmission
- Per-axis overcurrent protection response time: < 30 ms independent axis shutdown without affecting other axes
- Common-mode industrial noise rejection: >125 dB at 50/60 Hz servo mains interference frequency
- PCB overtemperature fault trigger threshold: 70 ℃ surface temperature auto lockout of all motion axes
