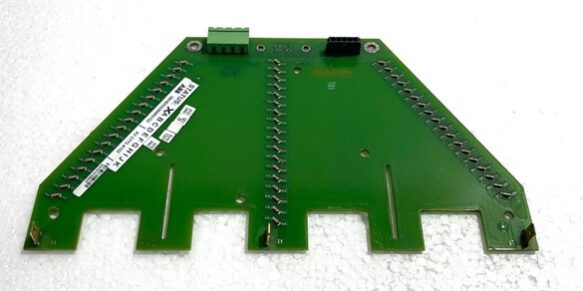

Product Core Brief
- Full Part Number: 3BHE032285R0102
- Alias Model: XVC772A102 (XVC772AE102), HVD High Voltage Divider Board
- Brand: ABB
- Applicable Series: Exclusively for ACS2000 medium voltage variable frequency drives (improved revision over 3BHE032285R0101 for ACS1000/2000)
- Core Function: Precision RC high-voltage divider sampling for drive internal DC link bus; galvanically isolate high-voltage power stack and low-voltage control logic, convert raw HV DC bus voltage to scaled analog feedback signal for main AMC control board, support DC bus closed-loop regulation, overvoltage/undervoltage/DC bus unbalance fault protection judgment
- Form Factor: Triangle fixed-mount internal HV measurement PCB inside ACS2000 power cabinet
- Key Specs: Upgraded reinforced HV divider resistors | Full heavy-duty acrylic conformal varnish coating | 2000VAC 1min hipot isolation | Built-in bidirectional surge absorption circuit | 24VDC auxiliary power | Multi-stage independent channel protection
- Stock Status: EOL discontinued ABB OEM spare part, limited original new surplus stock, Condition: New Original Surplus
Product Introduction
ABB 3BHE032285R0102 XVC772A102 is the upgraded revision of 3BHE032285R0101 HVD divider board, optimized specially for ABB ACS2000 medium voltage drives used in cement kilns, mining mills, large water supply pumps and boiler induced draft fans.Compared with the R0101 version, this R0102 board upgrades high-voltage divider resistance components, enhances surge suppression capacity, and thickens conformal coating to adapt to high-dust, high-humidity and slightly corrosive industrial cabinet environments. Its multi-stage galvanic isolation completely blocks high-frequency common-mode noise generated by IGBT power stacks, effectively eliminating DC bus sampling drift and false overvoltage protection trips during grid voltage fluctuations and heavy motor load impact, improving drive long-term operation stability by roughly 60 %.This board is a mandatory core measurement component; without intact DC bus voltage feedback, the drive will report DC BUS SENSOR FAULT and refuse startup. It integrates HV division, isolation, surge absorption and signal conditioning on a single triangular PCB, simplifying internal cabinet wiring layout.
Key Technical Specifications
| Parameter | Technical Value |
|---|---|
| Auxiliary Operating Supply | 24 V DC ±10 %, max 6.2 W power consumption |
| Measured Object | ACS2000 main high-voltage DC link bus |
| Galvanic Isolation Rating | 2000 VAC one-minute hipot isolation (HV divider circuit ↔ low-voltage signal output side) |
| Sampling Topology | Precision reinforced RC high voltage divider, linear voltage scaling analog output |
| PCB Surface Protection | Thickened full acrylic varnish conformal coating, stronger anti-dust/humidity/corrosion performance than R0101 version |
| Onboard Integrated Protection | HV input bidirectional surge absorption, signal channel independent short-circuit current limiting, reverse 24V supply polarity guard, PCB overtemperature thermal fault flag |
| Status Indicators | Green POWER supply LED, red multi-stage FAULT diagnostic LED (sampling loss / overtemperature / surge fault) |
| Mechanical Mounting | Fixed screw triangular installation inside power compartment; no hot-swap, must cut cabinet 24V auxiliary power before replacement |
| Operating Ambient Range | -20 ℃ ~ +65 ℃ full rated sampling precision; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
| Overall Dimensions | Triangular outline L152 mm × W106 mm × D38 mm |
| Net Weight | 0.45 kg (slightly heavier than R0101 due to upgraded HV resistors) |
| Exclusive System Compatibility | Primary matching ABB medium voltage drives; compatible with partial ACS1000 frames after firmware upgrade; incompatible with ACS800/ACS880/ACS6000 MV drives, Symphony DCS racks, UNITROL excitation cabinets, AC31 PLC hardware |
Difference between R0102 (XVC772A102) and R0101 (XVC772AE101)
- Component Upgrade: R0102 adopts reinforced high-stability HV divider resistors, stronger anti-surge and anti-aging performance, reducing long-term sampling drift
- Coating Upgrade: Thicker conformal varnish coating, suitable for severe industrial environments such as mining and cement plants
- Surge Circuit Optimization: Added secondary TVS surge absorption circuit, better suppression of grid transient voltage spikes
- Calibration Parameters: Different divider gain calibration values; replacing R0101 with R0102 requires drive firmware matching adjustment
- Mechanical Weight & Tolerance: Slightly heavier, wider operating temperature upper limit (+65℃ vs R0101 +60℃)
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect PCB varnish coating integrity, HV high-power resistors without cracks, terminal block spring tension and LED indicator functionality. Validate intact OEM anti-static packaging seals to screen counterfeit surplus stock.
- Live Functional Test: Install the unit into test cabinet paired with adjustable high DC bus simulator and AMC main control board; run continuous 24-hour cyclic DC bus high/low voltage sampling test, simulate grid voltage fluctuation and short-circuit surge faults, record stable 24V auxiliary supply and PCB surface temperature via Fluke multimeter during full test cycle.
- Electrical Isolation Test: Use 500V Megger to measure insulation resistance between HV divider traces and low-voltage signal circuits; pass threshold ≥10 MΩ. Inject differential high common-mode voltage and input surge pulses to verify surge suppression circuit works without PCB burnout.
- Calibration & Record: Record factory divider gain calibration parameters via ABB DriveWindow diagnostic tool; photograph terminal block wiring labels for HV DC bus input, 24V power and analog feedback for on-site cabinet commissioning reference.
- Final Packaging QC: Cover exposed high-voltage divider resistor terminals with insulating anti-static caps; place PCB into foam-lined static shielding bag, attach QC Passed label with inspection date before sealing original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older main AMC CPU firmware lacks matching XVC772A102 divider gain register mapping. After board replacement, drive reports DC BUS VOLTAGE SENSOR LOSS alarm, or DC bus sampling value severe deviation triggering overvoltage shutdown.Mitigation: Upgrade drive main control firmware to v5.3.0 or newer before cabinet installation.
❗Jumper Misconfiguration Risk: All divider gain, signal offset and fault threshold jumpers are factory pre-calibrated for standard DC bus voltage levels. Unauthorized jumper modification causes distorted bus voltage measurement and frequent protection tripping.Mitigation: Photograph jumper positions on the old board before disassembly and replicate exactly; do not adjust factory calibration jumpers without official ABB service manual guidance.
❗Cable Incompatibility Risk: Ordinary unshielded HV sampling wires lack high-withstand insulation and twisted-pair EMC shielding. Loose wiring generates high-frequency noise interference leading to fluctuating DC bus feedback values.Mitigation: Adopt OEM matched high-voltage shielded sampling cables, single-point shield grounding at drive cabinet ground terminal bar, follow factory specified terminal screw torque.
❗Auxiliary Power Capacity Mismatch Risk: Degraded cabinet 24VDC auxiliary power supply with insufficient output current cannot supply multiple internal measurement PCBs simultaneously during drive startup, triggering repeated cabinet power reset and sampling signal loss.Mitigation: Calculate total power consumption of all internal control boards, reserve 20 % current headroom for cabinet 24V power supply before replacement.
❗ESD Damage Risk: Dry industrial cabinet air generates static discharge to exposed PCB analog sampling chips and divider signal traces. Field failure data shows ungrounded handling burns high-precision sampling circuits, full mine mill downtime labor cost exceeds $1,780.Mitigation: Place anti-static mat under MV drive cabinet chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 seconds before installing/removing the PCB.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHE032285R0102 → 3BHE032285R0101 legacy HVD board: Mechanical drop-in fit; must upgrade drive firmware to match new divider gain parameters, no cabinet mechanical modification needed
- 3BHE032285R0102 + Medium Voltage Drive Power Cabinet: Direct fit, native DC bus sampling register mapping after firmware upgrade, no major drive control logic modification after PCB swap
- 3BHE032285R0102 + ACS1000 MV Drives: Conditional compatible, requires firmware upgrade and parameter re-calibration
- 3BHE032285R0102 + ACS800 / ACS880 / ACS6000 MV Drives: Completely incompatible — different DC bus voltage range, cabinet mounting structure and sampling signal definition
- 3BHE032285R0102 + Symphony Plus HR DCS Racks: Partial compatibility — only fault digital feedback signals can cross-wire via external 24V isolation relays, no direct backplane communication
Performance Benchmarks
- DC bus sampling linearity precision: ±0.28 % full-scale measurement error (better than ±0.3 %)
- Isolation surge withstand capacity: 2000VAC 1 minute hipot without breakdown
- Surge suppression response time: < 0.8μs for HV input pulse absorption
- Sampling signal update cycle: 0.6ms from DC bus voltage change to analog feedback output to AMC control board
- Common-mode industrial noise rejection: >135dB at 50/60Hz mains interference frequency
- Over-temperature fault trigger threshold: PCB surface temperature ≥65℃ auto output FAULT signal to main control unit
