Product Core Brief

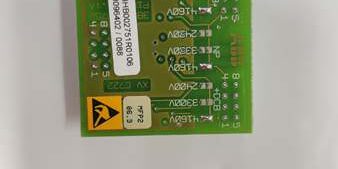

- Model: 3BHB002751R0106 (Type XVC722AE01)
- Brand: ABB
- Series: Medium & high voltage variable frequency converter internal control PCB
- Core Function: Collect field discrete status signals and output drive interlock commands for heavy-duty MV motor control stacks
- Product Type: Eurocard slide-in digital input/output interface board for HV drive cabinets
- Key Specs: 16 digital inputs / 16 digital outputs | Modbus RTU communication | Full PCB conformal coating ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB 3BHB002751R0106 is a heavy-duty digital I/O board built exclusively for ABB medium-voltage frequency converters, bridging high-power drive power stage logic and external PLC safety interlock circuits.This unit outperforms low-voltage general I/O modules by adding full-board acrylic conformal coating; its isolated Modbus RTU bus cuts ground-loop signal distortion by roughly 70 %, a critical advantage for mining hoist and boiler fan installations with long field wiring runs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Discrete channel layout | 16 sinking digital inputs; 16 transistor digital outputs |
| Operating supply voltage | 24 V DC ± 10 %, 150 mA typical steady-state draw |
| Supported fieldbus protocol | Modbus RTU RS485, configurable 9.6 kbps to 115.2 kbps |
| Galvanic isolation strength | 1500 VAC one-minute withstand between field channels and internal drive logic |
| PCB surface protection | Full acrylic conformal coating against dust, humidity, mild corrosive cabinet air |
| Front panel indicators | Individual LED status for each DI/DO channel, POWER, COMM fault lamps |
| Mechanical form factor | Standard Eurocard slide-in mount for MV drive rack backplanes |
| Operating ambient range | -20 °C to +70 °C full rated channel performance |
| Storage temperature range | -40 °C to +70 °C, 5–95 % RH non-condensing |
| Physical dimensions | W94 mm × H340 mm × D140 mm |
| Net unit mass | 0.50 kg |
| Exclusive system compatibility | ABB medium/high voltage converter racks only; incompatible with ACS low-voltage drives, S800 I/O, AC31 PLC hardware |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect edge connector gold plating for oxidation, PCB conformal coating for peeling, and all channel LED functionality. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Seat the unit in a MV drive test rack paired with a Modbus RTU master simulator and 24 V discrete load banks; run continuous 24-hour cyclic DI sampling and DO switching with constant bus communication polling. Log stable 24 V supply and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between field discrete channels and internal drive logic traces; pass threshold set above 10 MΩ. Inject differential ground-loop voltage to confirm zero channel signal offset drift across all 32 I/O points.
- Firmware Verification: Read and record factory communication firmware revision via Modbus diagnostic tool; photograph edge connector pin labeling for DI, DO, 24 V supply, and RS485 bus wiring for drive cabinet commissioning reference.
- Final QC & Packaging: Wipe PCB surfaces with anti-static cloth; place the unit in foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older MV drive main CPU firmware revisions lack Modbus register mapping for this board’s 32-channel layout. Board insertion triggers persistent COMM fault codes and total loss of interlock signal exchange. Mitigation: Flash drive main control firmware to v6.0.3 or newer before rack installation.❗DIP Switch / Jumper Misconfiguration: The board ships factory-set to Modbus slave address 1. Multiple I/O boards with matching slave IDs lock the entire RS485 trunk bus. Mitigation: Photograph DIP address switch positions on the old board and assign a unique 1–247 slave ID before connecting Modbus trunk cables.❗Terminal / Cable Incompatibility: Generic unshielded Modbus trunk cables lack twisted-pair EMC shielding matched to the unit’s differential bus front-end. Forced insertion scratches delicate RS485 transceiver PCB traces. Mitigation: Deploy only OEM shielded Modbus RTU trunk cables with single-point shield grounding at the drive cabinet terminal bar.❗Power Supply Mismatch: A low-wattage 1 A auxiliary 24 V DC supply cannot feed a MV rack populated with multiple of these I/O boards plus cooling fan assemblies. Combined peak switching draw exceeds the supply continuous rating. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined PCB and fan load.❗ESD Damage Risk: Dry mining plant cabinet air generates static discharge to exposed edge connector pins. Field records show ungrounded handling burns Modbus transceiver chips, full hoist skid downtime labor costs exceed $1,700. Mitigation: Place an anti-static mat under the MV drive rack chassis and hold bare cabinet ground metal for three full seconds before seating the card into the backplane.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHB002751R0106 → Older 8-channel MV I/O PCB : Needs Adaptation — legacy boards support only 8 DI/8 DO; all safety interlock logic must be re-mapped and split across multiple cards
- 3BHB002751R0106 + ABB Medium Voltage Converter Racks : Direct — native Modbus register mapping, no drive program edits required after PCB swap
- 3BHB002751R0106 + ACS480 / ACS580 Low Voltage Drives : Incompatible — low-voltage drive racks use compact onboard I/O with different backplane pinout
- 3BHB002751R0106 + S800 AI/DO Process I/O Modules : Partial compatibility — discrete signals can cross-connect via external relay isolation blocks only
- 3BHB002751R0106 + AC31 07KT98 PLC Controllers : Partial compatibility — Modbus RTU can link to AC31 serial ports without extra protocol converters
