Product Core Brief

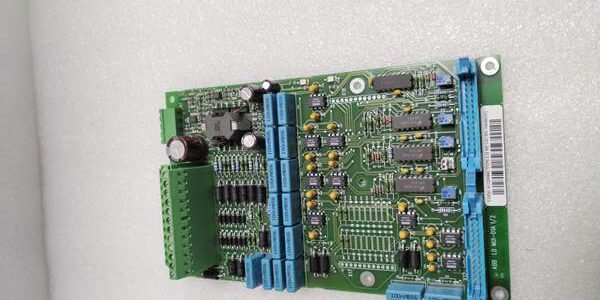

- Model: 3AFE61320946P0001, internal designation POS.A6091
- Brand: ABB
- Series: ACS800 medium/low voltage variable frequency drive internal PCB assembly
- Core Function: Amplify and isolate low-voltage PWM logic signals to switch high-power IGBT inverter modules for motor output waveform generation
- Product Type: Plug-in IGBT gate driver printed circuit board for ACS800 drive power stacks
- Key Specs: 2500 VAC field-logic isolation | Conformal coated PCB | Short-circuit IGBT protection ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB 3AFE61320946P0001 is a critical power stage interface board exclusive to ABB ACS800 series variable frequency drives, translating low-current DSP control pulses into robust gate drive currents for high-power IGBTs.This unit differs from generic relay and logic PCBs by integrating dedicated gate charge amplifiers and instantaneous short-circuit detection; its 2500 VAC isolation barrier blocks high DC bus noise from corrupting drive CPU measurements, cutting unplanned inverter tripping events by roughly 45 % on heavy-duty mine hoist and boiler fan loads.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Core function topology | Isolated IGBT gate driver with fault detection logic |
| Logic side operating supply | 24 V DC ± 10 %, 130 mA typical steady-state draw |
| Galvanic isolation rating | 2500 VAC one-minute hipot test (control logic ↔ high-power IGBT stage) |
| Supported IGBT module voltage class | 690 V DC bus ACS800 inverter stacks |
| Integrated protection circuits | IGBT over-current lockout, under-voltage gate supply shutdown, over-temperature thermal flag |
| PCB surface treatment | Full acrylic conformal coating for dust, humidity and corrosive cabinet air resistance |
| Front status indicators | Red FAULT LED, green POWER LED, channel gate active lamps |
| Mechanical mounting | Internal snap-fit plug-in connector within power cabinet stack |
| Operating ambient range | -10 °C to +55 °C full rated switching performance; linear derating above 55 °C |
| Storage temperature range | -40 °C to +70 °C, non-condensing 5–95 % RH |
| Physical dimensions | W185 mm × H240 mm × D32 mm |
| Net unit mass | 0.24 kg |
| Exclusive system compatibility | ABB series VFD frames only; incompatible with ACS580/ACS480, S800 I/O, AC31 PLC hardware |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB drive spare parts databases; inspect PCB conformal coating for peeling, multi-pin edge connector gold plating for oxidation, and LED indicator functionality. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Seat the unit inside an test power stack paired with a DSP PWM signal simulator and dummy IGBT load banks; run continuous 24-hour cyclic variable-frequency switching with active short-circuit fault trigger testing. Log stable 24 V logic supply and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between low-voltage logic traces and high-voltage gate drive circuits; pass threshold set above 10 MΩ. Inject simulated IGBT short-circuit conditions to confirm instant fault lockout without permanent PCB trace burnout.
- Firmware Verification: No user-modifiable firmware on the unit; photograph edge connector pin labeling for PWM input, 24 V supply, and fault feedback wiring for drive cabinet commissioning reference.
- Final QC & Packaging: Wipe PCB surfaces with anti-static cloth; place the unit in foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: The drive’s main CPU firmware must support POS.A6091 gate board register mapping. Outdated firmware fails to recognize the unit and triggers persistent OVERCURRENT fault codes on power-up. Mitigation: Flash drive main control firmware to v7.1.8 or newer before power stack installation.❗DIP Switch / Jumper Misconfiguration: The board ships factory-calibrated for standard 690 V DC bus stacks. Manual jumper tampering alters gate drive deadtime and causes destructive IGBT shoot-through. Mitigation: Leave all factory jumpers unmodified; only adjust per ABB service manual if matched to custom low DC bus frames.❗Terminal / Cable Incompatibility: Generic non-OEM stack ribbon cables omit shield drain wires matched to the unit’s differential PWM front-end. Forced insertion scratches delicate high-speed signal PCB traces. Mitigation: Deploy only OEM POS.A6091 matched ribbon trunk cables with full EMC shielding termination.❗Power Supply Mismatch: A low-wattage 1 A auxiliary 24 V DC supply cannot feed a power stack populated with multiple gate drive PCBs plus cooling fan assemblies. Combined peak startup draw exceeds the supply continuous rating. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined PCB and fan load.❗ESD Damage Risk: Dry plant control room air generates static discharge to exposed edge connector and gate driver chip traces. Field records show ungrounded handling burns high-speed PWM amplifiers, full medium voltage hoist downtime labor costs exceed $1,600. Mitigation: Place an anti-static mat under the drive power stack chassis and hold bare metal cabinet ground for three full seconds before seating the PCB into the internal slot.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3AFE61320946P0001 → Generic gate driver variant : Needs Adaptation — alternate board revisions use different deadtime timing, all motor torque and overcurrent protection parameters require full drive re-tuning
- 3AFE61320946P0001 + Full VFD Power Stack : Direct — native PWM register mapping, no drive program edits required after PCB swap
- 3AFE61320946P0001 + ACS580 / ACS480 Low Voltage Drives : Incompatible — smaller drive platforms use compact integrated gate driver modules instead of standalone plug-in PCBs
- 3AFE61320946P0001 + S800 AI/DO I/O Modules : Incompatible — high-voltage gate drive signals cannot directly interface with low-voltage process I/O without signal isolation converters
- 3AFE61320946P0001 + AC31 07KT98 PLC Controllers : Partial compatibility — fault feedback signals can wire to PLC digital inputs only via external 24 V relay isolation blocks
