Product Core Brief
- Model: DSAI145, OEM exchange part 57120001-HA
- Brand: ABB
- Series: S100 I/O for MasterPiece 200 safety DCS controllers
- Core Function: Measure resistive temperature detector signals for safety-critical thermal process loops

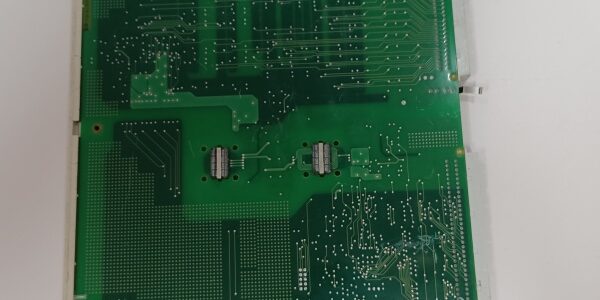

- Product Type: Slide-in 8-channel dedicated RTD analog input rack board
- Key Specs: 8 RTD channels | Pt100/Pt1000 compatible | 0.1 % full-scale static accuracy ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB is a purpose-built temperature input board designed exclusively for MasterPiece 200 safety racks, engineered for boiler, furnace and turbine thermal monitoring loops.This unit differs from multi-purpose DSAI130 series boards by integrating precision constant-current RTD excitation circuits; its native 3-wire sensor support eliminates external signal conditioning and cuts temperature measurement offset error to just 0.1 % FS across the full -40 °C to +125 °C operating band.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel layout | 8 dedicated RTD input channels, grouped as four isolated pairs |
| Supported sensor types | Pt100, Pt1000 (2-wire or 3-wire configurable) |
| Excitation drive | Fixed 0.5 mA constant current per channel |
| Static full-scale measurement error | ≤ 0.1 % FS |
| Supported temperature span | -40 °C to +125 °C linear conversion |
| Backplane operating supply | 24 V DC ± 10 %, 50 mA typical draw |
| Galvanic isolation rating | 1500 VAC dielectric separation, field to rack bus |
| Full board scan conversion time | 25 ms fixed cycle |
| Max lead resistance tolerance | 20 Ω per sensor wire without offset drift |
| Operating ambient temperature | -20 °C to +70 °C full rated precision |
| Storage temperature range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Physical dimensions | Standard S100 Eurocard W261 mm × H20 mm × D365 mm |
| Net unit mass | 0.44 kg |
| Exclusive system compatibility | MasterPiece 200 S100 safety control racks only |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB S100 spare parts databases; inspect gold edge connectors for oxidation, front channel LED functionality, PCB traces for scratch damage. Validate intact OEM anti-static packaging seals to screen counterfeit surplus stock.
- Live Functional Test: Seat the unit in a S100 test rack paired with a MasterPiece 200 simulator and calibrated Pt100 resistance decade boxes; run continuous 24-hour cyclic channel scanning while toggling 2-wire / 3-wire wiring configurations. Log stable 24 V supply and board temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure field channel to backplane isolation resistance; pass threshold set above 10 MΩ. Inject 20 Ω lead resistance to confirm zero measurable temperature offset across all 8 RTD pairs.
- Firmware Verification: No user-modifiable firmware on the unit; photograph edge connector pin labeling and document factory default 3-wire RTD configuration for commissioning reference.
- Final QC & Packaging: Wipe PCB surfaces with anti-static cloth; place the unit in foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: MasterPiece 200 CPU firmware older than v3.09 lacks register support for dedicated RTD excitation channels. New board insertion triggers persistent temperature offset faults. Mitigation: Flash controller firmware to v3.09 or newer before rack installation.❗DIP Switch / Jumper Misconfiguration: The board ships with 2-wire mode jumpers enabled by factory default. 3-wire furnace sensor wiring with unadjusted jumpers yields constant low-temperature drift readings. Mitigation: Photograph jumper positions on the old board and reconfigure all channel jumpers for 3-wire operation before connecting RTD probes.❗Terminal / Cable Incompatibility: Multi-purpose DSAI130 D-sub trunk cables omit dedicated RTD excitation return pins matched to the unit’s front-end. Forced insertion scratches delicate precision excitation PCB traces. Mitigation: Deploy only OEM RTD differential trunk cables with full three-wire pinout mapping.❗Power Supply Mismatch: A single DPW03 48 W auxiliary supply cannot feed a fully populated rack holding multiple of these boards. Combined continuous draw exceeds the 2 A output limit. Mitigation: Pair racks with DPW01 120 W power supplies, maintain 20 % current headroom for peak RTD sampling loads.❗ESD Damage: Dry winter control room air generates static discharge to exposed edge connector pins. Field records show ungrounded handling corrupts RTD excitation reference circuits, creating permanent uncorrectable temperature drift; full rack downtime labor costs exceed $1,600. Mitigation: Use an anti-static mat under the rack chassis and hold bare cabinet ground metal for three full seconds before seating the card into the backplane.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → DSAI130D : Needs Adaptation — DSAI130D lacks dedicated RTD excitation, all thermal loops require external precision current sources to match measurement accuracy
- MasterPiece 200 Safety CPU : Direct — native backplane register mapping, no software edits required for thermal scaling
- Freelance 2000 DRA02 Rack : Incompatible — parallel bus pinout does not match Freelance internal rack backplane
- 3-wire Pt100 furnace sensors : Direct — factory jumper configuration supports standard industrial thermal probe wiring
- AC800M S800 I/O racks : Incompatible — different fieldbus and backplane communication protocols
