Product Core Brief
- Model: DSAI130, part number 57120001-P
- Brand: ABB
- Series: S100 I/O for MasterPiece 200 safety DCS controllers
- Core Function: Capture differential analog signals from field transmitters for safety-critical process measurement
- Product Type: 16-channel differential analog input board
- Key Specs: 16 differential channels | 0.025 % FS precision | Tolerates >50 V common mode voltage ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction

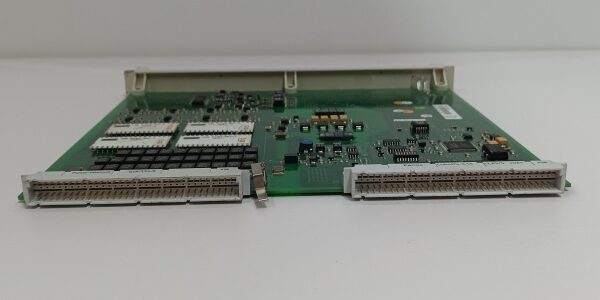

ABB is a high-precision differential analog input board built exclusively for MasterPiece 200 safety control racks, engineered for sites with elevated common mode voltage on field sensor wiring.This unit differs from standard DSAI130A hardware by supporting CMV above 50 V; its differential front-end cuts ground-loop induced measurement error to under 0.025 % full scale, a critical margin for safety shutdown loops in refinery and power boiler applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel configuration | 16 fully differential analog input pairs |
| Supported signal ranges | ±20 mA current, ±10 V voltage |
| ADC resolution | 12-bit linear conversion |
| Static measurement accuracy | ≤ 0.025 % full scale |
| Max allowable common mode voltage | > 50 V DC/AC continuous |
| Bus communication interface | S100 internal parallel rack backplane |
| Backplane operating supply | 24 V DC ± 10 %, 180 mA typical draw |
| Galvanic isolation | Field-to-backplane 1500 VAC dielectric separation |
| Operating ambient range | -20 °C to +60 °C full rated precision |
| Storage temperature | -40 °C to +70 °C, 5–95 % RH non-condensing |
| Mounting form factor | Standard S100 rack slide-in card format |
| Net weight | 1.045 kg |
| Certified compatibility | MasterPiece 200 safety controllers only |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB S100 spare parts databases; inspect gold edge connectors for oxidation, PCB traces for scratch damage, and front channel LED functionality. Match OEM anti-static packaging seals to filter counterfeit surplus inventory.
- Live Functional Test: Seat the unit in a S100 test rack paired with a MasterPiece 200 simulator and calibrated mA/V signal generators; run continuous 24-hour cyclic channel scanning with alternating ±20 mA and ±10 V test signals. Log stable 24 V supply and board temperature via a Fluke 115 multimeter for the full cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure field channel to backplane isolation resistance; pass threshold set above 10 MΩ. Inject 55 V common mode voltage to validate no measurement offset drift across all 16 channels.
- Firmware Verification: No user-adjustable firmware on the unit; photograph edge connector pin labeling and document factory default channel scaling ranges for commissioning reference.
- Final QC & Packaging: Wipe PCB surfaces with anti-static cloth; place the unit in foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older MasterPiece 200 CPU firmware versions lack register support for high CMV differential channels. New card insertion triggers constant measurement offset faults. Mitigation: Flash controller firmware to v3.08 or newer before rack installation.❗DIP Switch / Jumper Misconfiguration: The board ships with single-ended mode jumpers enabled by factory default. Differential field wiring with unadjusted jumpers yields noisy, unstable readings. Mitigation: Photograph jumper positions on the old card and reconfigure all channel jumpers for differential operation before wiring transmitters.❗Terminal / Cable Incompatibility: 16-channel single-ended DSAI130A terminal cables use shorter pin pitch. Forced insertion scratches delicate differential input PCB traces. Mitigation: Deploy only OEM 25-pin D-sub differential trunk cables.❗Power Supply Mismatch: A single DPW03 48 W auxiliary supply cannot feed a fully populated rack holding multiple of these boards. Combined draw exceeds the 2 A continuous output limit. Mitigation: Pair racks with DPW01 120 W power supplies, maintain 20 % current headroom for peak ADC sampling loads.❗ESD Damage: Dry plant control room air generates static discharge to exposed edge connector pins. Field records show ungrounded handling corrupts ADC reference circuits, creating permanent uncorrectable offset drift; full rack downtime labor costs exceed $1,600. Mitigation: Use an anti-static mat under the rack chassis and hold bare cabinet ground metal for three full seconds before seating the card into the backplane.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → DSAI130A : Needs Adaptation — DSAI130A max CMV limited to 50 V, safety shutdown loops require wiring rework for high common mode field circuits
- MasterPiece 200 Safety CPU : Direct — native backplane register mapping, no software edits needed
- Freelance 2000 DRA02 Rack : Incompatible — parallel bus pinout does not match Freelance internal rack backplane
- Standard 4–20 mA differential transmitters : Direct — factory jumper configuration supports two-wire differential sensor wiring
- AC800M S800 I/O racks : Incompatible — different fieldbus and backplane communication protocols
