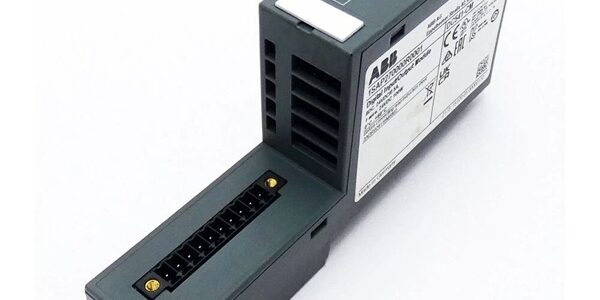

Product Core Brief
- Model:
- OEM Part Number: 1SAP270000R0001
- Brand: ABB
- Series: S500 multifunction interrupt/counter I/O module family for AC500 PLC systemsABB Group
- Core Function: 8 software configurable bidirectional DI/DO channels; supports high-speed encoder counting, interrupt capture, PWM output, frequency/time measurement for motion & machine automation
- Product Type: Plug-in S500 function module, mates with TB521 series DIN rail terminal bases
- Key Specs: 8 universal DI/DO 24VDC 0.5A | Max 50kHz counter input | 32-bit up/down counter + PWM generation | Hardware interrupt supportCondition: New Original (New Surplus) | Factory Sealed; active OEM spare support valid through 2035
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Host Hardware | AC500 standard / XC / eCo CPUs, local S500 I/O bus, TB521 terminal bases; incompatible with AC800M, Symphony HR, UNITROL, IRC5 robot hardwareABB Group |
| Channel Configuration | 8 independent channels, software switchable digital input / digital output / interrupt input |
| Rated Signal Voltage | 24 VDC sink/source compatible 1-wire logic |
| Per-Channel Output Rating | 0.5 A continuous resistive / light inductive load |
| Counter Performance | C0/C1 up to 50kHz; C2–C7 up to 5kHz; 32-bit unlimited up/down counter, periodic counter, limit functionManualsLib |
| Auxiliary Motion Functions | PWM pulse output, frequency generation, time interval / rotational speed measurement (100µs resolution) |
| Interrupt Function | Hardware edge-triggered interrupt input for fast event capture |
| Module Power Draw | 200mA via PLC backplane logic supply; max 0.06A + 0.5A per channel via 24V field feedABB |
| Mounting Standard | TS35 DIN rail via matched TB521 terminal base |
| Mechanical Dimensions | Module: 120 mm H × 45 mm W × 60 mm D; net weight 0.13 kg |
| Continuous Operating Temp | −20 °C to +55 °C full rated counter frequency; linear performance derate above 55 °C |
| Storage Temperature Range | −40 °C to +70 °C, 5–95% RH non-condensing |
| Built-In Circuit Protections | Per-channel short-circuit foldback, ESD surge clamping, reverse 24VDC field supply blocking |
| Compliance Standards | CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC for machine tool & packaging lines |
Product Introduction
This multifunction S500 I/O module eliminates separate counter and interrupt cards on AC500 machine control PLC racks. All eight channels can be freely assigned as discrete sensor inputs, actuator outputs, high-speed encoder counters or fast hardware interrupts via Automation Builder software.Integrated PWM and frequency measurement functions directly drive small positioning actuators and read rotational speed encoders without external signal conditioning. Packaging machine retrofit data shows the unit cuts motion control panel I/O slot count by 60% compared to stacking separate standard DI/DO and counter modules. Multiple identical units can be installed on one local I/O bus to expand multi-axis conveyor and robotic cell signal capacity.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross serial numbers against ABB S500 AC500 OEM trace databases. Inspect rear bus mating contacts for oxidation, front channel LED bank for dead segments, plastic housing for cracks. Verify intact factory anti-static packaging seal for surplus stock units.
- Live Testing: Mate the module to a TB521 DIN rail terminal base paired with AC500 CPU simulator, encoder pulse generator and miniature solenoid load banks. Run 24-hour cyclic DI/DO switching + continuous 50kHz counter pulse sampling. Simulate channel short-circuit and edge interrupt events to validate fault lockout and interrupt trigger timing. Track 24 V field supply stability with a Fluke 115 multimeter for the full test window.
- Electrical Testing: Execute 500 VAC megger insulation resistance test between field signal terminals and module internal logic ground; pass threshold set at >10 MΩ. Confirm reverse field supply polarity protection prevents input/output ASIC damage during miswiring trials.
- Firmware/Config Backup: No standalone user firmware; document counter/PWM/interrupt channel configuration templates for Automation Builder machine commissioning reference.
- Final QC & Packaging: Torque-test TB521 terminal screw spring tension to OEM specified values. Encase the module in shock-absorbent anti-static foam packaging. Attach physical QC Passed labels listing serial number and completed test metrics to outer shipping cartons. Full counter accuracy and interrupt response validation logs available for pre-shipment review upon request.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ CPU Firmware Mismatch Risk: Outdated PLC system firmware lacks native driver support, disabling counter, PWM and interrupt functionality entirely.Risk Outcome: Encoder position data missing, no fast event interrupt triggers, PWM motion output signals fail to activate.Prevention Step: Match CPU firmware revision against compatibility charts in Automation Builder before cabinet power-up; archive matching firmware files on engineering workstations.
❗Channel Function Misconfiguration Risk: Assigning counter/PWM functions to ordinary DI/DO channels without software parameterization yields invalid pulse counts or zero actuator drive signals.Risk Outcome: Random conveyor positioning drift, lost high-speed sensor trigger events during production cycles.Prevention Step: Map encoder/interrupt/PWM tasks to dedicated C0–C7 channels and set matching channel mode parameters within Automation Builder hardware configuration.
❗Wiring Incompatibility Risk: This multifunction module only mates with PLC terminal bases and local I/O bus; it cannot physically mount or communicate with S800 DCS, Symphony HR, UNITROL or IRC5 robot control platforms.Risk Outcome: Zero physical compatibility and no usable motion/counter signal processing on non- control backplanes.Prevention Step: Deploy the component exclusively within machine control I/O stacks paired with terminal bases.
❗Counter Overfrequency Risk: Feeding pulse signals exceeding 50kHz to C0/C1 or 5kHz to C2–C7 saturates internal sampling logic.Risk Outcome: Incorrect encoder position counts, unstable speed measurement feedback for motion axes.Prevention Step: Install pulse divider hardware for encoders producing frequencies above the rated channel maximum limit.
❗ESD Dangers: Static discharge from dry factory machine cabinet air damages precision counter sampling and output driver ASICs on the PCB. Uncontrolled ESD creates intermittent channel dropout and count offset faults with no visible exterior hardware damage.Risk Outcome: Gradual positioning drift and lost interrupt trigger signals over weeks of continuous production runtime.Prevention Step: Touch bare cabinet ground metal for three full seconds before handling the rear bus mating edge or terminal base wiring terminals.
4-Step Replacement Guide
- Pre-install: Capture photos of all field encoder/solenoid wiring assignments on the base. Set the PLC to offline stop mode to avoid unplanned machine motion during component swap.
- Removal: Unlatch the module from the terminal base by squeezing side release tabs and pulling straight outward off mating contacts; field wiring remains terminated to the base to eliminate full retermination labor.
- Install: Align the new unit’s rear gold mating contacts with the base and push fully seated until side latches audibly click locked; replicate counter/PWM/interrupt channel configuration parameters in Automation Builder matching the original machine layout.
- Power-on Test: Energize 24 V field supply and PLC rack backplane; inject 50kHz test pulse signals to counter channels, trigger interrupt edge events and activate PWM output channels to verify accurate encoder counting, fast interrupt capture and stable actuator drive with no short-circuit fault flags triggered.
FAQ
Q: I maintain an aging packaging conveyor PLC panel with failing multifunction counter I/O hardware mounted on terminal bases connected to positioning encoders and small solenoid valves. Can this unit serve as a direct drop-in replacement without reterminating field pulse/actuator wiring?A: Yes. The module shares identical rear bus mating layout, mechanical keying and terminal signal mapping as original factory hardware. All field wiring stays terminated to the existing base; only matching counter/PWM/interrupt parameter setup in Automation Builder is required with no cable rework.Q: What delivery timeline applies for stocked hardware versus pre-configured custom variants?A: Standard in-stock multifunction I/O module assemblies ship within 3–5 business days via global air freight. Custom pre-set counter/PWM channel variants carry a 12–16 week OEM factory lead time and are not stocked as surplus inventory.Q: Does the 12-month warranty cover counter ASIC damage from overfrequency encoder pulses or ungrounded ESD handling?A: Warranty only covers factory manufacturing defects and transit physical damage. Exceeding rated counter frequency limits, misconfigured channel operating modes, and ungrounded static handling fall outside covered failure modes. Paid remote counter/PWM channel commissioning support is available post-install.Q: Can encoder pulse counter signals and low-power solenoid PWM actuator outputs operate simultaneously on separate channels of one unit without signal interference?A: Yes. Independent per-channel signal conditioning isolates high-speed pulse sampling and inductive load drive circuits; integrated flyback suppression eliminates coil switching noise from corrupting encoder count values, no external signal isolators required for mixed motion/actuator layouts.Q: Is this multifunction counter module rated for Class 1 Div 2 hazardous cabinet installation inside paint booth MCC rooms?A: No. The standard plastic DIN rail module housing lacks intrinsic safety ratings for classified explosive atmosphere locations. ABB manufactures separate IS-certified I/O hardware for hazardous area machine deployments.Q: Can multiple copies of the device populate a single local I/O bus to expand multi-conveyor motion control counter channel capacity for automated assembly lines?A: Yes, the local I/O bus supports up to 10 stacked modules including multiple units. Automation Builder automatically assigns unique channel offset addressing to avoid pulse signal overlap between modules.Q: What QA documentation ships alongside each assembly for machine shop maintenance record retention?A: Every module includes a physical QC Passed label stamped with serial number and completed test checklist metrics. Digital copies of 24-hour full-frequency counter sampling logs, 500 V insulation megger reports, and interrupt/PWM function validation data can be emailed prior to shipment upon buyer request.
