Product Core Brief

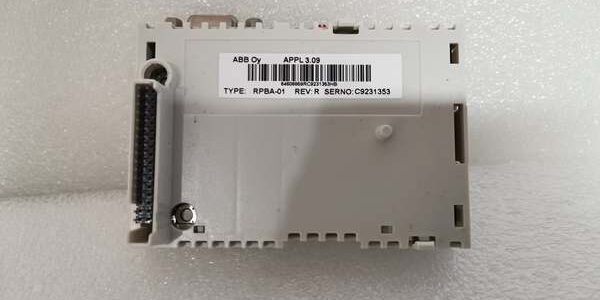

- Model: RPBA-01
- OEM Part Number: 3ABD64606859
- Brand: ABB
- Series: R-series PROFIBUS DP fieldbus adapter for low/medium voltage ABB variable frequency drives
- Core Function: Create PROFIBUS DP slave communication interface inside ACS550, ACH550, ACS800 inverters to exchange speed, torque, fault, and setpoint data with PROFIBUS DP master PLCs
- Product Type: Internal plug-in drive slot communication PCB, installs within the inverter control compartment
- Key Specs: DP-V0/DP-V1 protocol support | PPO Types 1 through 6 | Galvanically isolated RS485 bus portCondition: New Original (New Surplus) | Factory Sealed; OEM spare part support available through 2033
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Drive Hardware | ACS550, ACH550 HVAC drives, full ACS800 series; incompatible with ACS355, ACS850, ACS880, UNITROL excitation racks, S800 DCS I/O |
| Supported Fieldbus Protocols | PROFIBUS DP-V0 cyclic real-time data, PROFIBUS DP-V1 acyclic parameter access |
| Supported PPO Message Frames | PPO 1, PPO 2, PPO 3, PPO 4, PPO 5, PPO 6 automatic detection |
| Communication Profiles | Standard PROFIdrive profile, native ABB Drives vendor profile |
| Physical Bus Layer | Isolated RS485 D-Sub 9 PROFIBUS connector, twisted pair cabling |
| Supported Baud Rates | 9.6 kbit/s up to 12 Mbit/s auto-negotiation |
| Max Nodes Per Segment | 31 slaves without repeaters; 127 total with signal repeaters |
| Galvanic Isolation Rating | 500 VAC isolation between drive internal logic and fieldbus trunk wiring |
| Onboard Power Draw | Powered entirely from drive internal control supply; no external 24 V feed required |
| Diagnostic Indicators | Power OK, BUS ACTIVE, BUS FAULT front-panel LED status array |
| Mechanical Dimensions | 82 mm W × 45 mm H × 22 mm D plug-in slot form factor; net weight 0.06 kg |
| Continuous Operating Ambient Temp | −20 °C to +60 °C full rated communication throughput; linear derate above 60 °C |
| Storage Temperature Range | −40 °C to +70 °C, 5–95% RH non-condensing |
| Built-In Circuit Protections | RS485 bus ESD surge clamping, bus short-circuit current limiting, reverse bus polarity protection |
| Compliance Standards | CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC, PROFIBUS certified |
Product Introduction
This fieldbus adapter mounts directly inside compatible ABB inverters to turn standalone variable frequency drives into PROFIBUS DP slave nodes for centralized PLC motion control. Isolated RS485 circuitry eliminates ground-loop noise generated by motor switching transients on long plant fieldbus trunks.Dual DP-V0/DP-V1 functionality delivers fast cyclic speed/torque control plus on-demand acyclic read/write access to full drive parameter sets. Retrofit data from material handling conveyor deployments shows the hardware cuts drive hardwired analog I/O wiring labor by 73% versus discrete 4–20mA control layouts.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross serial numbers against ABB drive fieldbus OEM trace databases. Inspect D-Sub 9 bus connector pins for bending, PCB edge contact fingers for oxidation, front LED bank for dead segments. Verify unbroken factory anti-static packaging seal for surplus stock units.
- Live Testing: Seat the PCB into an ACS800 drive test bench paired with a SIMATIC S7 PROFIBUS DP master PLC simulator. Run 24-hour continuous cyclic PPO frame communication at 12 Mbit/s maximum baud rate. Simulate bus short-circuit and trunk cable disconnection to validate fault LED trigger timing. Log drive internal control supply stability with a Fluke 115 precision multimeter for the full test window.
- Electrical Testing: Execute 500 VAC megger insulation resistance test between RS485 bus terminals and drive internal logic ground; pass threshold set at >10 MΩ. Confirm bus short-circuit foldback protection triggers without damaging internal transceiver chips during miswiring trials.
- Firmware/Config Backup: Record factory-installed fieldbus interface firmware revision via DriveWindow drive commissioning software. Document PPO type and PROFIdrive/ABB profile configuration templates for PLC hardware catalog setup reference.
- Final QC & Packaging: Wipe D-Sub bus connector pins and drive slot mating contacts to remove storage oxidation. Encase the PCB in shock-absorbent anti-static foam packaging. Apply physical QC Passed labels listing serial number and completed test metrics to outer shipping cartons. Bus cyclic communication and fault recovery validation logs available for pre-shipment review upon request.
Installation Pitfalls & Guide (Engineer to Engineer)
❗Drive Firmware Mismatch Risk: Mismatched inverter control firmware and the module’s fieldbus firmware disables PROFIBUS frame exchange, cutting all PLC drive command and fault feedback signals.Risk Outcome: Drives fail to respond to speed setpoints, fault codes never populate the PLC HMI during machine runtime.Prevention Step: Match full drive firmware revision against compatibility charts in DriveWindow before drive power-up; archive matching firmware files on plant engineering workstations.
❗PPO/Profile Configuration Error Risk: Mismatched PPO frame type or communication profile between PLC hardware catalog and drive parameter settings creates garbled cyclic data frames.Risk Outcome: Unstable motor speed oscillation, random invalid torque limit alarms triggered by corrupted process data.Prevention Step: Document PPO type and selected profile in both PLC hardware configuration and drive parameter group 51 before commissioning the bus segment.
❗Wiring Incompatibility Risk: This fieldbus card only fits ACS550/ACH550/ACS800 internal drive slots; it cannot mount or communicate with ACS355/ACS880 drives, System 800xA S800 I/O racks, or UNITROL excitation hardware.Risk Outcome: Zero physical compatibility and no usable motion control communication on non-supported drive platforms.Prevention Step: Deploy the component exclusively within ACS550/ACS800 inverter control compartments paired with SIMATIC S7 or other PROFIBUS DP master PLCs.
❗Bus Termination Omission Risk: Missing 120 Ω PROFIBUS termination resistor at the final slave node on a trunk line creates signal reflection noise at baud rates above 1.5 Mbit/s.Risk Outcome: Intermittent drive communication timeouts and lost speed reference commands during heavy motor switching cycles.Prevention Step: Activate termination resistors at both physical endpoints of each PROFIBUS trunk segment per PROFIBUS wiring standards.
❗ESD Dangers: Static discharge from dry factory machine cabinet air damages precision bus transceiver circuits on the PCB. Uncontrolled ESD can permanently skew cyclic data timing with no visible exterior hardware damage.Risk Outcome: Gradually rising bus fault counter values and delayed drive setpoint response over weeks of continuous production runtime.Prevention Step: Touch bare cabinet ground metal for three full seconds before handling the PCB’s drive slot mating edge or D-Sub bus connector pins.
4-Step Replacement Guide
- Pre-install: Capture clear photos of D-Sub PROFIBUS trunk cable pin routing inside the drive control compartment. Set the master PLC to offline hold mode to avoid uncontrolled motor motion during component swap.
- Removal: Isolate and lock out inverter AC input power; remove the drive control compartment cover, extract the failing unit straight out of the internal slot without bending mating contact fingers.
- Install: Align the new unit’s edge contact fingers with the drive’s internal communication slot and push fully seated until the PCB latches into position; reconnect the D-Sub bus cable matching the photographed wiring layout.
- Power-on Test: Restore drive AC supply power; set drive parameter 98.02 to activate external fieldbus mode, confirm BUS ACTIVE LED illuminates steady green. Send variable speed setpoints from the PROFIBUS master PLC to verify consistent cyclic data exchange and fault code reporting with zero bus fault counters incrementing.
FAQ
Q: I maintain an aging mining conveyor inverter fleet with failing PROFIBUS communication hardware paired with SIMATIC S7 DP master PLCs. Can this PCB serve as a direct drop-in replacement without rewiring the fieldbus trunk cable?A: Yes. The card shares identical internal drive slot mechanical form factor, D-Sub 9 bus connector pin mapping and backplane communication layout as original factory hardware. No cabinet PROFIBUS trunk cable rework is required, and existing PPO/profile PLC hardware configuration files import natively without control logic rewrite.Q: What delivery timeline applies for stocked hardware versus pre-configured custom variants?A: Standard in-stock PCB assemblies ship within 3–5 business days via global air freight. Custom pre-tested PPO/profile pre-calibrated variants carry a 12–16 week OEM factory lead time and are not held as surplus inventory.Q: Does the 12-month warranty cover transceiver chip damage from unterminated bus trunks or ungrounded ESD handling?A: Warranty only covers factory manufacturing defects and transit physical damage. Missing bus termination resistors, mismatched drive firmware revisions, ungrounded static handling, and reversed bus wiring fall outside covered failure modes. Paid remote drive PROFIBUS commissioning support is available post-install.Q: Can multiple identical units populate a single PROFIBUS DP trunk segment managed by one SIMATIC S7 master PLC?A: Yes, the PROFIBUS DP architecture supports up to 31 slave adapters per trunk without repeaters. Unique node addresses set via drive parameter 51.02 eliminate bus address conflict when deploying multiple inverters on one fieldbus line.Q: Is this fieldbus adapter rated for Class 1 Div 2 hazardous cabinet installation inside refinery MCC rooms?A: No. The open plug-in PCB design lacks intrinsic safety ratings for classified explosive atmosphere locations. ABB manufactures separate IS-certified fieldbus adapter hardware lines for hazardous area drive cabinet deployments.Q: Can cyclic motor speed/torque control data and acyclic drive parameter upload/download operations run simultaneously over the same bus segment without data interference?A: Yes. DP-V0 cyclic real-time motion control and DP-V1 acyclic parameter access operate on separated data channels within the frame structure; no external signal isolator hardware is required for mixed real-time and diagnostic communication workflows.Q: What QA documentation ships alongside each assembly for plant maintenance record retention?A: Every PCB includes a physical QC Passed label stamped with serial number and completed test checklist metrics. Digital copies of 24-hour full-baud-rate cyclic communication logs, 500 V insulation megger data, and bus short-circuit fault recovery validation reports can be emailed on request prior to shipment.
