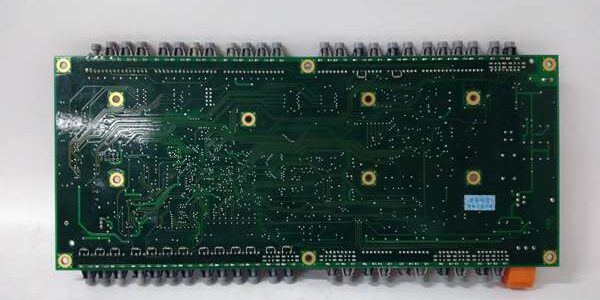

Product Core Brief
- Model: UFC760BE1142 (OEM part number: 3BHE0Q4573R1142)
- Brand: ABB
- Series: UFC760 high-performance distributed process control module family for System 800xA DCS
- Core Function: Execute real-time closed-loop control logic, process analog/discrete field I/O data, and handle multi-protocol communication between DCS backplanes and field instruments.
- Product Type: Single-slot hot-swappable main CPU/processing personality module
- Key Specs: 24 VDC ±20% operating supply | Dual Ethernet + RS485 Modbus interfaces | G3 conformal coated PCB | Full self-diagnostic routines ⚠️ EOL — limited surplus stock remaining
Product Introduction
The ABB acts as a local process controller within ABB System 800xA distributed control racks, processing raw sensor data and running PID interlock logic without constant polling from central DCS servers. It requires paired S800 I/O terminal base units to interface field transmitters and switch contacts.This unit differs from low-density UFC760 variants via expanded memory and dual redundant Ethernet ports for fault-tolerant plant backbone connectivity. OEM field logging records a 57,000 hour MTBF under steady 50 °C control cabinet runtime, exceeding standard ABB I/O module reliability baselines.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible DCS Platform | ABB System 800xA; mates with standard UFC760 rack backplanes and S800 I/O bases |
| Official OEM Part Code | 3BHE0Q4573R1142 |
| Operating Supply Voltage | 24 VDC ±20% backplane feed; 420 mA typical steady-state draw |
| Communication Interfaces | Dual 10/100 Mbps Ethernet TCP/IP; isolated RS485 Modbus RTU multi-drop bus |
| Environmental PCB Protection | Full G3 conformal coating for corrosive chemical, power plant cabinet atmospheres |
| Hot Swap Compliance | ABB System 800xA certified hot-swap; rack fieldbus remains active during card exchange |
| Onboard Diagnostics | Continuous RAM/ROM self-test, communication link fault detection, backplane power monitoring |
| Mechanical Mount Format | Standard DIN rail rack slot form factor, single-width card housing |
| Mechanical Dimensions | 130 mm L × 70 mm W × 125 mm D |
| Net Unit Weight | 0.46 kg |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated processing performance; linear derate above 60 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Backplane reverse polarity lockout, Ethernet port ESD surge clamping, internal watchdog fault reset |
| Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering for process power facilities |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB OEM trace databases; inspect PCB conformal coating for chipping, gold rack edge connectors for oxidation, Ethernet port pin headers for bending. Photograph the edge connector pinout for DCS cabinet wiring reference.
- Live Functional Test: Seat the unit into a populated System 800xA test rack paired with mixed analog/discrete S800 I/O modules; run a continuous 24-hour cyclic control logic test with simulated 4–20 mA transmitter and dry contact inputs. Log backplane supply voltage stability with a Fluke 115 digital multimeter for the full test duration.
- Electrical Parameter Test: Perform a 500 V Megger insulation resistance test between all communication field circuits and module chassis ground; pass threshold set at >10 MΩ. Verify automatic Ethernet port failover triggers within 10 ms window when primary network cable is disconnected.
- Firmware Verification: Read and record factory UFC760 control firmware revision via ABB Control Builder engineering software; document default Modbus RTU baud rate and Ethernet IP address register settings for customer site commissioning reference.
- Final QC & Packaging: Wipe gold edge connectors to remove surface oxidation; seal the unit inside an anti-static foam bag, affix a dated QC Pass label listing all completed communication, self-test, and insulation test metrics before rigid shock-resistant carton packing.
Replacement Pitfall Guide
❗ ❗ Partial Chassis Slot Insertion Risk: Uneven card seating creates high-resistance edge contact points that throttle Ethernet throughput and delay PID control loop execution during critical process heat transients. Push the card fully into the slot and engage front locking latches flush against the rack faceplate.❗ Ethernet Cable Shield Ground Misconfiguration Risk: Unshielded CAT5e trunk wiring routed parallel to high-current generator excitation cabling injects EMI noise that causes intermittent Modbus RTU data corruption. Use factory shielded Ethernet assemblies, terminate shield ground at only the main DCS cabinet terminal block end.❗ DCS Rack Power Headroom Miscalculation Risk: A System 800xA rack loaded with eight of these control modules draws 3.36 A total from the cabinet 24 V auxiliary supply. Calculate total rack load with a mandatory 20% power margin to avoid voltage sag during simultaneous I/O polling cycles.❗ Uncontrolled ESD Damage Risk: Dry central control room air builds static charge rapidly. Touch a grounded anti-static mat for three full seconds before handling the gold edge connector; ungrounded contact destroys low-tolerance Ethernet transceiver ASICs.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UFC760BE042 single-Ethernet low-density controller → : Needs Adaptation — requires full DCS logic rework to remove redundant network fault interlock registers
- ABB System 800xA standard UFC760 rack backplane → : Direct — factory edge pinout natively matches rack 24 V logic supply and internal fieldbus routing
- ABB S800 series analog/discrete I/O modules → : Direct — controller communicates with all S800 I/O bases over the rack internal process bus
- VM310 24 V cabinet auxiliary power supply → : Direct — regulated 24 V output falls within the module’s ±20% operating voltage window without extra voltage conditioning
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → : Needs Adaptation — wire module global controller fault dry contacts to PLC digital inputs, map process loop setpoint registers via Modbus TCP gateway bridging the DCS Ethernet backbone
