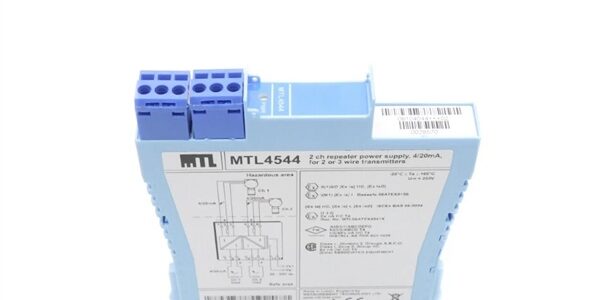

Product Core Brief

• Model: MTL4544
• Brand: MTL (Eaton Intrinsic Safety Division)
• Series: MTL4500 backplane-mount intrinsically safe analog barrier family
• Core Function: Galvanically isolate two independent 4-20mA hazardous-area transmitter loops, repeat analog signals to safe-area DAQ hardware while supporting HART digital communication for smart gas/thermal transducersEaton
• Product Type: Compact plug-in backplane analog isolator module, separate blue hazardous-area / grey safe-area removable terminal connectors
• Key Specs: Dual isolated 4-20mA channels | 1500VAC reinforced channel-to-power isolation | SIL3 IEC 61508 compliance | HART pass-through for 2/3-wire transmitters
• Note: Active OEM production; factory-new surplus and calibrated refurbished inventory available. Designed for rack backplane mounting, distinct DIN-rail MTL5544 variant exists with zero mechanical cross-compatibility.

Key Technical Specifications

• Channel Count: Two fully independent galvanically isolated analog input loops
• Signal Range: 0–24mA input (4–20mA nominal process span, overrange tolerant)
• Transmitter Drive Voltage: 16.5V DC delivered to field-side 2-wire transmitters at 20mA loadEaton
• Safe-Area Load Capacity: Max 450Ω resistance at 20mA nominal signal, 360Ω at full 24mA overrange
• Isolation Rating: 1500VAC reinforced galvanic separation between hazardous field, safe control, and module power circuits
• Measurement Accuracy: ≤15μA total error at 20°C operating temperature
• Thermal Drift: ≤0.8μA per °C across full operating temperature band
• Response Latency: 50μs rise time to reach 10% of final current value for fast pressure/gas sensor transients
• Power Input: 20–35VDC unregulated backplane DC supply, 96mA maximum total draw at full 20mA channel loadEaton
• HART Compatibility: Full bi-directional HART signal pass-through without analog signal attenuation
• Functional Safety Rating: SIL3 capable per IEC 61508, hardware fault tolerance HFT=0, no mandatory redundancy for single-loop safety logicEaton
• Mechanical Mounting: Dedicated MTL4500 series multi-slot backplane latching footprint, no DIN rail mounting support
• Operating Ambient: -20°C to +60°C continuous cabinet operation; conformal coated backplanes required for high-humidity cleanroom racksssl-uk.eat…
• Compliance Standards: ATEX / IECEx intrinsic safety, CE, UL, SEMI S2, IEC 61508 SIL3 certified

Product Introduction

This backplane-mount dual-channel safety barrier isolates hazardous gas manifold and plasma chamber transducer signals used on Lam TCP9400 etch control racks. It blocks high-amplitude 13.56MHz RF noise from corrupting analog readings sent to VME DAQ mezzanine hardware.Reinforced multi-transformer galvanic isolation eliminates ground loop offset drift, while transparent HART pass-through allows technicians to calibrate MFC and RTD transmitters without removing process signal wiring. The dual-channel layout halves rack slot count compared to single-channel MTL4541 barriers for dense fab I/O cabinets.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against Eaton MTL component trace databases; visual inspection for cracked terminal connector latches, burnt internal fuse traces, and discolored isolation transformers. All terminal wiring torque specs logged pre-test.
2. Live Bench Testing: Mount module to matching MTL4500 backplane; precision signal generator injects calibrated 4–20mA ramp signals across both channels for continuous 24-hour stability burn-in. Fluke process calibrator verifies HART bi-directional communication integrity.
3. Electrical Testing: Megger insulation tester validates 1500VAC isolation resistance >10GΩ between hazardous and safe circuit sides; channel linearity error measured below 0.05% full scale across full load resistance range.
4. Calibration & Config Backup: Store factory channel gain/offset calibration constants to internal non-volatile memory; export full isolation loop test report encrypted for post-install validation reference.
5. Final QC & Packaging: Secure loose terminal connector latches, wrap unit in anti-static foam, affix printed QC tag with linearity and isolation test metrics before sealed ESD bag packaging.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Backplane Variant Mismatch Risk: This unit only fits MTL4500 backplane racks; DIN-rail MTL5544 cannot plug into backplane slots, and cannot clip to standard DIN rails. Mixing variants creates ungrounded isolation barriers and permanent signal offset drift.❗ Hazardous/Safe Wiring Segregation Violation: Cross-running hazardous-area blue terminal wiring with safe-area grey trunking breaks intrinsic safety certification. Maintain minimum 50mm physical separation between field and control signal looms per ATEX wiring codesManualsLib.❗ Terminal Torque Overload Risk: Terminals require 0.4–0.6Nm tightening torque; over-torquing fractures plastic connector housings and shorts isolated field circuits. Use calibrated miniature torque screwdrivers for all wire terminationsEaton.❗ Backplane Load Derating Failure: Populating every backplane slot with full 20mA transmitter loads pulls supply current above backplane fuse rating, triggering intermittent analog signal dropout during recipe gas ramp sequences. Calculate total loop draw before full rack population.❗ Catastrophic ESD Damage Risk: Internal isolation transformer windings and HART signal conditioning ICs sustain permanent damage from ungrounded handling; certified ESD wrist strap and grounded anti-static mat mandatory before touching terminal connectors or PCB housing.4-Step Replacement Guide:

1. Pre-install: Lock out hazardous-area gas supply isolation valves, export all MFC/RTD sensor scaling tables via tool HMI; cut backplane 24VDC power supply per lockout-tagout protocols.
2. Removal: Unlatch the module tab adjacent to the CE marking label, rotate outward to disengage backplane power pins, disconnect blue hazardous and grey safe terminal connectors one at a time, place unit on ESD foam.
3. Install: Align replacement module parallel to backplane latching clips, press fully to lock power contacts, re-terminate field and control wiring to matching terminal pinouts at calibrated torque, separate signal looms per safety standards.
4. Power-on Test: Restore backplane 24VDC supply, confirm green power LED illuminates, run 30-minute continuous 4–20mA signal ramp scan to validate linearity and unbroken HART communication with field transmitters.

FAQ (Frequently Asked Questions)

Q: Can replace DIN-rail mounted MTL5544 barriers on existing TCP9400 control racks?A: No direct drop-in swap possible. uses backplane latching mechanics while MTL5544 clips to standard DIN rail; rack mounting footprint and power pinout differ entirely. Full backplane hardware rework is required to install in DIN rail cabinet layouts.Q: Does this barrier support hot-swapping while hazardous-area gas manifolds remain pressurized and backplane power live?A: Live removal disconnects isolation circuits mid-operation, exposing safe-area DAQ hardware to RF noise and ground loop transients that corrupt sensor calibration offsets. Full backplane DC power lockout and hazardous gas isolation valve shutdown are mandatory before extraction.Q: What warranty separates factory-new surplus stock from calibrated refurbished units?A: Factory-new MTL certified stock carries a 12-month industrial warranty covering isolation breakdown and channel linearity drift. Refurbished calibrated units ship with a 6-month limited warranty; aged transformer insulation layers develop gradual leakage resistance under continuous cabinet heat and plasma RF exposure.Q: Will swapping this analog barrier erase stored MFC sensor scaling and interlock threshold values?A: All process calibration data resides on the host VME DAQ mezzanine’s onboard EEPROM, independent of the barrier module’s internal memory. Export full sensor scaling profiles via the tool HMI pre-replacement to match existing transmitter span ranges post-install.Q: Can this hardware operate with Lam etch tools running legacy PCS v6.x software without driver modification?A: No software patch required. The unit acts as a passive current repeater with standard 4–20mA analog output, fully compatible with all analog DAQ register mapping used across PCS v6.0 through v9.0 releases. HART diagnostic readback functions remain usable with factory standard tool communication stacks.Q: What expected service window applies in 24/7 high-volume fab cabinet operation?A: Factory-new units target scheduled replacement at 48,000 operating hours. Refurbished variants degrade at 39,000 hours; transformer insulation leakage increases over time, widening analog noise floor and generating false gas flow deviation alarms during production wafer batches.Q: Can a single drive two separate hazardous-area MFC transmitters simultaneously?A: Yes, each channel operates with full galvanic isolation between loops; cross-talk between the two 4-20mA signals measures below 0.02% full scale. Independent HART calibration can run on each transducer without signal interference across channels.
