Product Core Brief

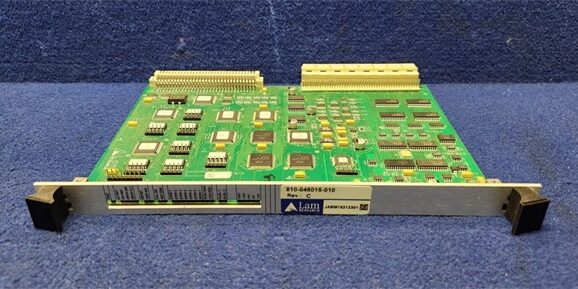

• Model: 810-046015-010 (VIOP III / VIOP-3, Revision 010; prior Rev 008 cross-compatible with motion register mapping differences)
• Brand: LAM Research
• Series: VMEbus Motion & Discrete I/O PCBA for Lam 2300 Flex, Kiyo, Exelan 200/300mm plasma etch cluster platforms
• Core Function: Synchronize multi-axis stepper motor wafer transport motion, read position encoder feedback, manage chamber door and robot safety interlocks, and exchange motion setpoint telemetry with the tool master VME SBC via proprietary VME parallel bus.
• Product Type: 6U dual-backplane VMEbus rack-mount motion I/O printed circuit board assembly
• Key Specs: Multi-axis stepper drive command generation | Differential encoder feedback sampling | <1ms motion interlock fault response latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock retained for installed 2300-series etch fleets.

Key Technical Specifications

• Form factor: Full-size 6U VME64 dual rear edge connector PCB with metal ejector latches
• Motion control capability: Multi-axis stepper trajectory generation with trapezoidal acceleration/deceleration profiling
• Encoder interface: Differential line receiver inputs for robot arm, lift pin, and wafer stage position encoders
• Discrete I/O capacity: Isolated digital sink/source channels for safety gate, end-of-travel, and vacuum interlock contacts
• VME bus communication: Proprietary parallel VME interface, fixed 250Hz motion telemetry update rate
• Operating supply: Regulated 5V / ±12VDC VME backplane power, maximum 21W continuous power draw under full axis load
• Fault detection latency: <1ms trip response for overtravel, encoder loss, and motion power supply failure conditions
• Signal isolation rating: 1500VAC reinforced isolation separating field motion wiring and VME logic circuits
• EMI mitigation: Multi-layer PCB ground plane segmentation and onboard ferrite filtering to suppress chamber RF plasma cross-talk
• Operating ambient range: 10°C to +50°C tool cabinet; storage -40°C to +85°C, non-condensing humidity limits
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, short-circuit auto cutoff for motion feedback lines
• MTBF rating: ≥91,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end semiconductor wafer processing equipment

Product Introduction

LAM 810-046015-015 acts as the dedicated motion orchestration backbone inside Lam legacy cluster etch tools. It translates wafer transport motion recipes from the master SBC into stepper motor drive signals, samples high-resolution encoder position data, and validates all mechanical safety interlocks before allowing chamber wafer transfer cycles.

Its core differentiator is sub-millisecond motion synchronization and reinforced RF noise isolation. Unisolated generic substitute boards pick up high-amplitude plasma RF interference that triggers false overtravel interlock trips, aborting wafer batches and reducing fab throughput. The unit supports controlled hot-swap service without full robot controller shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v5.8 through v7.9; PCS v8.1 and newer releases drop native VME register handshake compatibility with this Rev 010 hardware.
• Recommended onboard firmware revision: Factory pre-flashed Rev 010 build; older Rev 008 firmware contains encoder sampling jitter that creates inconsistent wafer placement offset across sequential lots.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.1.2 breaks bidirectional motion setpoint/position telemetry polling with the board. Match host controller and VIOP III board firmware release families before chamber PM work.
• Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all motion axis velocity/acceleration profiles and interlock trigger thresholds via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove the VIOP III motion board while the process chamber remains pressurized and robot axes energized?VME buffered bus circuits prevent full loss of motion telemetry data, but fully de-energize all robot stepper drives, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live plasma RF noise generates transient bus interference that corrupts motion axis tuning offsets stored on the unit’s onboard flash memory. Always complete a full motion parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy cluster tool spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic encoder receiver ICs and omit full RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour motion load bench calibration before installation into production etch chambers.
3. Will swapping this motion I/O board erase saved axis velocity profiles or mechanical interlock trigger limits?All motion trajectory tuning tables, encoder offset calibrations, and mechanical safety trip thresholds reside on the board’s internal flash memory. Complete a full motion parameter backup via the tool HMI before any swap to restore calibration data if VME handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged differential signal ICs create unquantified risk of mid-run wafer misplacement that scraps production wafer batches.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated encoder channel tolerances, zero operating hour thermal fatigue on motion semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement signal transceivers, and skip full plasma RF interference cycling testing; hidden motion drift defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. What cross-compatibility differences exist between Rev 008 and Rev 010 of this VIOP III board?This Rev 010 variant implements updated VME register mapping and optimized encoder sampling timing that eliminates wafer placement drift under heavy RF chamber loads. Direct cross-replacement of older Rev 008 hardware with Rev 010 requires full re-calibration of all robot axis position offsets and revalidation of all mechanical interlock trigger limits.
7. What routine maintenance schedule applies to this motion control board in high-volume production fabs?Execute full encoder signal and motion interlock validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 40,000 operating hours, as onboard differential signal conditioning ICs develop gain drift under continuous cabinet heat and plasma RF exposure that degrades long-term wafer transfer repeatability.
