Product Core Brief
- Model: TC-501-02-4M5
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Provide pre-wired 40-channel signal interconnection between Trusted TMR input I/O modules and matching T8800 / T8830 input FTAs for SIL3 SIS ESD/F&G safety sensor and contact loopsRockwell A…
- Product Type: Pre-terminated SmartSlot V2 internal cabinet interconnect cable assembly (INPUT dedicated)
- Key Specs: 40 input signal channels | LSZH flame retardant insulation (02 suffix) | Total length 4.5 m (4M5) | 96-way Type-C module end / Type-R FTA end proprietary SmartSlot connectors | Condition: New Original Surplus
Product Introduction

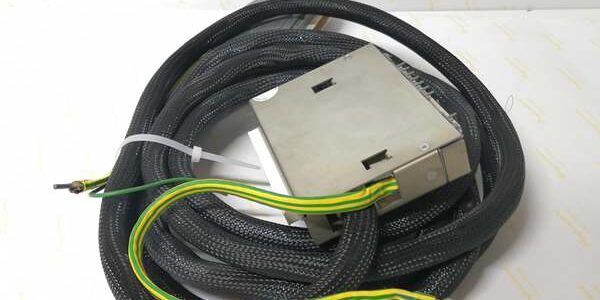

The ICS Triplex TC-501-02-4M5 is a dedicated internal SmartSlot cable for Trusted TMR input I/O architectures, carrying triplicated analog and discrete input signals from backplane-mounted cards such as T8403 digital input and T8431 analog input modules to T8800 / T8830 field termination assemblies without signal distortion. Full overall shielding suppresses cabinet EMI interference to preserve SIL3 2oo3 voting signal integrity.This input-only cable differs completely from TC-505 output cables via unique input pin mapping optimized for 2-wire transmitters and volt-free safety contacts. OEM documentation limits maximum reliable run length to 15 m; this 4.5 m variant fits most standard single/dual cabinet SIS layoutsRockwell A….
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Naming Breakdown | TC-501 = Input SmartSlot V2 internal cable; 02 = LSZH flame retardant insulation; 4M5 = 4.5 m finished lengthRockwell A… |
| Supported Channel Count | 40 mixed analog/digital TMR input signal lanes |
| Connector Configuration | Module side: 96-way Type-C male; FTA side: 96-way Type-R male proprietary keyed SmartSlot plugs |
| Cable Construction | Round multi-pair overall shielded, silver-plated copper differential signal pairs |
| Insulation & Sheath | Low Smoke Zero Halogen (LSZH), IEC 60332-3 Cat A flame retardant safety ratingRockwell A… |
| Rated Operating Voltage | Max 60 VDC continuous field signal voltage; nominal 24 VDC safety input loops |
| Operating Ambient Temp | -20 °C to +70 °C cabinet; storage -40 °C to +85 °C |
| Maximum Recommended Run Length | 15 m (longer runs introduce crosstalk and analog measurement offset) |
| Application Restriction | Internal cabinet wiring only; not rated for external conduit or field outdoor routing |
| Safety & Environmental Certifications | CE, UL AWM 20233, RoHS compliant, SIL3 system qualified |
| Mechanical Dimensions | 4.5 m finished length, integrated molded strain relief boots on both connector ends |
| Compatible Hardware | T8403 DI, T8431 AI modules + T8800 / T8830 input FTAs only |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial batch labels against Rockwell OEM production manifests to screen counterfeit aftermarket assemblies. Visually inspect both SmartSlot connector metal shells for pin bending, cable sheath for cuts, and strain relief boots for cracking.
- Live Functional Test: Mate one end to a populated T8403 input module in a Trusted test chassis, the other to a T8800 FTA with simulated safety contact and transmitter loads. Run a 24-hour soak cycle, log channel signal continuity and noise margin hourly.
- Electrical Parameter Test: Use a 500 V Megger to test insulation resistance across all differential pairs and overall shield; pass threshold >10 MΩ. Verify zero cross-channel short circuits across all 40 lanes.
- Component Verification: Passive cable assembly with no firmware. Cross-check cable part suffix marking to confirm LSZH 02 insulation and 4.5 m length labeling match TC-501-02-4M5 specifications.
- Final QC & Packaging: Coil cable neatly with factory twist ties, place inside anti-static poly bag. Affix dated QC Pass sticker listing insulation resistance test results and full soak runtime before warehouse storage.
Replacement Pitfall Guide
❗ Cable Model Mismatch Risk: TC-501 series is strictly for input I/O; substituting TC-505 output cables creates misaligned pin mapping and permanent channel fault alarms on all analog/digital input points.❗ Insulation Suffix Confusion Risk: 02 = LSZH flame retardant; 03 = standard UL PVC. Swapping to 03 PVC cables violates fire safety requirements for offshore and refinery SIS cabinet installations.❗ Connector Mating Force Misuse Risk: SmartSlot Type-C/R connectors require full straight insertion; angled plugging bends internal gold pins and creates intermittent open-circuit signal dropouts under cabinet vibration.❗ Cable Length Miscalculation Risk: Excess slack bundled tightly creates EMI crosstalk; routing runs exceeding 15 m introduce analog signal offset that breaks TMR 2oo3 voting logic thresholds.❗ ESD Damage Risk: Unplugged exposed SmartSlot pins are ESD sensitive. Use a grounded anti-static mat during module/FTA disconnection in low-humidity cabinet spaces; static discharge erodes connector plating.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- T8403 (40-Ch TMR Digital Input Module) → TC-501-02-4M5 : Direct Replacement — Native SmartSlot input pinout matching, zero field wiring rework
- T8800 (40-Ch Fused Digital Input FTA) → TC-501-02-4M5 : Direct Replacement — Dedicated input cable mechanical lock and signal mapping
- T8451 (Digital Output Module) → TC-501-02-4M5 : Incompatible — TC-505 output cable required; TC-501 input pinout cannot process actuator output drive signals
Benchmarks
- Channel-to-channel crosstalk rejection: >120 dB @ 1 MHz differential signal frequency
- Signal propagation delay full cable run: 18 ns maximum across all 40 differential pairs
- Continuous noise margin: >1.2 VDC signal separation at full 40-channel mixed analog/digital input load
