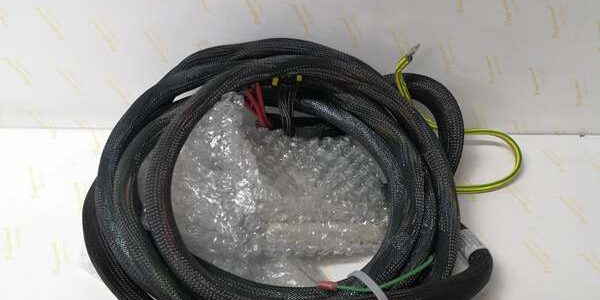

Product Core Brief
- Model: TC-505-02-4M5
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Provide pre-wired 40-channel signal interconnection between Trusted TMR output I/O modules and matching T8850 mixed output FTAs for SIS ESD/F&G safety loops
- Product Type: Pre-terminated SmartSlot V2 internal cabinet interconnect cable assembly
- Key Specs: 40 output signal channels | LSZH flame retardant insulation (02 suffix) | Total length 4.5 m (4M5) | 96-way Type-C module end / Type-R FTA end connectors | Condition: New Original Surplus
Product Introduction
The ICS Triplex TC-505-02-4M5 is a dedicated internal SmartSlot cable for Trusted TMR output I/O architectures, carrying triplicated analog and digital output signals from backplane-mounted cards such as T8451 and T8480C to T8850 field termination assemblies without signal distortion. Its full overall shielding suppresses cabinet EMI interference to preserve SIL3 voting signal integrity.This cable is specified for indoor cabinet-only routing, differentiated from TC-501 input cables by output-specific pin mapping and 40-channel dual analog/digital signal routing capacity. OEM documentation limits maximum reliable run length to 15 m; this 4.5 m variant fits most standard dual-cabinet SIS layoutsRockwell A….
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Naming Breakdown | TC-505 = Output SmartSlot V2 cable; 02 = LSZH flame retardant insulation; 4M5 = 4.5 m total lengthRockwell A… |
| Supported Channel Count | 40 mixed analog/digital TMR output signal lanes |
| Connector Configuration | Module side: 96-way Type-C male; FTA side: 96-way Type-R male proprietary SmartSlot plugs |
| Cable Construction | Round multi-pair overall shielded, silver-plated copper differential pairs |
| Insulation & Sheath | Low Smoke Zero Halogen (LSZH), IEC 60332-3 Cat A flame retardant ratingRockwell A… |
| Rated Operating Voltage | Max 60 VDC continuous field signal voltage; nominal 24 VDC safety loops |
| Operating Ambient Temp | -20 °C to +70 °C; storage -40 °C to +85 °C |
| Maximum Recommended Run Length | 15 m (longer runs risk crosstalk and signal offset)Rockwell A… |
| Application Restriction | Internal cabinet wiring only; not rated for external conduit or field outdoor routing |
| Safety & Environmental Certifications | CE, UL AWM 20233, RoHS compliant |
| Mechanical Dimensions | 4.5 m finished length, integrated strain relief boots on both connector ends |
| Compatible Hardware | T8451 DO, T8480C AO modules + T8850 mixed output FTA only |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial batch labels against Rockwell OEM production manifests to screen counterfeit aftermarket assemblies. Visually inspect both SmartSlot connector metal shells for pin bending, cable sheath for cuts, and strain relief boots for cracking.
- Live Functional Test: Mate one end to a populated T8451 output module in a Trusted test chassis, the other to a T8850 FTA with simulated valve actuator loads. Run a 24-hour soak cycle, log channel signal continuity and noise margin hourly.
- Electrical Parameter Test: Use a 500 V Megger to test insulation resistance across all differential pairs and overall shield; pass threshold >10 MΩ. Verify zero cross-channel short circuits across all 40 lanes.
- Component Verification: No firmware present on passive cable assemblies. Cross-check cable part suffix marking to confirm LSZH 02 insulation and 4.5 m length labeling match TC-505-02-4M5 specifications.
- Final QC & Packaging: Coil cable neatly with factory twist ties, place inside anti-static poly bag. Affix dated QC Pass sticker listing insulation resistance test results and full soak runtime before warehouse storage.
Replacement Pitfall Guide
❗ Cable Model Mismatch Risk: TC-505 series is strictly for output I/O; substituting TC-501 input cables creates misaligned pin mapping and permanent channel fault alarms on all analog/digital output points.❗ Insulation Suffix Confusion Risk: 02 = LSZH flame retardant; 03 = standard UL PVC. Swapping to 03 PVC cables violates fire safety requirements for offshore and refinery SIS cabinet installations.❗ Connector Mating Force Misuse Risk: SmartSlot Type-C/R connectors require full straight insertion; angled plugging bends internal gold pins and creates intermittent open-circuit signal dropouts under cabinet vibration.❗ Cable Length Miscalculation Risk: Excess slack bundled tightly creates EMI crosstalk; routing runs exceeding 15 m introduce signal offset that breaks TMR 2oo3 voting logic thresholds.❗ ESD Damage Risk: Unplugged exposed SmartSlot pins are ESD sensitive. Use a grounded anti-static mat during module/FTA disconnection in low-humidity cabinet spaces; static discharge erodes connector plating.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- T8451 (40-Ch Mixed Digital Output TMR Module) → TC-505-02-4M5 : Direct Replacement — Native SmartSlot pinout matching, zero field wiring rework
- T8850 (40-Ch Mixed Analog/Digital Output FTA) → TC-505-02-4M5 : Direct Replacement — Dedicated output cable mechanical lock and signal mapping
- T8403 (Digital Input Module) → TC-505-02-4M5 : Incompatible — TC-501 input cable required; TC-505 output pinout cannot process discrete input contact signals
Benchmarks
- Channel-to-channel crosstalk rejection: >120 dB @ 1 MHz differential signal frequency
- Signal propagation delay full cable run: 18 ns maximum across all 40 differential pairs
- Continuous noise margin: >1.2 VDC signal separation at full 40-channel mixed analog/digital load
