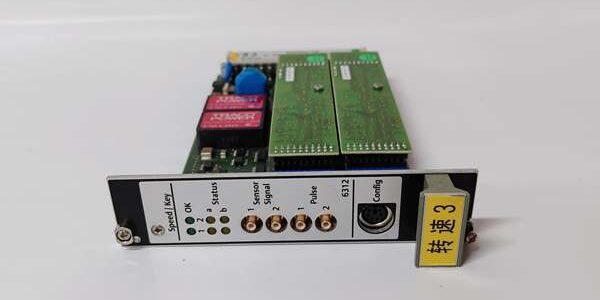

Product Core Brief

• Model: A6312
• Brand: EPRO (Emerson Machinery Health Division, Germany)
• Series: A6000 rack system, compatible with CSI 6500 / MMS6000 machinery protection platforms
• Core Function: Dual independent channel monitor for shaft rotational speed, zero-speed detection, key phase reference, rotation direction judgment for steam/gas turbines, centrifugal compressors and large rotating machinery safety protection
• Product Type: Single-slot hot-swappable speed & key phase monitor rack module
• Key Specs: 2 galvanically isolated pulse inputs; 0–20kHz frequency range; support 1–255 gear teeth trigger; independent relay alarm + 4–20mA analog output per channel; front Mini-DIN local configuration portNote: Discontinued end-of-life machinery monitoring hardware, stocked exclusively as unopened factory-calibrated New Surplus inventory, fully API 670 compliant for critical turbo-machinery safety loops.

Key Technical Specifications

Input Channel & Sensor Compatibility

• Dual differential galvanically isolated input channels (AIN1, AIN2)
• Supported sensors: PR642x eddy current displacement probes, PR9376 Hall-effect pulse sensors
• Input impedance: >100 kΩ; input voltage range ±27.3 VDC
• Frequency measurement bandwidth: DC ~ 20 kHz, max detectable shaft speed 65,535 RPM
• Trigger window: Configurable 5–10 ms pulse width filtering to eliminate electrical noise false triggers
• Gear tooth setup: Programmable 1–255 target teeth per shaft for RPM conversion

Power & Output Circuits

• Rack supply: Nominal +24 VDC, redundant dual power input for fault tolerance
• Sensor excitation power: -26.75 VDC per channel, max 35 mA short-circuit protected
• Analog outputs: Independent 4–20mA proportional speed signal per channel, load ≥500 Ω
• Alarm relays: Isolated SPDT dry contact per channel (over-speed, under-speed, zero-speed, sensor fault); max switching 250VAC / 30VDC 5A resistive
• Front buffered pulse output: Repeats raw key-phase pulse for external DCS / oscilloscope diagnostic capture

Communication & Configuration

• Front Mini-DIN RS232 port: Local setup via AMS 6500 PC software (RPM trip thresholds, gear teeth, alarm logic)
• Rear RS485 d4/z4 bus: Connects to MMS68xx centralized diagnostic host for historical speed trending data
• Hot-swap capability: Module removable live without full rack power shutdown

Environmental & Mechanical

• Rack form factor: 3U single slot DIN 41612 48-pin rear connector for standard 19” A6000 chassis
• Operating cabinet temperature: -20°C ~ +60°C; storage -40°C ~ +70°C
• Humidity: 5%–95% non-condensing; full conformal coated PCB for refinery/offshore corrosive atmospheres
• Hazardous certification: FM Class I Div 2 Groups A/B/C/D cabinet mounting certified, meets ISO 10816 machinery vibration standards
• Unit weight: 1.0 kg; dimensions 128mm H × 25mm W × 160mm D

Product Introduction

This dual-channel rack monitor delivers full-spectrum rotational speed protection and key-phase reference signals required for turbo-machinery safety trip logic. Two fully isolated input paths enable simultaneous monitoring of separate shafts or redundant speed pickup points on a single rotor for SIL-compliant overspeed protection.It converts pulse signals from gear-tooth eddy current or Hall sensors into precise RPM values, with independent configurable alarm thresholds for overspeed, underspeed, zero-speed standstill interlocks, and broken-sensor fault detection. The onboard key-phase capture function provides angular reference for vibration phase analysis, critical for diagnosing rotor imbalance, misalignment and blade pass frequency defects.Front-panel buffered pulse output simplifies field troubleshooting without rack shutdown, while redundant rack power and galvanic isolation block ground-loop noise common on long sensor cable runs in power plant and refinery machinery houses.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference OEM serial batch logs; inspect front Mini-DIN port, rear 48-pin rack connector, front status LED panel for physical damage; verify factory anti-static packaging seal integrity.
2. Live Bench Testing: Install module in A6000 test rack powered by Fluke regulated 24VDC dual redundant supply; connect simulated gear-tooth pulse signal generator to both channels, run 24-hour continuous RPM sweep testing across full 0–20kHz range, validate overspeed/zero-speed relay trip logic and 4–20mA analog output linearity.
3. Electrical Isolation Test: Megger insulation resistance >10MΩ between sensor input circuits, rack power and relay alarm outputs; confirm short-circuit sensor excitation protection activates without module damage.
4. Configuration Backup: Capture factory default parameter template (gear teeth count, alarm setpoints, pulse filter window) via AMS 6500 software, document RS485 bus wiring polarity for field service reference.
5. Final QC Packaging: Attach serialized printed test pass tag listing RPM linearity and relay trip test results; seal unit in foam-lined static-shielded bag to protect rear rack connector pins during transit and warehouse storage.

Installation Pitfalls & 4-Step Replacement Guide

❗ Firmware Compatibility Risk: A6000 rack firmware V1.20 and older lack dual-channel redundant overspeed fault logging; upgrade chassis firmware to V1.40+ before module swap to avoid blind speed measurement failure conditions on turbine safety loops.❗ Gear Tooth Parameter Mismatch Risk: Incorrect programmed tooth count creates massive RPM calculation deviation and false overspeed trips; record original tooth configuration via AMS software before removing legacy A6312.❗ Sensor Wiring EMI Interference: Route eddy current/Hall sensor shielded cables separate from VFD high-current power wiring; parallel power cabling induces noise pulses triggering false zero-speed alarms.❗ Redundant Power Miswiring: Single-sided rack 24V supply connection eliminates redundant power fault tolerance, violating API 670 overspeed protection design requirements.❗ ESD Circuit Damage Risk: Ungrounded technicians touching rear rack connector pins destroy front-end pulse comparator circuits; latent ESD damage creates intermittent RPM signal dropout surfacing after 2–4 weeks of continuous turbine runtime.

4-step replacement guide:

1. Pre-install LOTO: Lock out turbine machinery and A6000 rack dual 24VDC power; attach grounded anti-static wrist strap to rack DIN rail ground bus; photograph rear 48-pin wiring terminal mapping and front Mini-DIN configuration cable layout.
2. Removal: Unscrew front panel locking fasteners, slide legacy A6312 straight out of live hot-swap slot; disconnect sensor excitation cables, RS485 bus wiring, 4–20mA analog output and alarm relay wiring channel by channel.
3. Hardware Install: Slide new A6312 fully into vacant 3U rack slot, hand-tighten front mounting screws; replicate all rear wiring polarity from photo reference, reconnect sensor pulse cables and dual redundant rack 24V power feeds.
4. Power-on Validation: Restore rack power; connect laptop via front Mini-DIN port, load original gear tooth and alarm threshold configuration; simulate full RPM sweep to verify linear 4–20mA output, overspeed relay trip activation and stable key-phase pulse capture without noise-induced false faults.

FAQ

Q: Can A6312 support redundant 1oo2 overspeed protection for SIL3 turbine safety systems?A: Single A6312 provides dual independent sensor input channels for redundant speed pickup on one shaft; full SIL3 overspeed compliance requires two separate modules in distinct rack slots with physically separated sensor cable routes for 1oo2 voting logic.Q: Does the module support hot-swapping while the A6000 rack remains fully energized?A: The hardware is rated hot-swappable, but all field sensor, analog output and alarm relay wiring must be disconnected before extracting the module to avoid inductive voltage transients damaging internal pulse processing circuits.Q: What warranty coverage applies to bench-tested surplus units?A: All stocked modules carry a 12-month functional warranty covering rack communication, pulse input comparator, analog output and relay alarm circuit defects. Damage from misconfigured gear tooth parameters, unshielded sensor wiring EMI, reversed rack power polarity or ungrounded ESD handling is excluded from coverage terms.Q: Is there a direct drop-in modern replacement for discontinued ?A: Emerson’s current CSI 6500 speed monitor series offers equivalent dual-channel speed/key-phase functionality, but rear 48-pin pinout, front Mini-DIN configuration port and AMS software parameter mapping differ; full cabinet wiring retermination and turbine overspeed trip logic revalidation is mandatory with no unmodified direct swap capability.Q: Can multiple gear tooth targets with different tooth counts be monitored simultaneously on one ?A: Yes. Each channel stores independent programmable tooth count values, allowing simultaneous speed measurement of two separate shafts with different gear target geometries on one single-slot module.Q: Can this module accept AC magnetic pickup sensors without preconditioning?A: No. It is designed exclusively for EPRO PR-series eddy current and Hall-effect active pulse sensors; passive AC magnetic pickups require external signal conditioning amplifiers to match the input voltage range.Q: Can the 4–20mA analog speed output connect directly to DCS analog input cards?A: Yes, the isolated 4–20mA drive circuit supports standard DCS AI card loads ≥500 Ω; for low-impedance PLC inputs (<200 Ω), install external signal isolation barriers to prevent output voltage loading and RPM reading drift.
