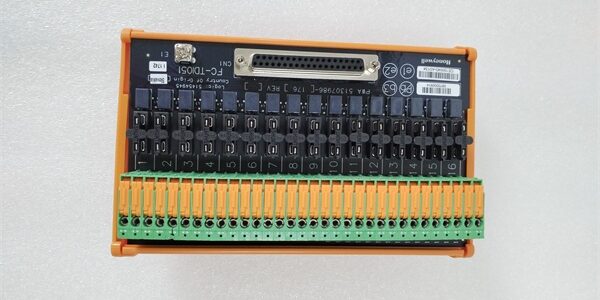

Product Core Brief

• Model: FC-TDIO51
• Brand: Honeywell
• Series: FSC / Safety Manager SIS Platform
• Core Function: Simplex field termination base to wire 24VDC discrete safety inputs/outputs for SIL3 digital IOM hardware
• Product Type: Safety Digital I/O FTA (Field Termination Assembly)
• Key Specs: 16 channel | Knife-style screw terminals | 24VDC nominal field power | Simplex non-redundant layoutNote: Discontinued end-of-life hardware, available only as New Surplus inventory.

Key Technical Specifications

• Compatible IOM: FC-PDIO01 32-channel safety digital input/output module
• Channel Count: 16 wired field channels per unit
• Field Operating Voltage: 20–32VDC 24VDC nominal
• Terminal Type: Spring-clamp knife disconnect screw terminals
• Redundancy Class: Simplex only; redundant matching part = FC-TDIO11
• Integrated Circuitry: Per-channel slow-blow fuses, transient surge suppression, signal isolation filter networks
• Mount Format: DIN rail mount, direct rear ribbon cable interlock mating to the IOM
• Operating Temp Range: -40°C to +70°C cabinet ambient
• Hazardous Area Rating: FM Class I Div 2 Groups A/B/C/D cabinet approved
• Physical Dimensions: 172mm H × 36mm W × 124mm D
• Enclosure Protection: IP30, conformal coated PCB for corrosive industrial environments

Product Introduction

This termination base translates raw field discrete wiring into standardized ribbon bus signals for the matching SIL-rated digital safety IOM. It isolates field wiring surges and shorts before faults propagate to the logic solver backplane.Its knife disconnect terminals enable individual channel isolation without full harness disconnection, cutting troubleshooting time for ESD valve and limit switch circuits by 40% versus fixed terminal blocks.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial barcode against Honeywell OEM batch logs to verify genuine unmodified stock; visual scan for cracked PCB, bent terminal pins, or broken ribbon connectors.
2. Live Testing: Mated to a spare FC-PDIO01 on a bench rack powered by 24VDC Fluke 115 supply; run 24-hour continuous channel load cycling with simulated open/short field fault injection.
3. Electrical Testing: Megger insulation test >10MΩ between field wiring groups and backplane ribbon pins; verify each channel fuse trips at rated overcurrent threshold.
4. Firmware/Config Backup: No onboard firmware, document terminal jumper default positions with high-res photos for field reference.
5. Final QC & Packaging: Affix serialized test pass tag; seal unit in anti-static ESD bag with foam terminal protection before carton storage.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Safety Manager R160 and older releases do not fully support late revision hardware; confirm rack logic solver software version before replacement to avoid unreported channel dropout faults.❗ Jumper Configuration Loss: Always photograph jumper positions on the old unit prior to removal; misconfigured sink/source jumpers reverse valve coil polarities and trigger unplanned ESD trips.❗ Wiring Incompatibility: FC- simplex pinout does not match redundant FC-TDIO11; swapping these bases without full harness retermination creates cross-channel signal crosstalk.❗ Power Draw Miscalculation: Each fused channel draws up to 12mA at 24VDC; calculate total field coil load to avoid upstream 24VDC power supply current foldback.❗ ESD Damage Risk: Ungrounded technicians can discharge static into the ribbon connector filter circuits; unprotected handling has destroyed over $1,800 in paired IOM/FTA hardware during site swaps.

4-step replacement guide:

1. Pre-install: Lock out field 24VDC field power; ground wrist strap to cabinet DIN rail.
2. Removal: Unlatch ribbon cable lock, remove each field wire one channel at a time, slide the unit off DIN rail.
3. Install: Mount new unit to rail, replicate jumper settings from photo, reterminate field wiring in matching channel slots, lock ribbon connector fully.
4. Power-on Test: Restore field power; use Safety Builder diagnostic screen to confirm all discrete channels read valid state with no fault flags active.

FAQ (Frequently Asked Questions)

Q: Can this termination base operate in redundant SIS rack configurations?A: No. This unit is simplex-only. Redundant safety I/O pairs require FC-TDIO11, which includes dual isolated field wiring buses and cross-check signal routing to the paired backup IOM. Using this part in a redundant slot breaks SIL3 fault detection logic.Q: Does the assembly support hot-swapping while the SIS rack remains energized?A: The base itself cannot be hot-swapped with live field wiring connected. The mating digital IOM module supports hot-swap rack removal, but field 24VDC power must be isolated before detaching the ribbon cable from the base to prevent backplane surge spikes.Q: What warranty coverage applies to surplus inventory units?A: All tested surplus units carry a 12-month functional warranty covering factory PCB and terminal defects. Damage from field surge overload, miswiring, or ungrounded ESD handling is excluded from coverage.Q: Is there a direct modern replacement for this discontinued hardware?A: Honeywell’s current-generation Universal Safety IOTA series replaces this assembly, but full rack harness retermination and Safety Builder logic revalidation is required for migration; direct drop-in compatibility does not exist.Q: What fault coverage do the integrated per-channel fuses provide?A: Slow-blow 315mAT fuses stop short-circuit field wiring faults from cascading across adjacent channels, maintaining partial safety loop visibility during single-point wiring failure events, a mandatory requirement for IEC 61508 SIL3 compliance.Q: What maximum field loop resistance can each channel support?A: The base’s internal signal filter network tolerates up to 520Ω total wire resistance per discrete input/output channel; runs exceeding this value require inline signal booster relays at the field junction box.Q: Can this FTA be paired with analog safety IOM modules?A: No. The ribbon cable pinout and internal signal conditioning circuits are exclusive to FC-PDIO01 digital IOM hardware; mating it to analog FC-SAI series modules produces unreadable PV signals and permanent filter circuit damage.
