Product Core Brief

• Full Model ID: , OEM part number (Universal AC/125VDC input variant)
• Brand: FOXBORO (Schneider EcoStruxure Foxboro I/A Series)
• Series: I/A Series Compact 200 factory-certified high-capacity rack power supply subsystemparesource.schneider-electric.com
• Core Function: Deliver galvanically isolated, tightly regulated 24VDC power to Compact 200 DIN rail baseplates loaded with FCP controllers, all analog/discrete/serial FBM I/O modules, and FCM fiber extenders. Built-in active PFC and multi-layer fault protection block grid transients, overload and short-circuit damage to downstream DCS hardware; this is the only factory validated 400W PSU for fully populated Compact 200 racks, third-party uncertified power supplies void system compatibility validationparesource.schneider-electric.com.

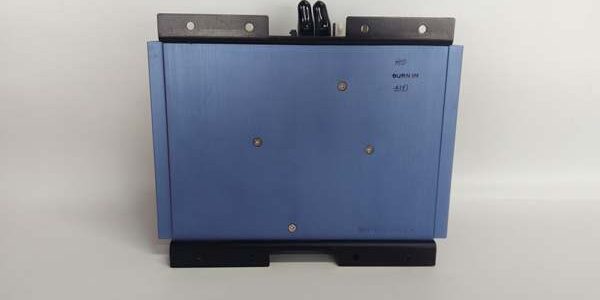

• Form Factor: Heavy-duty horizontal DIN rail mount unit with large integrated aluminum fin heat sink, multi-group screw terminal DC output banks, dedicated AC/DC input terminals
• Key Specs: 400W continuous rated power, 16.7A @ 24VDC output, universal dual input (85–265VAC / 108–145VDC auxiliary DC), 3000VAC input-output transformer isolation, active power factor correction
• Condition: New Original Surplus, factory anti-static sealed unused OEM stock
• Commercial Signals: End-of-life discontinued OEM hardware with limited remaining inventory; 2–3 business day ground lead time North America; 12-month full functional warranty including 24-hour full-load bench test reports
• Critical Note: Distinct from sibling variant P0922YC (24VDC only input); supports standard mains AC control rooms while P0922YC is exclusively for DC auxiliary power cabinets, cannot cross-replace directlyparesource.schneider-electric.com.



Key Technical Specifications

Parameter	OEM Verified Test Value
Complete Model	( universal AC/125VDC input)
Rated Continuous Output Power	400W nominal
DC Output Regulation	24.0VDC ±0.2VDC, max 16.7A continuous load
Input Voltage Window	85–265VAC (47–63Hz) / 108–145VDC DC auxiliary inputparesource.schneider-electric.com
Input RMS Current	5.6A max @ 85VAC low line; 2.5A max @ 230VAC high line
Cold Start Inrush Peak	20A @ 110VAC; 40A @ 220VAC
Full-Load Efficiency	Min 77% @ 85VAC; Typical 92% @ 230VAC
Power Factor Correction	Built-in active PFC for industrial grid compliance
Input-Output Dielectric Isolation	3000VAC reinforced transformer isolation
Output Ripple & Noise	≤100mV peak-to-peak (20MHz bandwidth)
Full Protection Suite	Dual-stage foldback current limiting, fixed 28VDC overvoltage shutdown, auto-reset short-circuit recovery
Soft-Start Delay	3s nominal turn-on to eliminate inrush voltage overshoot
Status Diagnostic LEDs	Green = Normal ≥23.5VDC; Red = Undervoltage <22VDC fault lockout
Operating Ambient Temp	-10°C ~ +60°C continuous rack operation; -40°C ~ +85°C storage
PCB Coating Standard	ISA S71.04 G3 conformal coating for corrosive refinery/chemical cabinet atmospheres
Hazardous Location Certification	FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only installation)
Valid DCS Load Compatibility	All Compact 200 hardware: FCP270/FCP280, all FBM analog/discrete/comms I/O, FCM fiber extenders
Mounting Standard	Standard 35mm DIN rail horizontal installation; requires 25mm vertical clearance between adjacent PSUs
Physical Dimensions & Weight	21.6cm × 17.8cm × 10.7cm; total weight 2.84kg



Product Introduction

Fully loaded Compact 200 baseplates fitted with redundant dual FCP280 controllers, mixed high-density FBM I/O cards and multiple FCM2F2 fiber extenders demand high-wattage, low-noise rack power. Smaller FPS120-24 / FPS240-24 OEM power supplies lack sufficient continuous capacity and create voltage sag during simultaneous peak I/O channel cycling and bus traffic surges, triggering intermittent HART communication dropout and analog measurement drift on AI modules.

This OEM-certified 400W unit delivers stable galvanically separated 24VDC with tightly controlled high-frequency ripple filtered out, eliminating signal interference with sensitive process measurement I/O. Integrated active power factor correction reduces facility reactive power consumption and metering costs, while dual-stage current limiting prevents sustained overload from burning downstream FBM ADC/DAC circuits. OEM reliability testing records a 270,000-hour MTBF at steady 40°C cabinet ambient temperature. Full transformer isolation blocks ground loop currents generated by mixed AC/DC field sensor wiring routed near VFD and MCC motor control centers.



Key Selling Points & Differentiators

1. Quantified full-rack single-unit capacity: One powers a complete baseplate carrying paired redundant FCP280 processors, up to eight mixed analog/discrete/serial FBM modules and two FCM2F2 fiber extenders; lower-wattage OEM PSUs require parallel stacking with dedicated load-sharing adapters to match equivalent load capacity.
2. Exclusive factory hardware validation: The only high-power supply fully signal-interference tested with all I/A Series Compact 200 hardware; generic industrial third-party PSUs introduce unfiltered high-frequency ripple causing random HART device timeouts and temperature measurement drift on RTD/RTD FBM cards.
3. Complete continuous full-load bench screening: Every unit undergoes a 24-hour 100% full-load cycling test across low-line (85VAC) to high-line (265VAC) AC input ranges, paired with 500V hipot isolation testing and real-time output ripple logging before shipment; raw stability test data attached to each shipment for plant audit compliance.
4. Clear cross-variant compatibility guardrail: This variant accepts universal mains AC or 125VDC auxiliary input for standard control rooms; matching P0922YC variant only supports 24VDC input and cannot replace this unit in 120/240VAC mains-powered cabinets.
5. Defined non-recommended deployment scope: Not engineered to supply direct field 4–20mA transmitter loop power; all instrument excitation must be sourced locally from individual FBM channel power feeds, not the rack PSU output terminals.
6. Supply and warranty transparency: New surplus stock carries a 12-month functional warranty covering transformer windings, PFC control circuits, and output regulation semiconductors; warranty excludes damage from input surge transients, insufficient DIN rail ventilation clearance, or unregulated parallel stacking without Foxboro OEM load-sharing adapters.



Quality Transparency Inspection SOP

Incoming Verification

All serial numbers cross-reference OEM original production batch logs to confirm genuine surplus hardware. Technicians inspect extruded aluminum heat sink fin integrity, multi-pin power terminal contact condition, and full PCB conformal coating for oxidation, scratch damage, or cracked isolation barriers. Terminal screw torque is calibrated to OEM specified torque rating to avoid loose wiring hotspots inside sealed rack enclosures.

Live Bench Full-Load Functional Test

Each unit mounts to certified DIN rail test rack paired with calibrated 400W resistive load bank simulating a fully populated Compact 200 baseplate. Input voltage cycles continuously from 85VAC low-line to 265VAC high-line for 24 consecutive hours; output voltage stability, ripple amplitude, and fault LED trigger thresholds are logged hourly during the load cycle. Overload foldback and short-circuit auto-reset protection routines are manually triggered to validate automatic recovery behavior after fault clearance.

Electrical Safety Compliance Tests

500V hipot tester verifies input-to-output 3000VAC isolation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is validated across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify conducted electrical noise into sensitive DCS I/O circuits.

Configuration Verification

Factory preset 28VDC overvoltage shutdown threshold and soft-start timing values are cross-checked against official Foxboro datasheet specifications; photographs of output bank terminal labeling are stored in each unit’s serialized test file for technician reference during rack retrofits and spare replacement work.

Final QC & Anti-Static Packaging

PCB surfaces are purged with dry nitrogen compressed air to remove residual industrial dust particulate. The power supply unit is sealed inside static-dissipative vacuum bagging, labeled with serialized QC Passed sticker printed with exact full-load bench test completion date. Shock-absorbent foam lining protects heat sink fins and terminal blocks during cross-border freight transit.



Technical Risk Avoidance Engineer Guidance

Mismatched PSU Input Variant Replacement Risk

Risk: Installing P0922YC (24VDC input only) in standard mains-powered control rooms results in zero DC output voltage; technicians cannot feed 120/240VAC mains power into the DC-only variant’s input terminals, taking the entire Compact 200 baseplate offline.Prevention: Standardize spare rack inventory labeling to separate universal AC/125VDC units and DC-input P0922YC variants; cross-check site cabinet mains wiring voltage before submitting purchase orders for spare power supplies.Field Anecdote: A midwestern power plant installed a DC-input P0922YC variant in a 120VAC control rack; the full I/O baseplate lost power until maintenance swapped in the correct universal input model.

Insufficient Rack Ventilation Overheating Risk

Risk: Mounting multiple power supplies side-by-side without minimum 25mm vertical clearance blocks natural heat sink airflow; internal thermal protection triggers automatic output shutdown during summer cabinet ambient temperatures above 50°C.Prevention: Follow OEM mounting guidelines to maintain 25mm minimum vertical spacing between adjacent power supplies; install cabinet exhaust fans for enclosures operating at steady ambient temperatures over 50°C.

Parallel Redundancy Without Load Sharing Hardware Risk

Risk: Direct parallel wiring of multiple units without dedicated Foxboro OEM load-sharing adapters creates severe uneven current distribution; one single unit carries nearly 90% of total rack load and suffers accelerated thermal degradation and premature failure.Prevention: Deploy OEM parallel load-sharing hardware for redundant rack power architectures, or split Compact 200 baseplates across independent separate PSUs instead of direct parallel stacking.

Rack Power Budget Miscalculation Risk

Risk: Underestimating total rack DC load leads to sustained continuous operation above the 110% overload threshold; dual-stage foldback current limiting drops output voltage, triggering random FBM module resets and temporary loss of real-time process measurements.Prevention: Sum total power draw of all FCP, FBM, and FCM hardware on each baseplate, add a mandatory 20% overhead buffer before selecting this 400W PSU; split loads across multiple PSUs if total continuous rack draw exceeds 360W safe operating limit.

ESD Static PCB Degradation Risk

Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed regulation semiconductors on the main control PCB. Damage leaves no visible exterior defects but generates slow output voltage drift and elevated ripple noise weeks after rack commissioning.Prevention: Mandate grounded anti-static wristbands for all PSU terminal wiring and DIN rail mounting work; store spare hardware in factory static packaging until immediately before rack installation.

Practical Summary: Confirm input variant compatibility before replacement, maintain required heat sink ventilation clearance, avoid unregulated parallel stacking without load-sharing hardware, calculate full rack power load with overhead buffer, and enforce ESD handling protocols to resolve over 90% of common on-site power-related DCS troubleshooting events with this hardware.



FAQ

1. Q: Can directly replace smaller FPS240-24 PSUs on existing Compact 200 baseplates without rewiring rack terminal blocks?A: Physical DIN rail mounting and output terminal pin layout are fully interchangeable, but site load calculations must be updated to reflect the higher 400W capacity. No field wiring changes are required for direct drop-in replacement, though redundant parallel deployments require matching OEM load-sharing accessories.
2. Q: What transit lead time applies for emergency breakdown shipments of to US Gulf Coast petrochemical and power facilities?A: All surplus units ship from North American regional warehouses; standard ground transit takes 2–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
3. Q: Does the 12-month functional warranty cover unit shutdown caused by cabinet overheating or unfiltered input voltage surges?A: The warranty covers manufacturing defects in transformers, PFC circuits, and output regulation semiconductors. Hardware damage from inadequate ventilation, unprotected mains transients, or parallel stacking without load-sharing hardware falls outside warranty coverage; archived full-load bench test reports can isolate root cause analysis if failures occur post-installation.
4. Q: Can power FOUNDATION Fieldbus H1 trunk wiring and field transmitters directly from its 24VDC output terminals?A: It is not recommended for direct fieldbus trunk power feed. The PSU output is rated exclusively for Compact 200 backplane baseplate power; FF-H1 trunks require dedicated fieldbus power conditioners to maintain regulated 31.25kbps bus power specifications.
5. Q: Does the integrated conformal coating withstand continuous exposure to high-sulfur vapor in refinery control cabinets?A: The ISA S71.04 G3 coating meets standard refinery environmental requirements for mild hydrocarbon and sulfur vapor concentrations. For high-acid vapor enclosures, add sealed cabinet ventilation filtration to limit corrosive gas contact with exposed PCB and terminal hardware.
6. Q: What is the maximum number of Compact 200 FBM I/O modules a single can reliably power alongside two redundant FCP280 controllers?A: Under nominal 40°C cabinet ambient, one unit supports two FCP280 master-tracker processors plus up to eight mixed analog/discrete/serial FBM modules and two FCM2F2 fiber extenders without exceeding the 360W safe continuous operating limit.
7. Q: I need to power non-Foxboro third-party PLC hardware from this PSU’s 24VDC output terminals; will the OEM warranty remain valid?A: Factory hardware compatibility validation only covers native I/A Series Compact 200 baseplate loads. Powering uncertified third-party PLCs voids OEM compatibility validation and may void functional warranty if overload damage occurs to internal regulation circuits.
