Product Core Brief

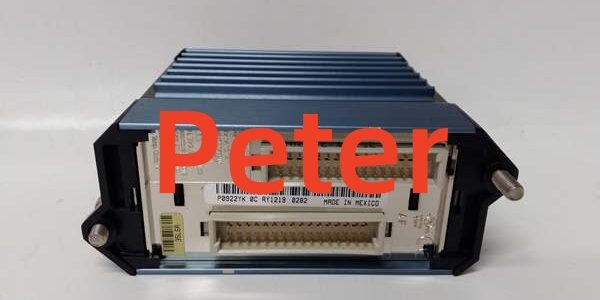

- Model: FBM201D, OEM factory part number P0922YK
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 discontinued fixed-range analog input FBM family
- Core Function: Convert external-powered 0–10VDC analog sensor signals to digital process values for FCP controllers; support software-configured signal integration and rate-of-change alarm limits
- Form Factor: Rack-mount hot-swappable fieldbus module, mates exclusively with RH922YK screw terminal termination assembly
- Key Specs: 8 fully galvanically isolated voltage input channels, independent Sigma-Delta ADC per channel, 0–10VDC fixed input range, 600VAC channel-to-backplane isolation
- Condition: New Original (New Surplus), factory anti-static sealed packaging, unopened surplus OEM inventory
- Commercial Signals: Discontinued OEM hardware with limited remaining stock; 1–3 business day lead time for North American shipments; 12-month functional warranty with full bench test documentation included
- Critical Note: No active factory production restocks available after OEM end-of-life cycle
Key Technical Specifications
| Parameter | Verified OEM Measured Value |
|---|---|
| Input Channel Layout | 8 fully galvanically isolated analog voltage inputs |
| Fixed Native Input Span | 0–10VDC DC (external sensor power only; no onboard loop supply) |
| ADC Topology | Independent Sigma-Delta converter per channel, 25ms base sample cycle |
| Static Measurement Accuracy | ±0.03% full span across 0°C to 60°C cabinet operating window |
| Temperature Drift Coefficient | 50 ppm/°C offset drift across full rated temperature band |
| Channel Isolation Dielectric Rating | 600VAC 1-minute withstand between channels and backplane bus |
| Common Mode Rejection Ratio | >100dB at 50/60Hz industrial mains EMI interference |
| Software Configurable Features | Variable signal integration time, user-defined rate-of-change alarm thresholds |
| Backplane Communication Interface | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Max 7W nominal draw from 24VDC ±5% rack supply |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for corrosive refinery/chemical atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Onboard Diagnostics | Front-panel per-channel signal status LEDs, global module watchdog fault indicator |
| Matching Termination Assembly | RH922YK compression screw-clamp TA assembly |
Product Introduction
Facilities using external-powered voltage transmitters face costly rack rework when mixing current and voltage input hardware; standard FBM201 current input cards cannot process 0–10VDC sensor outputs without external signal conversion hardware. This dedicated voltage acquisition unit eliminates extra signal conditioners by accepting raw 0–10VDC field signals directly.
This component relies on per-channel galvanic isolation to block ground loop noise originating from nearby MCC motor control centers. OEM lab testing records a 335,000-hour MTBF at steady 40°C cabinet temperature, and independent Sigma-Delta converters prevent single-sensor wiring faults from disrupting adjacent measurement channels on the shared HDLC backplane bus.
Key Selling Points & Differentiators
- Quantified voltage-sensor specialization: Purpose-built exclusively for external-powered 0–10VDC transmitters such as linear displacement sensors, pH analyzers, and turbine vibration probes; eliminates signal attenuation seen when routing voltage signals through current-input FBM variants.
- Tunable signal filtering: Adjustable integration timing suppresses high-frequency electrical noise without sacrificing scan responsiveness; rate-of-change alarms flag abnormal process swings before out-of-limit setpoints trigger full interlock trips.
- Full third-party bench validation: Every unit completes a 24-hour full-channel load cycle with calibrated 0–10VDC signal generators, 500V megger insulation testing, and firmware version logging before shipment; raw bench test footage available upon buyer request for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.0 to access full alarm configuration menus.
- Defined non-recommended deployment scope: Not suited for 4–20mA two-wire transmitters or thermocouple/millivolt sensor layouts; current inputs require FBM201, low mV signals require FBM201b instead.
- Supply and warranty transparency: New surplus inventory carries a 12-month functional warranty covering all ADC conversion circuits and bus transceivers; warranty excludes damage from miswired overvoltage field feeds or ungrounded cable trunks.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference against OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, aluminum heat sink fins, and full PCB conformal coating for oxidation, scratches, or cracked isolation barriers. Matching RH922YK termination assemblies are audited for intact anti-vibration compression screw terminals and factory wire landing labeling.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor. All 8 input channels connect to precision 0–10VDC signal generators running continuous ramp cycles for 24 consecutive hours. Rate-of-change alarm logic and variable integration filtering are validated on every channel, and HDLC redundant bus handshake stability is logged hourly during the load test window.
Electrical Safety Compliance Tests
A 500V megger verifies channel-to-backplane insulation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical interference.
Firmware Configuration Verification
Embedded analog input firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default integration time and alarm DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack replacement.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module and matching RH922YK TA base are sealed in separate anti-static vacuum bags, labeled with a serialized QC Passed sticker printed with the exact bench test completion date. Shock-absorbent foam lining protects hardware during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.0 lock advanced rate-of-change alarm configuration menus; technicians cannot set fast-response vibration monitoring thresholds for turbine sensor inputs.Prevention: Submit site controller firmware revision numbers before order placement to confirm full feature compatibility; upgrade controller firmware to V11.0 or higher if deploying vibration or high-speed voltage sensor racks.Field Anecdote: A power generation plant installed multiple of these units on V10.9 FCP270 hardware; critical turbine vibration early-warning alarms remained disabled for three weeks until the control image was updated to V11.0.
Onboard Loop Power Misconception
Risk: Field technicians attempt to connect two-wire 4–20mA transmitters expecting internal loop power; this hardware has no onboard 24V feed and will fail to read current signals entirely.Prevention: Standardize marshalling documentation to separate voltage-only slots for this unit and current-input slots for FBM201 modules.
Cable and Terminal Gauge Incompatibility
Risk: 18AWG thin unshielded wiring creates voltage drop and EMI interference on long field sensor runs, leading to noisy vibration and displacement readings.Prevention: Specify minimum 16AWG shielded twisted pair cable with single-point chassis grounding at the RH922YK TA assembly only; avoid multiple ground taps near MCC motor cabinets.
Rack Power Budget Miscalculation
Risk: Undersized 24VDC rack power supplies cannot sustain full backplane bus load from fully populated analog racks; measurement drift and intermittent bus timeouts occur during peak signal sampling cycles.Prevention: Calculate total rack DC draw with a 20% overhead buffer; four fully populated assemblies consume roughly 28W combined power at maximum channel sampling load.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard ADC semiconductors. Damage leaves no visible exterior defects but generates random single-channel measurement drift weeks after installation.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions, separate voltage/current I/O rack slot layouts, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running FBM201 4–20mA current input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but full site rework is mandatory. FBM201 supplies onboard loop power and reads current spans, while this hardware accepts only externally powered 0–10VDC signals; workstation channel scaling, alarm limits, and field terminal wiring must be fully rebuilt to standardize either voltage or current input architecture. Mixed deployments create inconsistent noise filtering and fault reporting behavior during bus communication disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover channel failures caused by overvoltage spikes from miswired field transmitters?A: The warranty covers manufacturing defects in ADC conversion circuits, bus transceivers, and isolation barriers. Hardware damage from unregulated field overvoltage, reverse polarity wiring, or ungrounded field cables falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I mix externally powered 0–5VDC and 0–10VDC sensors on separate channels of one unit?A: The hardware’s fixed 0–10VDC native span supports scaled reading of 0–5VDC signals via workstation channel configuration, but all field sensors require independent external power supplies. No onboard loop excitation is available for any channel.
- Q: Does the onboard signal filtering eliminate all high-frequency vibration noise without workstation tuning?A: The shortest integration time setting delivers minimal noise suppression; high-speed turbine vibration monitoring requires extended integration periods to smooth electrical interference without losing transient spike detection.
- Q: What termination assembly part number pairs with this hardware for standard voltage sensor field wiring marshalling?A: The matching anti-vibration compression screw-clamp TA assembly is . Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and channel isolation barrier alignment matched to the module’s signal circuits.
- Q: I need to capture millivolt thermocouple signals from furnace temperature probes—can this hardware process low mV-level inputs alongside 0–10VDC vibration sensors?A: It is not recommended for millivolt thermocouple measurement use cases. The fixed 0–10VDC input span cannot resolve low mV thermal signals; dedicated FBM201b millivolt input modules are purpose-built for thermocouple signal acquisition instead.
