Product Core Brief
- Model: FBM214B, OEM factory part number P0927AH
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 discontinued HART analog input I/O subsystem
- Core Function: Capture isolated 4–20mA sensor signals, supply per-channel loop power, and act as HART master to pull device diagnostics, calibration data, and fault alerts from smart transmitters
- Form Factor: Rack-mount hot-swappable fieldbus module, paired with dedicated screw terminal TA assemblies for field wiring termination
- Key Specs: 8 fully galvanically isolated input channels, independent per-channel HART FSK modems, 15-bit Sigma-Delta ADC, 37mA max isolated 24V loop feed per channel
- Condition: New Original (New Surplus), factory anti-static sealed packaging, unpopulated rack slot stock
- Commercial Signals: Limited remaining OEM surplus inventory; 1–3 business day lead time for US/Canada shipments; 12-month functional warranty with full bench test documentation included
- Critical Note: ⚠️ Discontinued OEM hardware; no active factory production restocks available
Key Technical Specifications

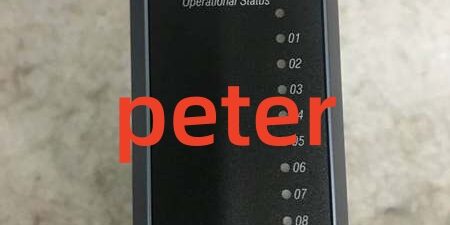

| Parameter | Verified OEM Measured Value |
|---|---|
| Input Channel Count | 8 fully galvanically isolated analog inputs |
| Primary Signal Band | 4–20mA DC, supports superimposed HART FSK digital signaling |
| Supported HART Revisions | HART 5, HART 6, HART 7; burst mode data transmission not supported |
| ADC Architecture | Independent 15-bit Sigma-Delta converter per channel |
| Static Measurement Accuracy | ±0.03% full scale across 4–20mA operating window |
| Temperature Drift Coefficient | 50 ppm/°C measurement offset drift |
| Per-Channel Loop Supply | Isolated 24VDC ±10%, maximum 37mA field transmitter feed |
| Channel Isolation Rating | 600VAC channel-to-channel / channel-to-backplane 1-minute dielectric withstand |
| HART Cable Distance Limit | 3030 meters (10,000 ft) HCF_SPEC-54 compliant shielded twisted pair |
| Noise Rejection Performance | >100dB CMRR at 50/60Hz industrial mains interference |
| Backplane Communication Bus | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Maximum 7W at nominal 24VDC rack supply voltage |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for corrosive refinery/chemical atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Onboard Diagnostics | Front-panel per-channel activity/fault LED indicators, hardware watchdog timer |
Product Introduction
Unreliable mixed analog/HART rack layouts create blind spots in process diagnostics; standard non-HART input hardware cannot access sensor calibration logs or predictive failure flags without separate multiplexer hardware. This unit eliminates that extra equipment cost by integrating dedicated HART communication circuits on every isolated input channel.
This component delivers independent 24V loop power for two-wire transmitters, removing the need for external field power baluns for internally powered sensor layouts. OEM lab testing records a 322,000-hour MTBF at steady 40°C cabinet operating temperature, and full channel-to-channel galvanic isolation prevents single-sensor shorts from disrupting adjacent measurement loops on the shared backplane bus.
Key Selling Points & Differentiators
- Quantified multi-device compatibility: Each slot mixes standard passive 4–20mA transmitters and HART-enabled instruments without signal baluns; each channel processes two digital HART messages per second for real-time diagnostic visibility.
- Superior noise suppression: >100dB common mode rejection blocks EMI from nearby MCC motor cabinets, a consistent pain point reported in refinery and pulp plant field deployments using non-isolated group-input cards.
- Third-party validated bench screening: Every unit completes a 24-hour full-channel load cycle with calibrated HART transmitter simulators, 500V megger insulation testing, and firmware version logging before shipment; raw test cycle footage available upon buyer request for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.1 to load full HART device descriptor libraries, older controller builds will restrict diagnostic polling functions.
- Defined non-recommended deployment scope: Not suited for pulse input flow meter applications requiring fast edge detection; pulse counting use cases require separate FBM pulse input modules instead.
- Supply and warranty transparency: New surplus stock carries a 12-month functional warranty covering all analog conversion and HART modem circuit failures; warranty excludes damage from field overvoltage or miswired external power feeds.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference against OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, aluminum heat sink fins, and full PCB conformal coating for oxidation, scratches, or cracked isolation barriers. Matching termination assemblies are audited for intact anti-vibration screw terminals and factory wire landing markings.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor. All 8 input channels connect to precision 4–20mA signal generators paired with HART smart transmitter simulators, running continuous signal ramp cycles for 24 consecutive hours. HART command read/write functionality is validated on every channel, and HDLC redundant bus handshake stability is logged hourly during the load test window.
Electrical Safety Compliance Tests
A 500V megger verifies channel-to-backplane insulation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical noise.
Firmware Configuration Verification
Embedded HART stack firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default fieldbus baud rate DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack replacement.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module and matching TA base are sealed in separate anti-static vacuum bags, labeled with a serialized QC Passed sticker printed with the exact bench test completion date. Shock-absorbent foam lining protects hardware during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.1 fail to load HART device descriptor libraries, creating intermittent diagnostic read timeouts and missing sensor fault alarms.Prevention: Share site controller firmware revision numbers before order placement to confirm full feature compatibility; schedule controller firmware upgrades if deploying mixed HART/analog transmitter racks.Field Anecdote: A chemical processing facility installed multiple units on V11.0 FCP270 hardware; site technicians lost access to valve positioner predictive diagnostics for three weeks until the control image was updated to V11.1.
External Transmitter Power Balun Omission
Risk: External-powered field sensor layouts require RH903SV cable baluns to suppress HART signal crosstalk; omitting these baluns generates garbled digital data across adjacent rack channels.Prevention: Specify matching OEM balun hardware for all externally powered transmitter wiring runs longer than 20 meters.
Cable and Terminal Gauge Incompatibility
Risk: 18AWG thin twisted pair wiring creates excessive voltage drop across long field runs, reducing HART signal amplitude and triggering intermittent communication loss.Prevention: Deploy minimum 16AWG HART-certified shielded twisted pair cable with single-point chassis grounding at the TA assembly only; avoid multiple ground taps along field cable trunks near motor control centers.
Rack Power Budget Miscalculation
Risk: Undersized 24VDC rack power supplies cannot sustain full loop power draw from populated racks; measurement drift and HART polling failures occur during peak bus load cycles.Prevention: Calculate total rack DC draw with a 20% overhead buffer; four fully populated assemblies consume roughly 28W combined power at maximum channel loop feed output.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard HART modems. Damage leaves no visible exterior defects but generates random single-channel communication failures weeks after installation.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions, deploy OEM signal baluns for external-powered sensors, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running FBM201 non-HART analog input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but full site rework is mandatory. FBM201 lacks onboard HART modems and per-channel loop power; workstation channel scaling, HART device mapping, and field terminal wiring must be fully rebuilt to standardize either HART-enabled or basic analog input architecture. Mixed deployments create inconsistent diagnostic reporting behavior during bus communication disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover channel failures caused by shorted field transmitter wiring?A: The warranty covers manufacturing defects in ADC conversion circuits, bus transceivers, and HART modems. Hardware damage from miswired field power, overvoltage spikes, or ungrounded field cables falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I run a mix of internally loop-powered and externally powered transmitters on separate channels of one unit?A: Yes, the hardware supports mixed layouts across its 8 isolated channels. Externally powered sensors require RH903SV balun hardware to eliminate HART signal crosstalk, while internal two-wire transmitters use the module’s native 24V loop feed with no extra accessories needed.
- Q: Does the onboard HART stack support burst-mode high-speed data transmission from smart field instruments?A: Burst mode functionality is not implemented in the embedded firmware. The hardware processes HART universal, common, and device-specific commands at a maximum rate of two digital messages per channel per second. For continuous high-speed HART data collection, dedicated FOUNDATION Fieldbus gateway hardware is recommended instead.
- Q: What termination assembly part number pairs with this hardware for standard field wiring marshalling?A: The matching anti-vibration screw-clamp TA assembly is RH914SQ. Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and isolation barrier alignment matched to the module’s signal circuits.
- Q: I need to measure pulse output flow meter signals—can this hardware capture pulse edge data alongside analog 4–20mA readings?A: It is not recommended for pulse input measurement use cases. The fixed 100ms channel update rate creates excessive timing lag for fast pulse frequency detection; dedicated FBM pulse input modules are purpose-built for flow meter pulse signal acquisition instead.
