Product Core Brief

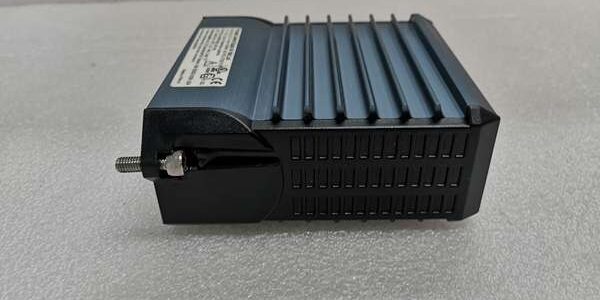

- Model: RH916TA FBM242
- Brand: FOXBORO (Schneider Electric EcoStruxure Foxboro)
- Series: I/A Series Compact 200 FBM discrete I/O family
- Core Function: Translate DCS digital control commands to external-powered discrete field loads with per-channel galvanic isolation
- Product Type: Rack-mount hot-swappable fieldbus discrete output FBM + termination assembly
- Key Specs: 16 isolated output channels | 2 A max per channel | multi-AC/DC load voltage support | ⚠️ EOL — limited stock remaining, Condition: New Surplus Original
Product Introduction
FOXBORO is a paired discrete output assembly built for I/A Series and Foxboro Evo DCS to switch external-power solenoids, motor starters, and alarm relays. The termination base integrates fusing and terminal landing for all 16 field circuits.This assembly differs from internal-sourcing FBM240 modules by requiring separate field excitation, with OEM measured MTBF of 312,000 hours at 40 °C cabinet ambient. Independent channel isolation stops single-load shorts from disrupting adjacent control loops on the backplane.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Configuration | 16 fully galvanically isolated discrete output circuits |
| Supported External Load Voltages | 15–60 V DC, 120 V AC / 125 V DC, 240 V AC |
| Per-Channel Continuous Current Rating | 2 A maximum resistive load |
| Module Operating Supply | 24 V DC (+5 %, -10 %), max 3 W idle power draw |
| Full-Load Heat Dissipation | 6.5 W when all 16 channels run at 2 A output |
| Backplane Fieldbus | Redundant 2 Mbps proprietary I/A Series module bus |
| Isolation Rating | 1000 VAC channel-to-backplane withstand per circuit |
| Onboard Logic Support | Discrete I/O block execution + basic ladder logic processing |
| Fail-Safe Mode | Software-configurable off-state for safety interlock loads |
| Operating Temperature Range | -20 °C to +70 °C operational; -40 °C to +85 °C storage |
| Environmental Coating | ISA S71.04 G3 full PCB conformal coating |
| Hazardous Certifications | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting) |
| Termination Base Hardware | screw-clamp TA with integrated circuit fusing lugs |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers on both card and base to OEM batch logs; inspect terminal screw threads, gold backplane connectors, and PCB coating for scratches or corrosion. Reject assemblies with cracked isolation barriers.
- Live Functional Test: Mate the two pieces on a certified Compact 200 backplane, connect multi-voltage resistive load banks to the terminals, run a 26-hour continuous switching cycle. Log channel heat rise and confirm redundant 2 Mbps Fieldbus handshake to an FCP280 controller.
- Electrical Parameter Test: Use a 500 V Megger to test channel-to-backplane insulation resistance (minimum pass threshold 10 MΩ); verify chassis ground continuity to DIN rail mounting lugs on the base.
- Firmware Verification: Pull embedded FBM firmware revision via I/A engineering workstation; photograph fuse terminal layout and factory DIP switch default positions for post-delivery reference.
- Final QC & Packaging: Purge FBM and TA PCB surfaces with dry nitrogen to remove particulate buildup; seal both components in separate anti-static vacuum bags, apply matching QC Passed stickers stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: Older FCP270 controller firmware revisions lack support for multi-voltage load configuration on the module. Confirm controller firmware rev before ordering spare assemblies — site DCS upgrade schedules often lag spare component stock.❗ DIP Switch / Jumper Misconfiguration: Factory default backplane jumpers disable redundant Fieldbus paths. The second header on the base sets external AC/DC load voltage range; misalignment creates uncommanded load dropouts.❗ Terminal / Cable Incompatibility: Thin 16 AWG wiring on high-current terminals creates excessive voltage drop at full 2 A channel load. Use minimum 14 AWG stranded copper for all field load runs longer than 15 m.❗ Power Supply Mismatch: Calculate total rack DC draw with 20% headroom. Four of these paired assemblies on one Compact 200 backplane pull 13 W combined; undersized rack power supplies trigger intermittent channel switching faults under peak interlock cycling.❗ ESD Damage: Always deploy an anti-static mat in low-humidity winter cabinet environments. Static discharge to the exposed gold backplane connectors destroys optical isolation chips with no visible exterior damage to the FBM or base.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- FCP280 Controller → : Direct drop-in replacement — no backplane or TA wiring edits required
- FCP270 Controller → : Direct drop-in replacement — requires minimum controller firmware v11.1
- FBM240 Internal-Source DO Module → : Needs Adaptation — field excitation power wiring must be added to terminals
- FBM232 P0926GW Gateway → : Incompatible — communication gateway vs discrete output hardware function split
- DeltaV M-Series Carrier → : Incompatible — proprietary 2 Mbps I/A Fieldbus backplane pinout mismatch
- Experion PKS I/O Chassis → : Incompatible — no native Compact 200 backplane support
Benchmarks
- Discrete output switching cycle: 45 ms (simulated full load, all 16 channels cycling 120 V AC relay loads)
- Comms throughput: 2 Mbps (redundant I/A proprietary Fieldbus backplane protocol)
- Fail-safe state activation latency: < 8 ms after controller fault detection
